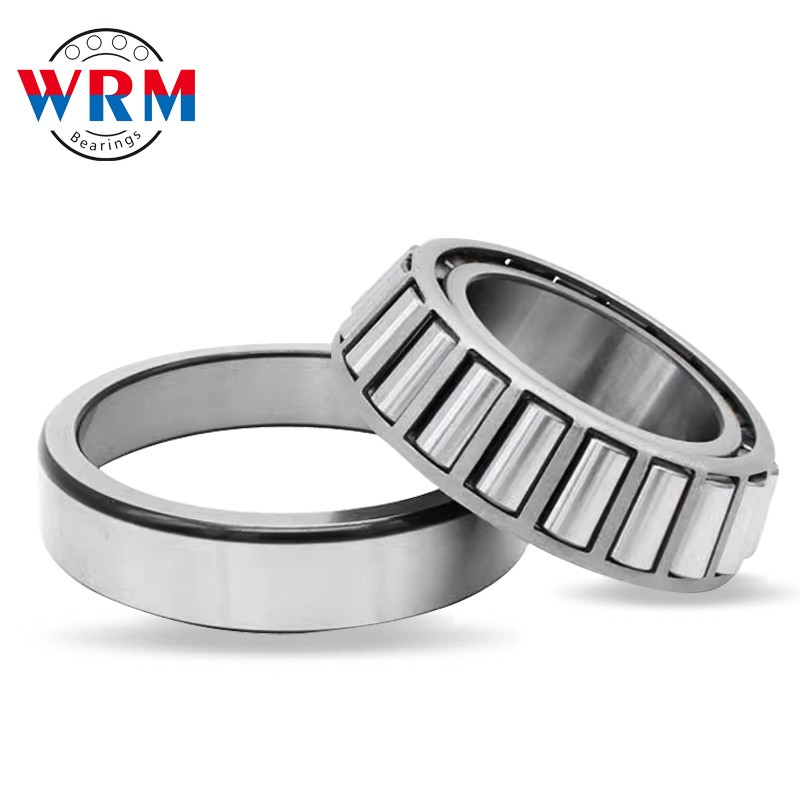

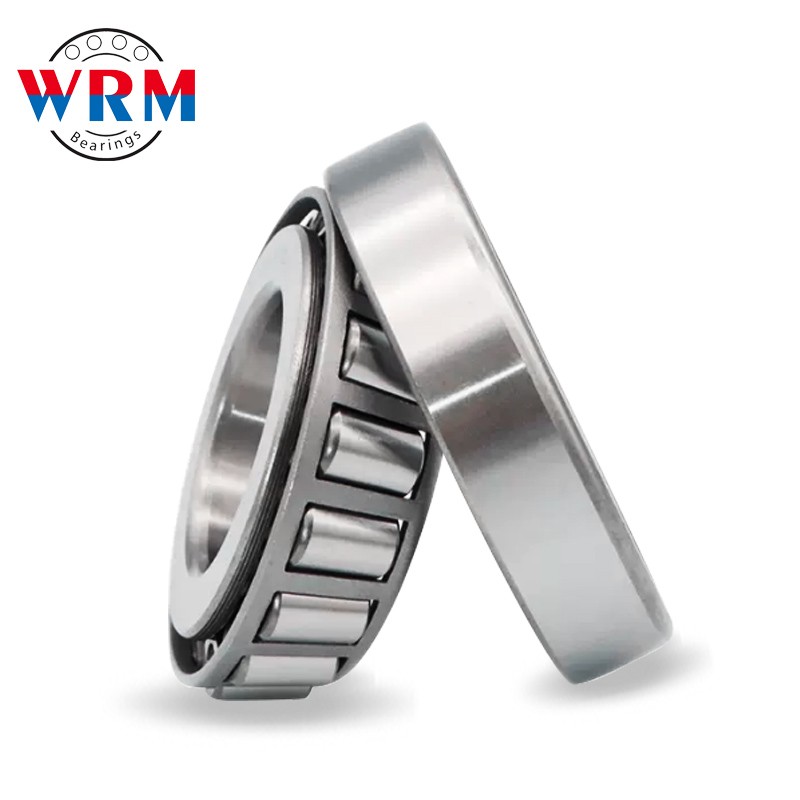

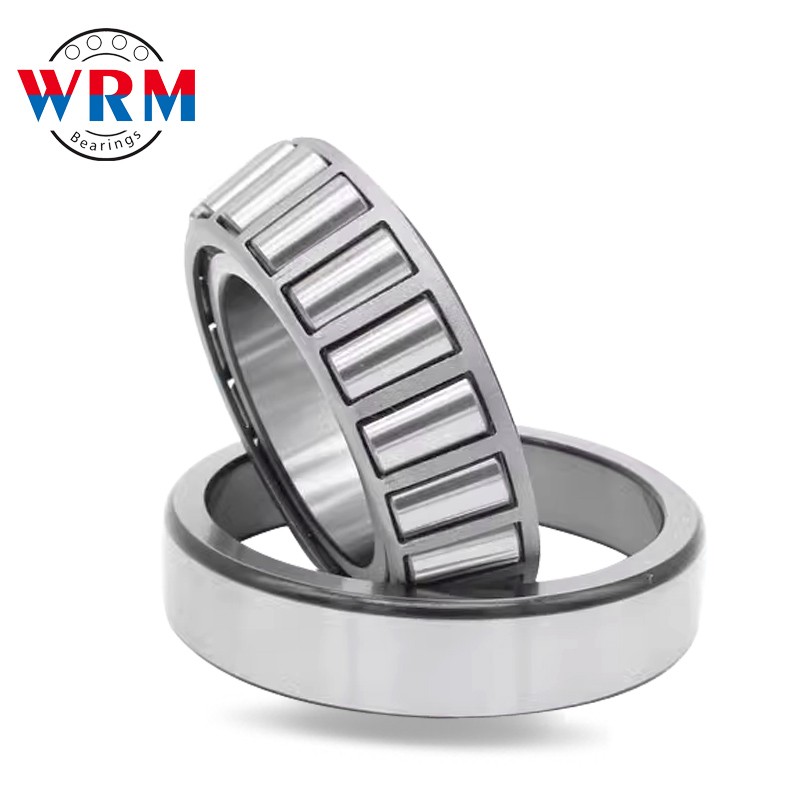

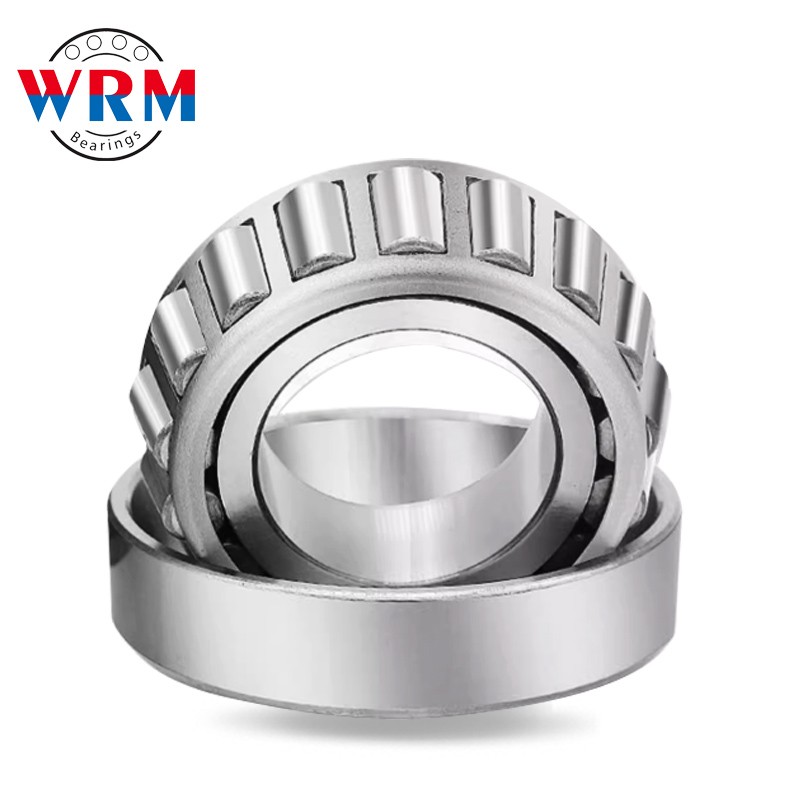

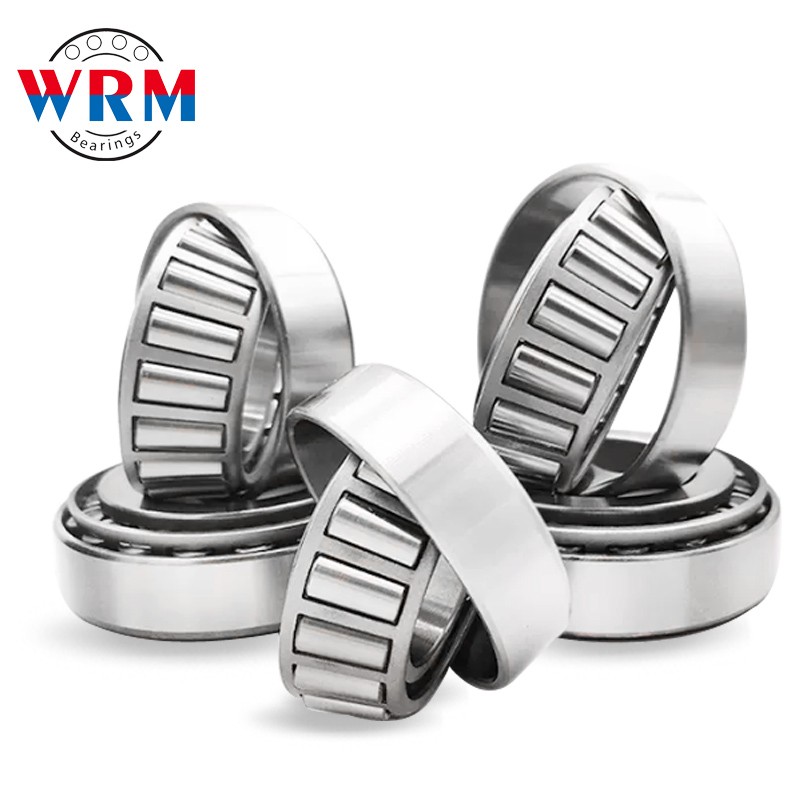

Tapered roller bearing 30310 series

Tapered roller bearing 30310 series

Tapered roller bearing 30310 series

Product name：Tapered roller bearing
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Tapered roller bearing.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
30310	7310E	50	110	27	130	158	3800	4800	1.28
30311	7311E	55	120	29	152	188	3400	4300	1.63
30312	7312E	60	130	31	170	210	3200	4000	1.99
30313	7313E	65	140	33	195	242	2800	3600	2.44
30314	7314E	70	150	35	218	272	2600	3400	2.98
30315	7315E	75	160	37	252	318	2400	3200	3.57
30316	7316E	80	170	39	278	352	2200	3000	4.27
30317	7317E	85	180	41	305	388	2000	2800	4.96
30318	7318E	90	190	43	342	440	1900	2600	5.8
30319	7319E	95	200	45	317	368	2000	2600	6.32
30320	7320E	100	215	47	344	400	1800	2400	7.76
30321	7321E	105	225	49	371	432	1700	2300	8.74
30322	7322E	110	240	50	407	475	1600	2100	10.4
30324	7324E	120	260	55	505	611	1500	2000	13.7
30326	7326E	130	280	58	640	855	1100	1500	17.3
30328	7328E	140	300	62	750	950	1000	1400	21.4
30330	7330E	150	320	65	802	1090	950	1300	25.2
30332	7332E	160	340	68	878	1190	900	1200	29.5
30334	7334E	170	360	72	995	1370	850	1100	35.6
30336	7336E	180	380	75	901	1110	940	1300	39.7
30338	7338E	190	400	78	1200	1500	930	1250	46.2
30340	7340E	200	420	80	1400	2000	900	1200	53.5
30344	7344E	220	460	88	1600	2500	880	1150	69
30348	7348E	240	500	105	1870	2960	850	1100	88.9
30352	7352E	260	540	114	2115	2940	670	900	108

Tapered roller bearing4.jpg
