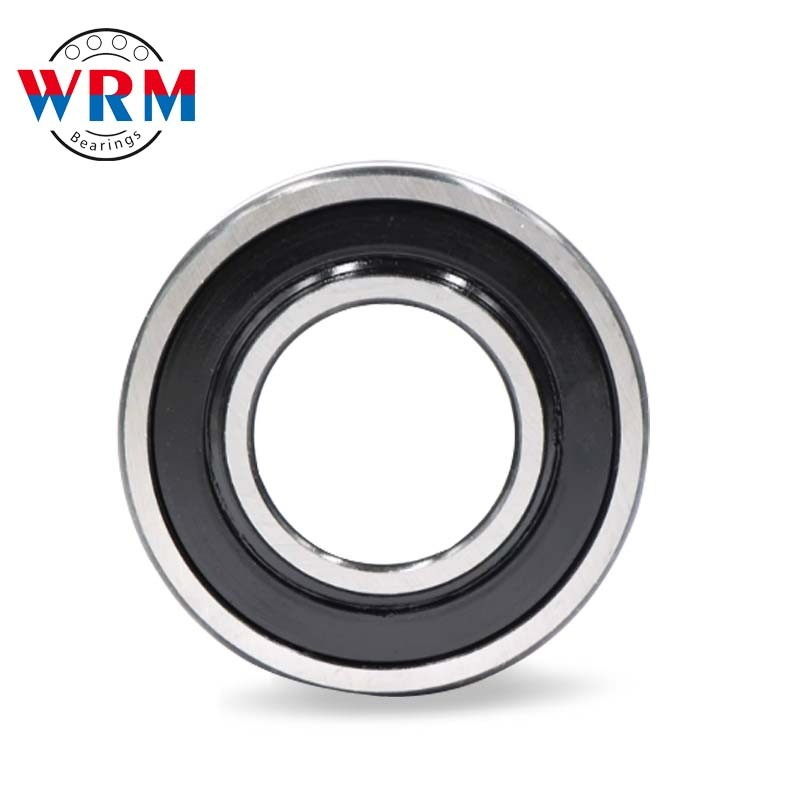

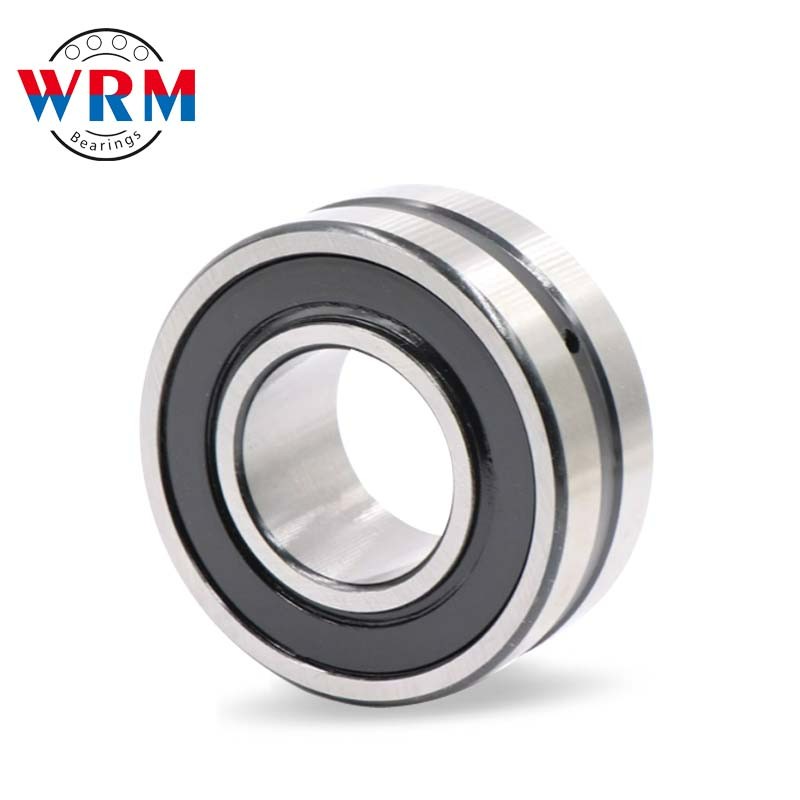

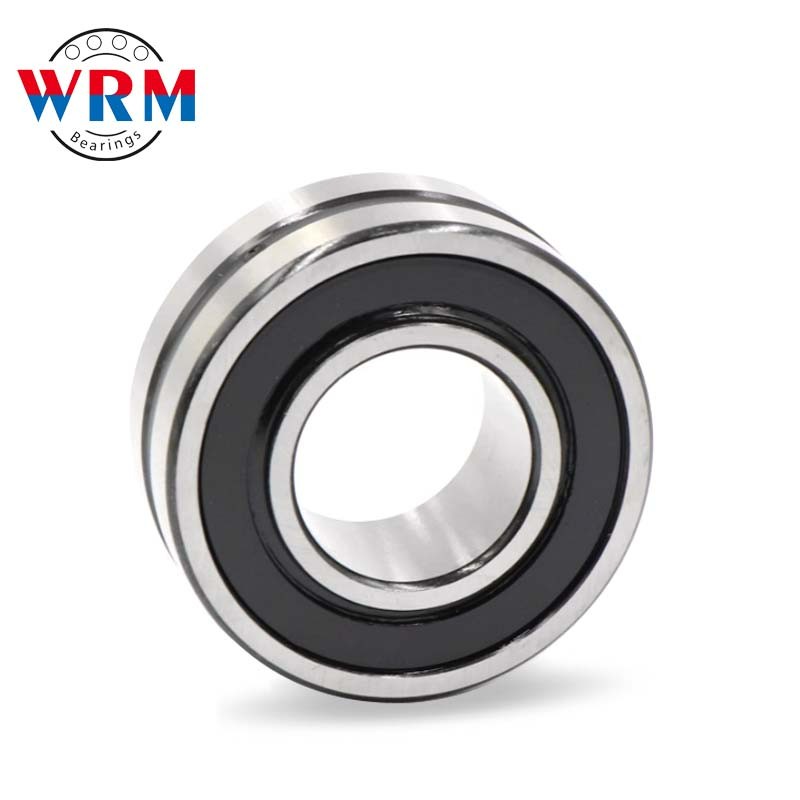

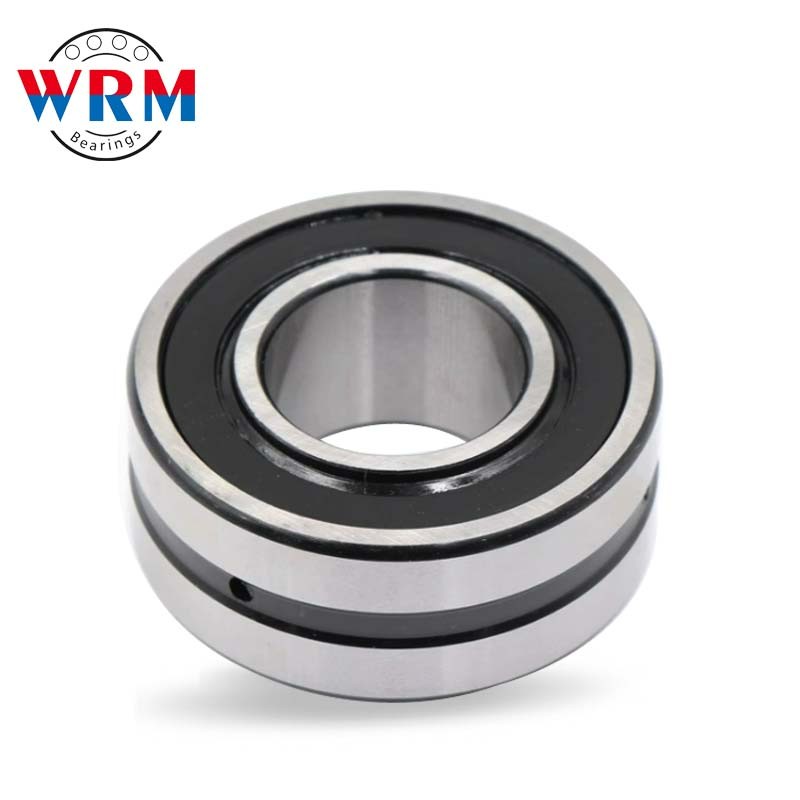

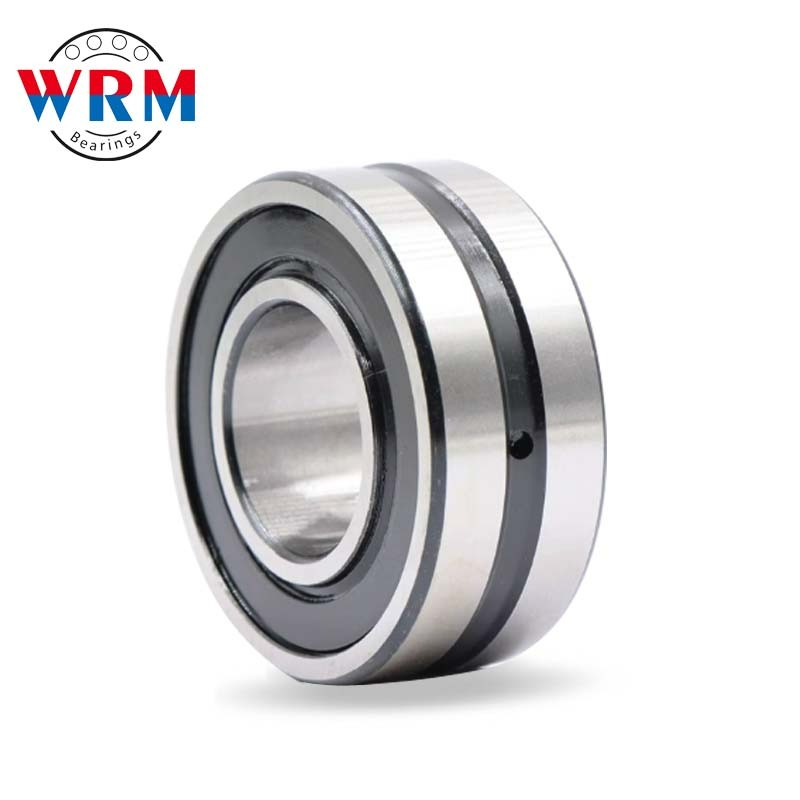

Sealed Spherical roller bearing 24013 series

Sealed Spherical roller bearing 24013 series

Sealed Spherical roller bearing 24013 series

Product name：Spherical roller bearing
cage: 2CS 2RS
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Spherical roller bearingcage.jpg 图纸.jpg

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
24013	65	100	35	750	900	4200	3200	0.95
24015	75	115	40	600	750	4000	3000	1.48
24020	100	150	50	400	550	3750	2700	3.02
24022	110	170	60	420	630	3500	2500	5.1
24024	120	180	60	450	690	3450	2360	5.83
24026	130	200	69	570	860	3100	2130	8.05
24028	140	210	69	590	930	2950	1950	8.55
24030	150	225	75	680	1090	2750	1790	9.39
24032	160	240	80	770	1240	2550	1660	13.2
24034	170	260	90	940	1480	2380	1540	17.8
24036	180	280	100	1130	1770	2200	1420	26.6
24038	190	290	100	1160	1860	2140	1330	22.9
24040	200	310	109	1350	2150	2010	1240	31.3
24044	220	340	118	1620	2600	1830	1090	39.1
24048	240	360	118	1670	2850	1710	980	41.61
24052	260	400	140	1790	3740	1500	850	62.4
24056	280	420	140	1910	3980	1350	800	65.8
24060	300	460	160	2360	5010	1200	700	94.1

Spherical roller bearing1.jpg

PREVIOUS：Sealed Spherical roller bearing 23120 series

NEXT：Sealed Spherical roller bearing 22310 series

Tags: Spherical roller bearing roller bearing
