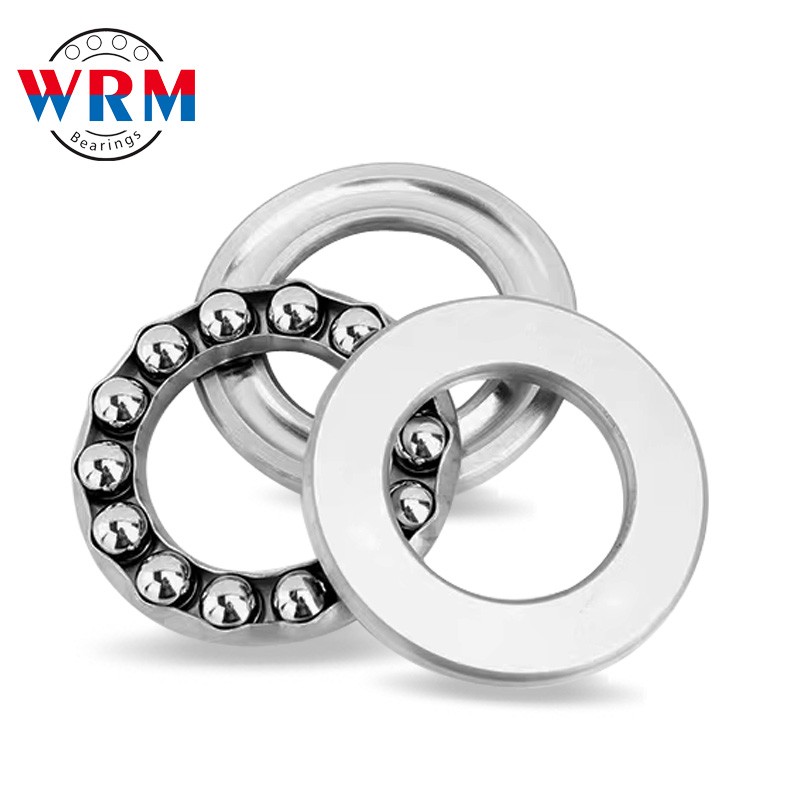

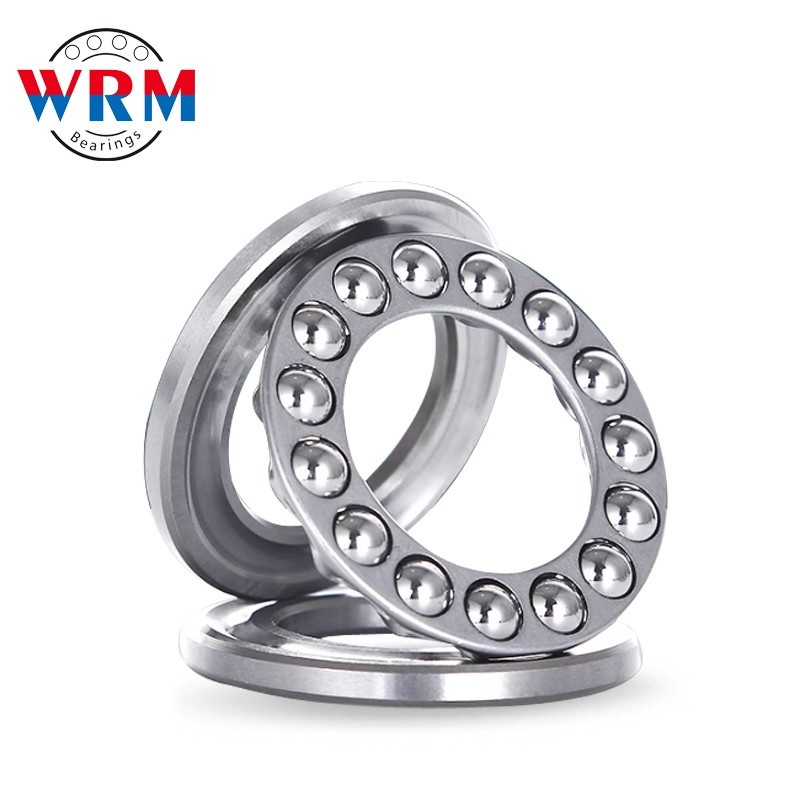

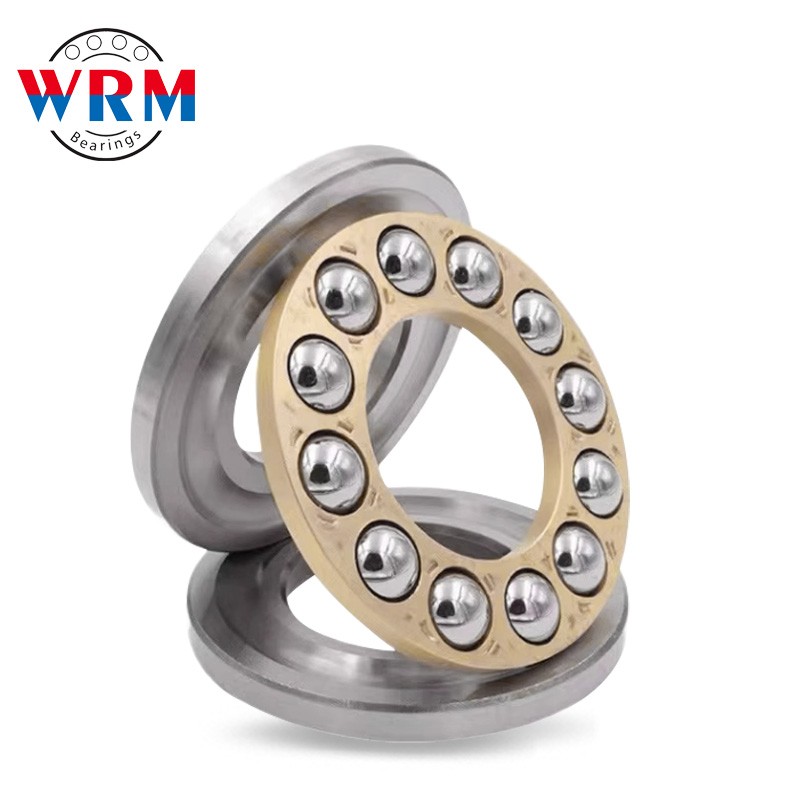

Thrust ball bearing 51200 series

Thrust ball bearing 51200 series

Thrust ball bearing 51200 series

Product name：Thrust ball bearing
cage:M MP
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

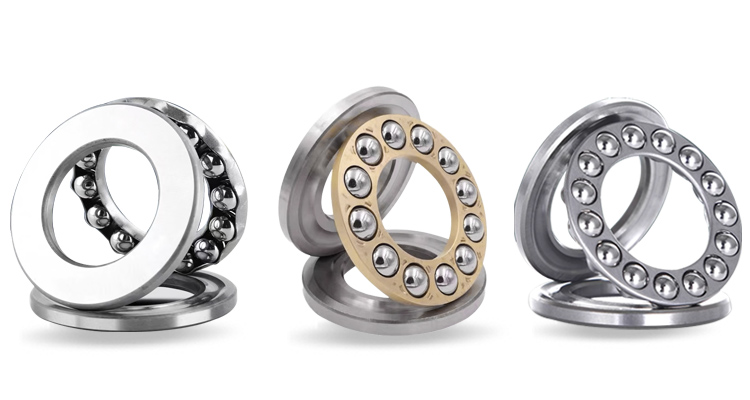

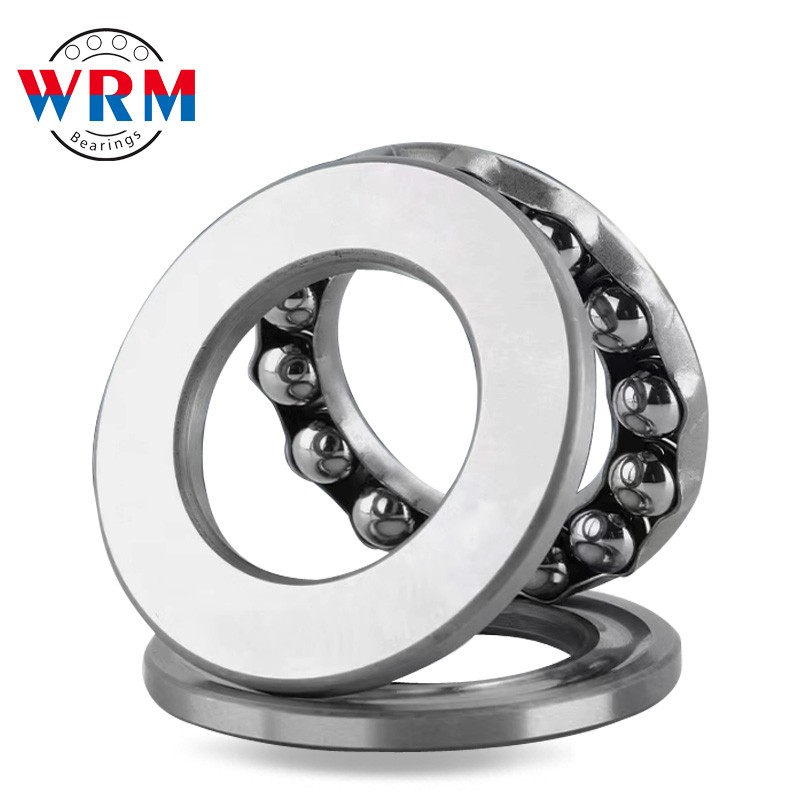

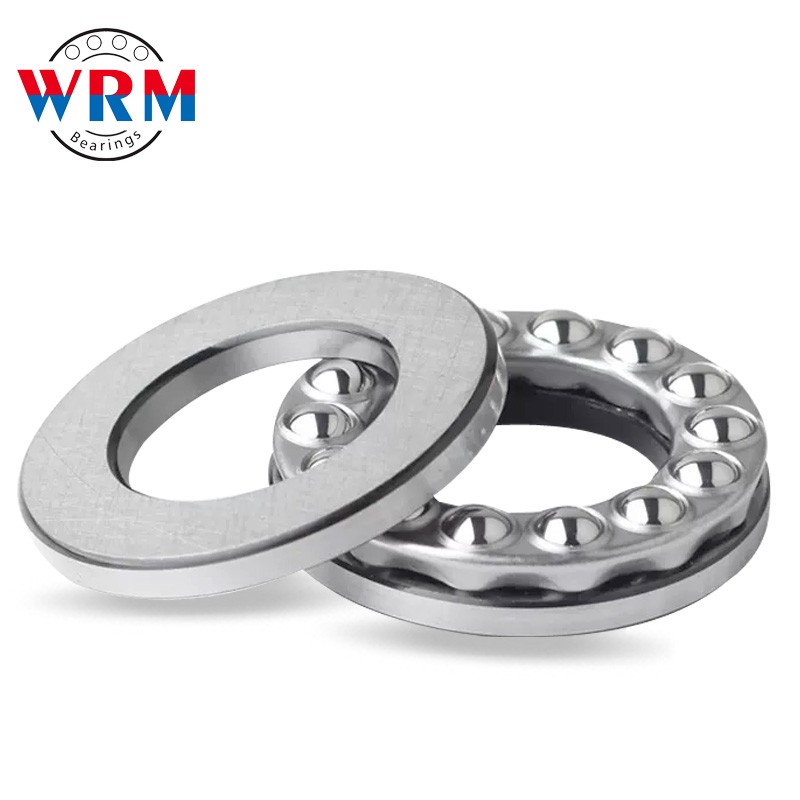

Thrust ball bearing4.jpg Thrust ball bearing1.jpg

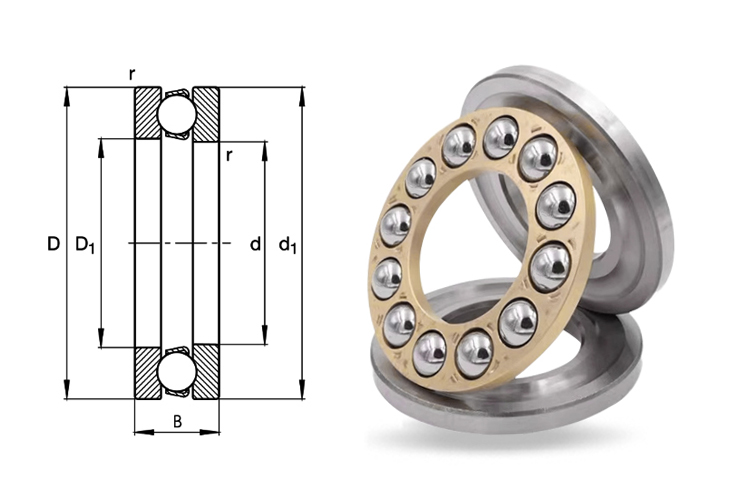

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
51210	8210	50	78	22	48.5	111	2300	3600	0.39
51211	8211	55	90	25	69.4	159	2100	3200	0.61
51212	8212	60	95	26	73.6	179	1900	3000	0.69
51213	8213	65	100	27	74.8	189	1900	2900	0.77
51214	8214	70	105	27	73.6	189	1800	2800	0.81
51215	8215	75	110	27	77.4	209	1800	2700	0.86
51216	8216	80	115	28	78.5	218	1700	2600	0.95
51217	8217	85	125	31	92.3	251	1500	2300	1.29
51218	8218	90	135	35	117	326	1400	2100	1.77
51220	8220	100	150	38	147	410	1200	1900	2.36
51222	8222	110	160	38	148	431	1200	1800	2.57
51224	8224	120	170	39	154	472	1100	1700	2.86
51226	8226	130	190	45	203	622	970	1500	4.09
51228	8228	140	200	46	215	669	940	1450	4.46
51230	8230	150	215	50	244	768	840	1300	5.64
51232	8232	160	225	51	247	803	810	1250	6.53
51234	8234	170	240	55	269	874	750	1150	8.12
51236	8236	180	250	56	294	986	710	1100	8.68
51238	8238	190	270	62	298	1010	650	1000	11.7
51240	8240	200	280	62	314	1110	620	950	12.2
51244	8244	220	300	63	342	1200	580	900	13.5
51248	8248	240	340	78	442	1200	520	800	23.1
51256	8256	280	380	90	498	1300	600	750	27.8
51260	8260	300	420	95	585	1500	630	700	42
51264	8264	320	440	95	572	1800	680	650	45
51268	8268	340	460	96	605	2000	750	600	48.5
51272	8272	360	500	110	741	2200	800	550	70
51276	8276	380	520	112	728	2500	950	500	73
51280	8280	400	540	112	761	2800	1000	450	75.5
51284	8284	420	580	130	884	3000	1200	430	110
51288	8288	440	600	130	904	3500	1500	400	115
51292	8292	460	620	130	923	3800	1800	380	120
51296	8296	480	650	135	995	4000	2000	350	134

Thrust ball bearing5.jpg

PREVIOUS：Angular Contact Ball Bearing 7200 series

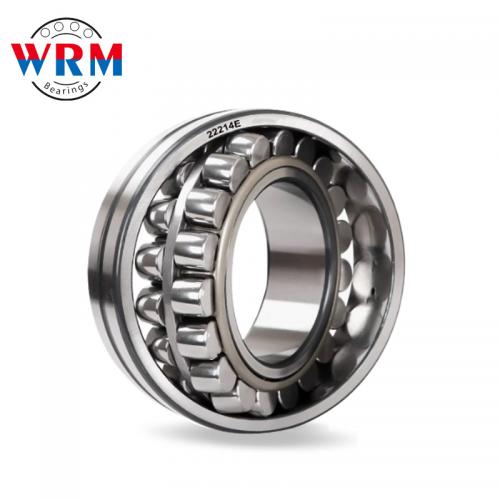

NEXT：Spherical roller bearing 22210 series
