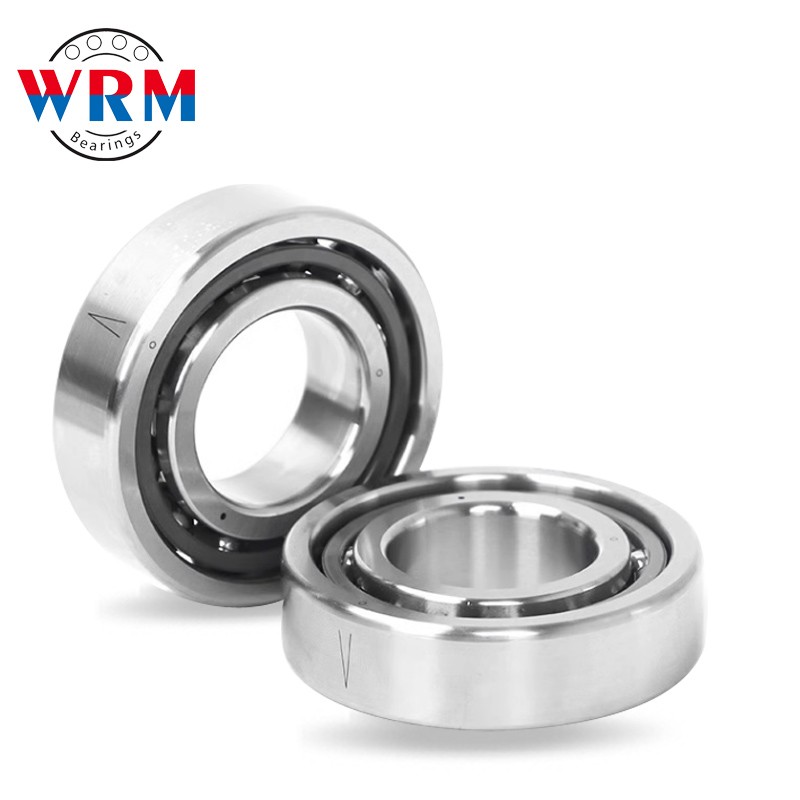

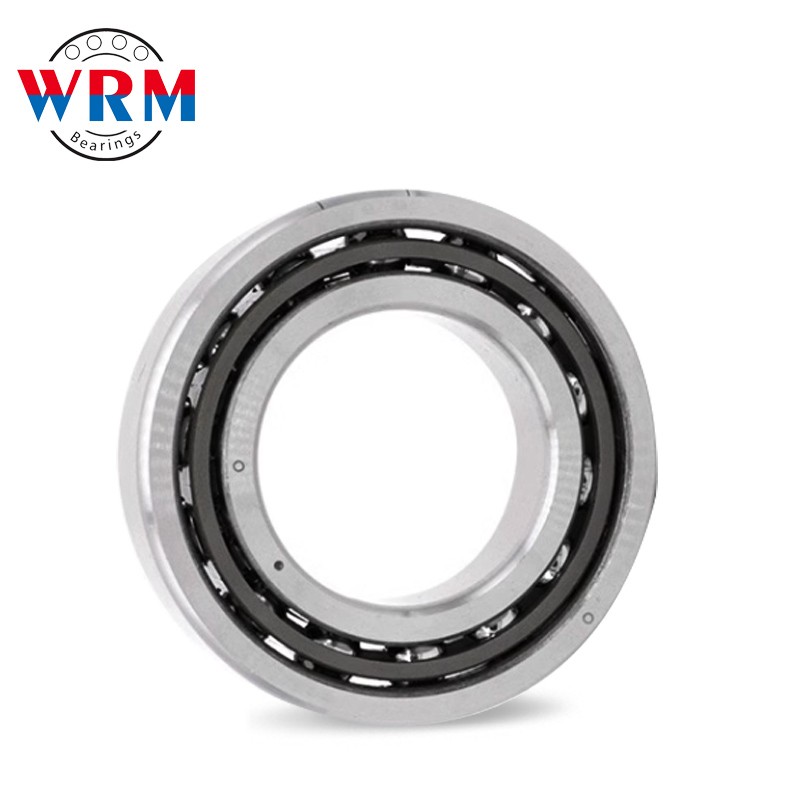

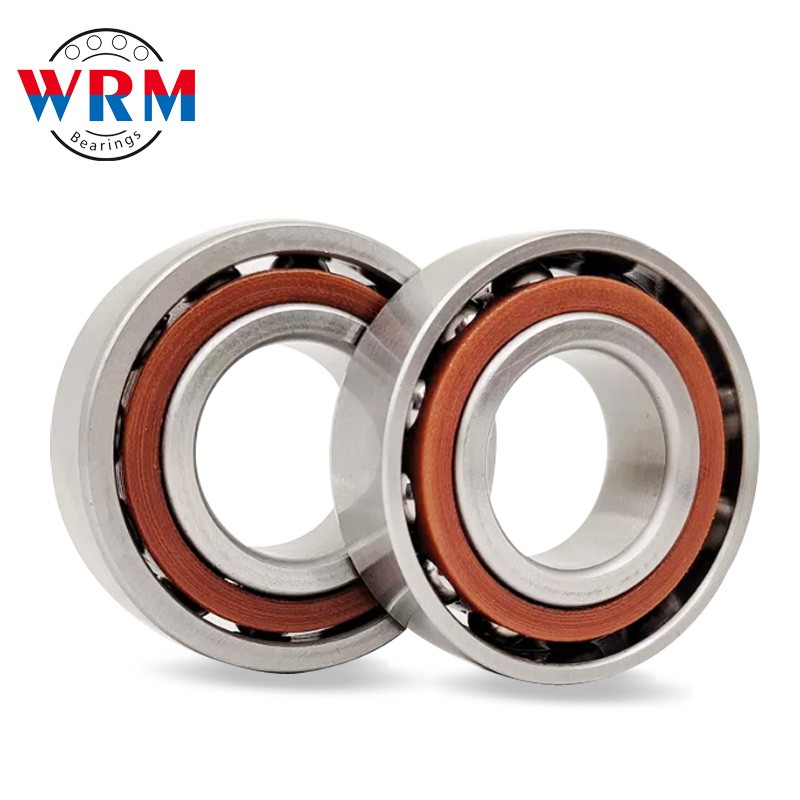

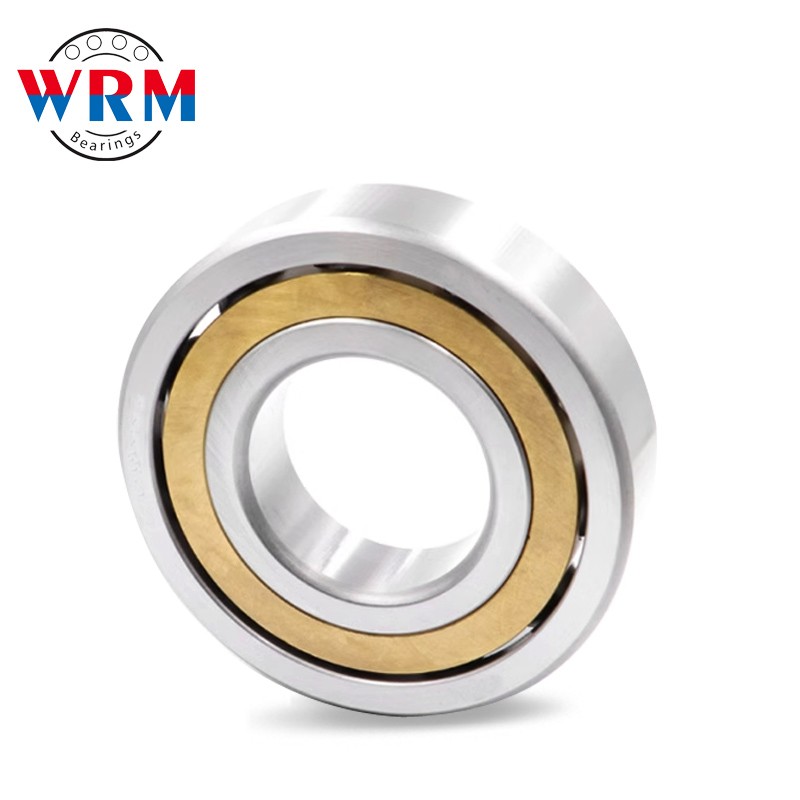

Angular Contact Ball Bearing 7000 series

Product name:Angular Contact Ball Bearing
cage:ACM AC B BM BGM BEP BEGAP BCBM TVP UA UO  AM  AW CTYNSUL
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Angular contact ball bearing3.jpg

Designation	Old model	Principal Diension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
7010	46110	50	80	16	25.3	20.5	6700	9000	0.25
7011	46111	55	90	18	35.5	26.5	6000	8000	0.38
7012	46112	60	95	18	37	31.3	5600	7500	0.4
7013	46113	65	100	18	38	33.6	5300	7000	0.43
7014	46114	70	110	20	45.8	40.9	5000	6700	0.6
7015	46115	75	115	20	47.5	43.3	4800	6300	0.63
7016	46116	80	125	22	57.5	51	4500	6000	0.85
7017	46117	85	130	22	55	52.8	4300	5600	0.89
7018	46118	90	140	24	71.7	68.7	4000	5300	1.15
7019	46119	95	145	24	69.8	69.1	3800	5000	1.2
7020	46120	100	150	24	69	69.7	3800	5000	1.25
7021	46121	105	160	26	80.9	72.2	3600	4800	1.6
7022	46122	110	170	28	98.5	93.9	3400	4300	1.95
7024	46124	120	180	28	103.5	104.5	2800	3800	2.1
7026	46126	130	200	33	122.4	127.8	2600	3400	3.33
7028	46128	140	210	33	145.3	152.8	2400	3200	3.46
7030	46130	150	225	35	174.2	184.9	2200	3000	4.8
7032	46132	160	240	38	189.6	209	2000	2800	5.26
7034	46134	170	260	42	229	180	2200	2600	6.41
7036	46136	180	280	46	240	295	2000	2550	9.78
7038	46138	190	290	46	255	215	1800	2390	10.299
7040	46140	200	310	51	310	270	1600	2270	11.453
7044	46144	220	340	56	255	355	2000	2000	18
7048	46148	240	360	56	260	375	1900	1900	19
7052	46152	260	400	65	332	510	1700	1700	30
7056	46156	280	420	65	338	540	1600	1600	30
7060	46160	300	460	74	423	695	1500	1500	42.5
7064	46164	320	480	74	390	670	1300	1300	44.5
7068	46168	340	520	82	449	815	1200	1200	59.5
7072	46172	360	540	82	520	950	1300	1300	61.8
7076	46176	380	560	82	462	850	1100	1100	64.7
7080	46180	400	600	90	540	1060	1000	1000	90.5
7084	46184	420	620	90	605	1180	1100	1100	95
7088	46188	440	650	94	572	1180	950	950	100
7092	46192	460	680	100	689	1460	950	950	112
7096	46196	480	700	100	624	1340	850	850	125
