Double row Angular Contact Ball Bearing

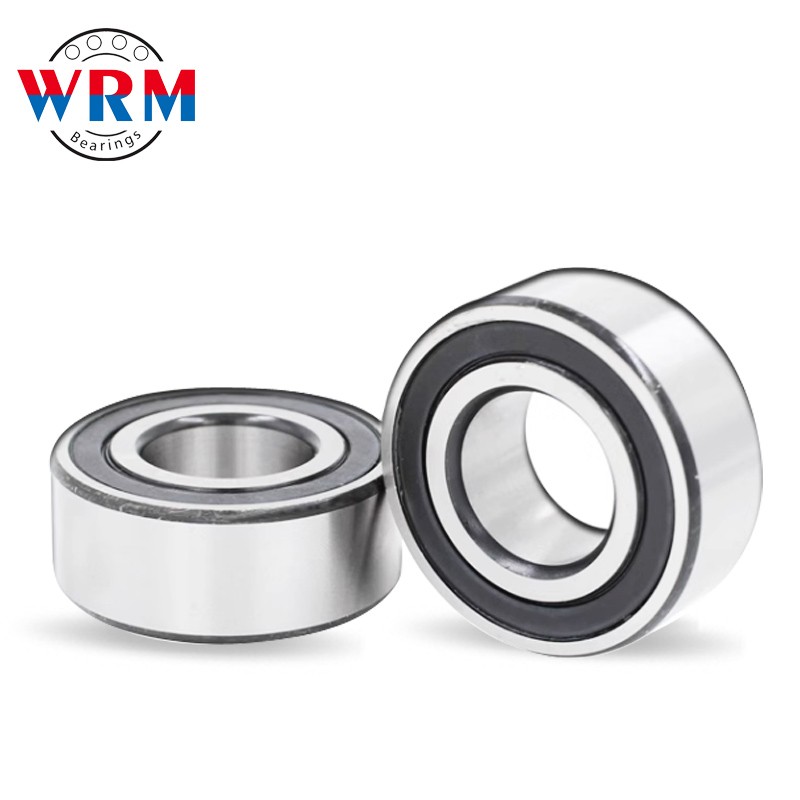

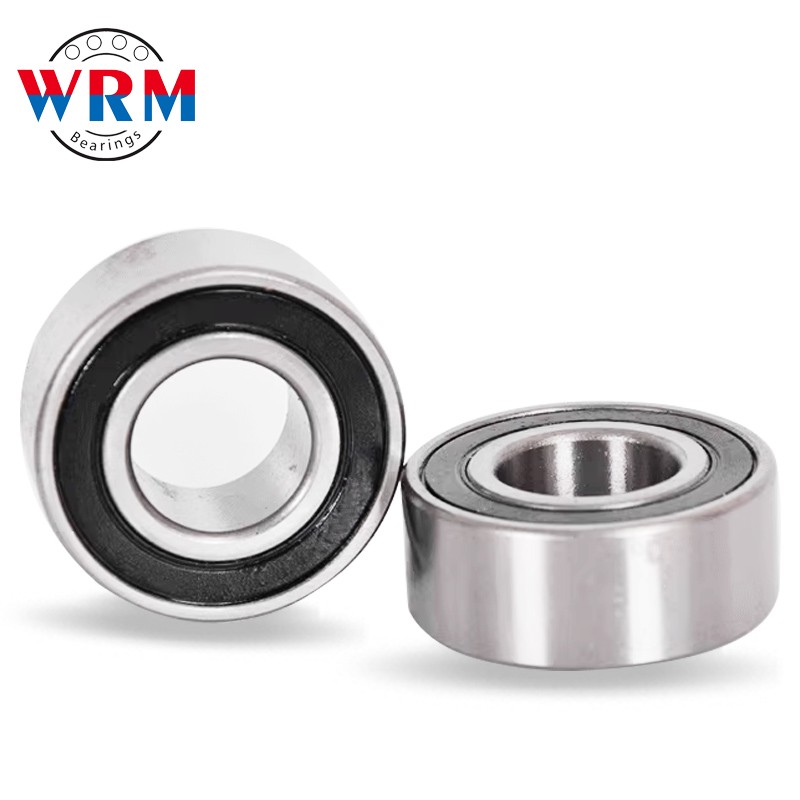

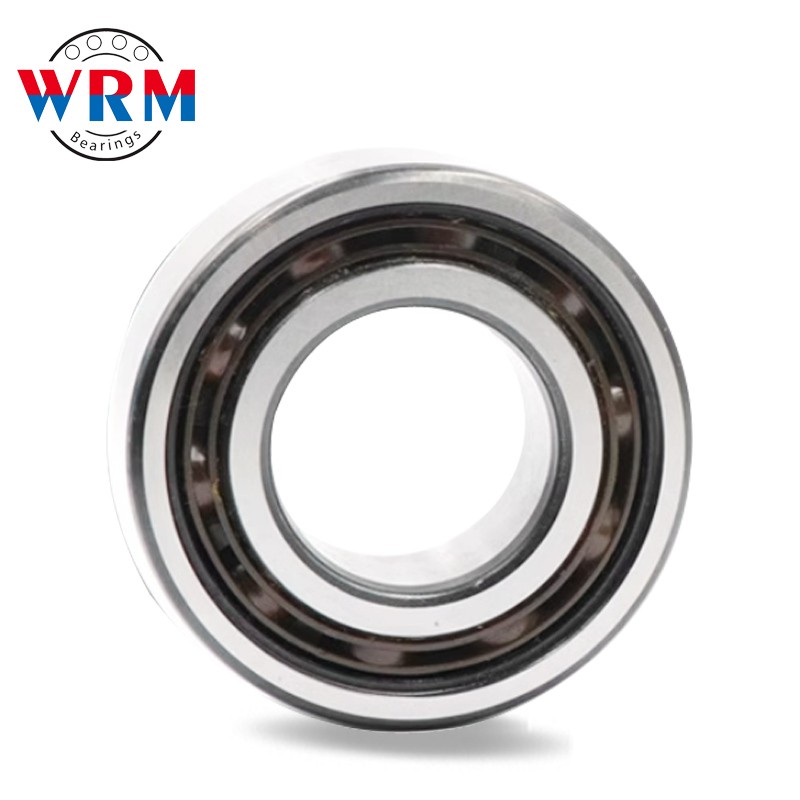

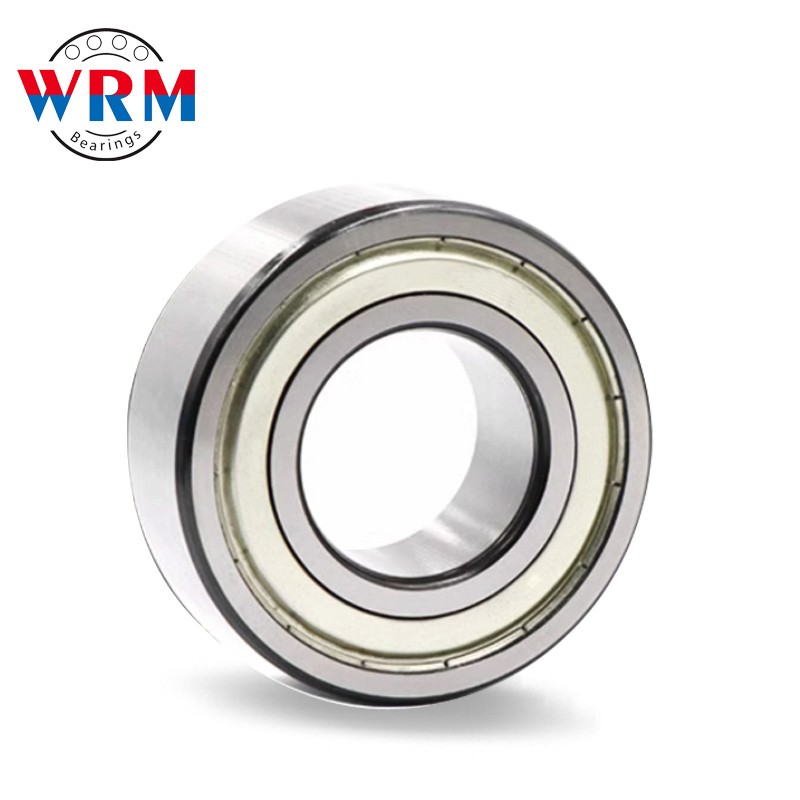

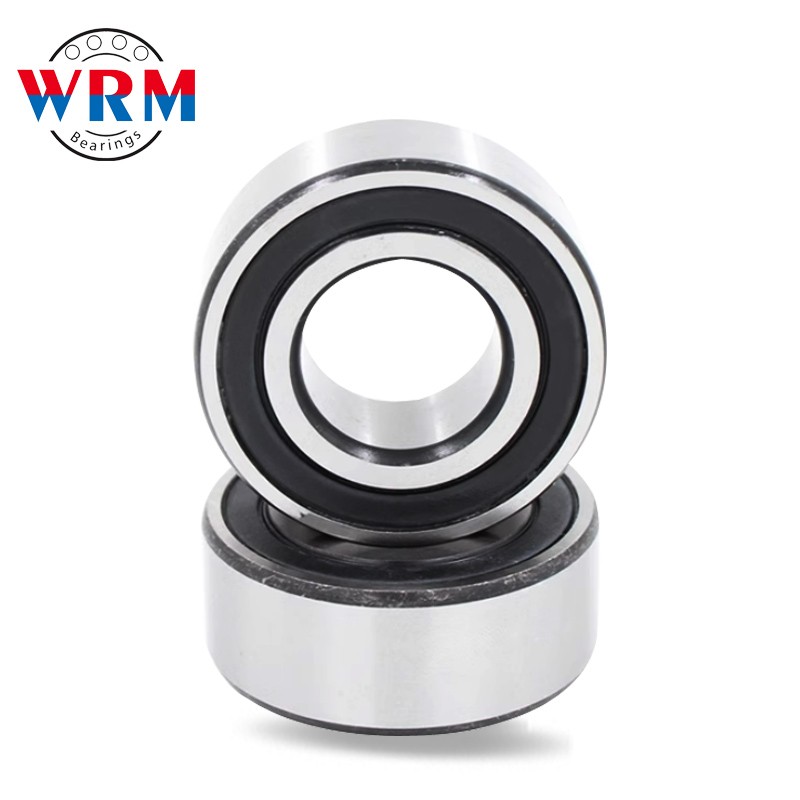

Angular Contact Ball Bearing 3300 series

Product name:Angular Contact Ball Bearing
cage:A A-2Z A-2RS1 BD-XL BD-XL-2HRS BD-XL-2Z BTNG 2RSRTNG 2ZTNG
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

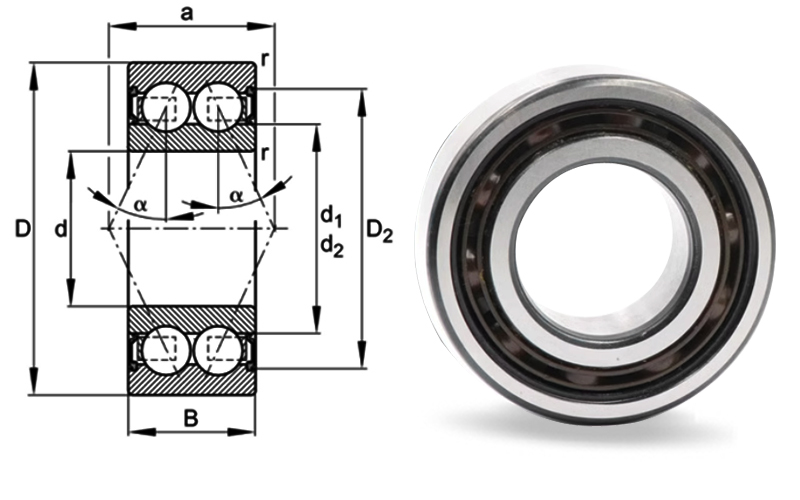

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
3300	305300	10	35	19	15.2	8	9800	22000	0.15
3301	305301	12	37	19	16.4	10.5	9500	20000	0.16
3302	305302	15	42	19	19.8	12.5	9300	18000	0.18
3303	305303	17	47	22.2	20.2	13.1	9000	15000	0.2
3304	305304	20	52	22.2	22.2	14.2	8500	12000	0.22
3305	305305	25	62	25.4	31.2	20.8	7500	10000	0.35
3306	305306	30	72	30.2	36.8	28.5	6300	8500	0.53
3307	305307	35	80	34.9	44	34	5600	7500	0.73
3308	305308	40	90	36.5	53.2	43	5000	6700	0.95
3309	305309	45	100	39.7	64,8	73.5	4500	6000	1.4
3310	305310	50	110	44.4	79.2	96.5	4000	5300	1.95
3311	305311	55	120	49.2	85.8	108	3800	5000	2.55
3312	305312	60	130	54	100	128	3400	4500	3.25
3313	305313	65	140	58.7	115	150	3200	4300	4.1
3314	305314	70	150	63.5	132	172	2800	3800	5.05
3315	305315	75	160	68.3	142	185	2600	3600	6.15
3316	305316	80	170	68.3	158	212	2400	3400	6.95
3317	305317	85	180	73	175	240	2200	3200	8.3
3318	305318	90	190	73	205	242	2100	2800	9.23
3319	305319	95	200	78	218	270	2000	2600	10.9
3320	305320	100	240	82.6	249	324	1800	2500	13.5
3322	305322	110	240	92.1	281	388	1600	2200	18.9
3324	305324	120	260	106	310	410	1500	2000	27
