Four point angular contact ball bearing 71900 series

angular contact ball bearing 71900 series

Product name:Angular Contact Ball Bearing
cage:CD ACD P4A DBA C B-TVP C AC
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Angular contact ball bearing1.jpg

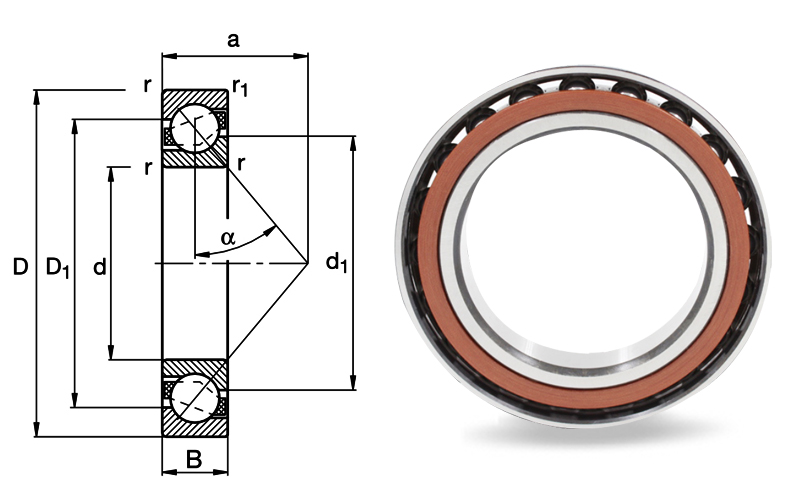

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)	Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Speed ratings(r/min)	Weight (kg)
71910	1036910	50	72	12	19600	11900	19000	0.13
71911	1036911	55	80	13	23500	14400	17000	0.17
71912	1036912	60	85	13	24700	16000	16000	0.2
71913	1036913	65	90	13	25000	16900	15000	0.2
71914	1036914	70	100	16	34500	23000	14000	0.33
71915	1036915	75	105	16	35000	24200	13000	0.35
71916	1036916	80	110	16	35500	25500	12000	0.36
71917	1036917	85	120	18	47000	33500	11000	0.53
71918	1036918	90	125	18	48000	35000	11000	0.55
71919	1036919	95	130	18	48500	36500	10000	0.58
71920	1036920	100	140	20	60000	45000	9500	0.79
71921	1036921	105	145	20	60000	45000	9000	0.81
71922	1036922	110	150	20	61000	47000	8500	0.85
71924	1036924	120	165	22	76000	59000	8000	1.16
71926	1036926	130	180	24	90000	71000	7000	1.53
71928	1036928	140	190	24	94000	77000	6700	1.59
71930	1036930	150	210	28	125000	101000	6300	2.46
71932	1036932	160	220	28	128000	106000	6000	2.59
71934	1036934	170	230	28	133000	115000	5600	2.74
71936	1036936	180	250	33	171000	146000	5300	4.07
71938	1036938	190	260	33	174000	152000	5000	4.25
71940	1036940	200	280	38	210000	179000	4500	5.95
71944	1036944	220	300	38	221000	185000	4300	6.6
71948	1036948	240	320	38	229000	190000	3800	8.5
71952	1036952	260	360	46	281000	425000	3600	12.2
71956	1036956	280	380	46	291000	455000	3000	12.9
71960	1036960	300	420	56	371000	460000	2800	23
71964	1036964	320	440	56	351000	456000	2600	25.5
71968	1036968	340	460	56	355000	460000	2400	24
71972	1036972	360	480	56	302000	465000	2200	28.5
71976	1036976	380	520	65	410000	468000	2000	40.1
71980	1036980	400	540	65	403000	470000	1800	39
71984	1036984	420	560	65	410000	475000	1600	42
71988	1036988	440	600	74	507000	478000	1500	61
71992	1036992	460	620	74	507000	48000	1300	86
