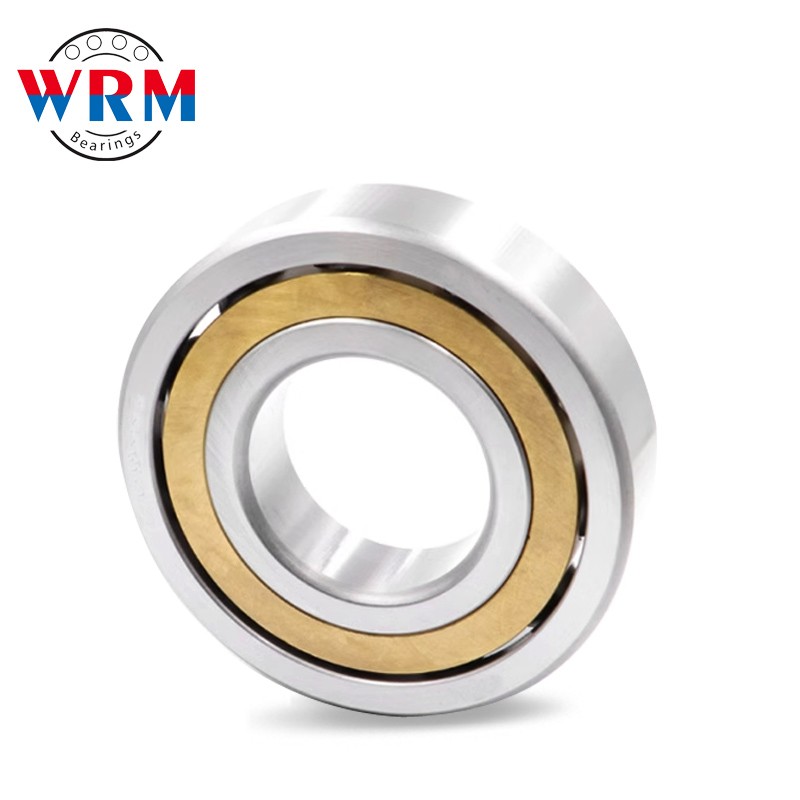

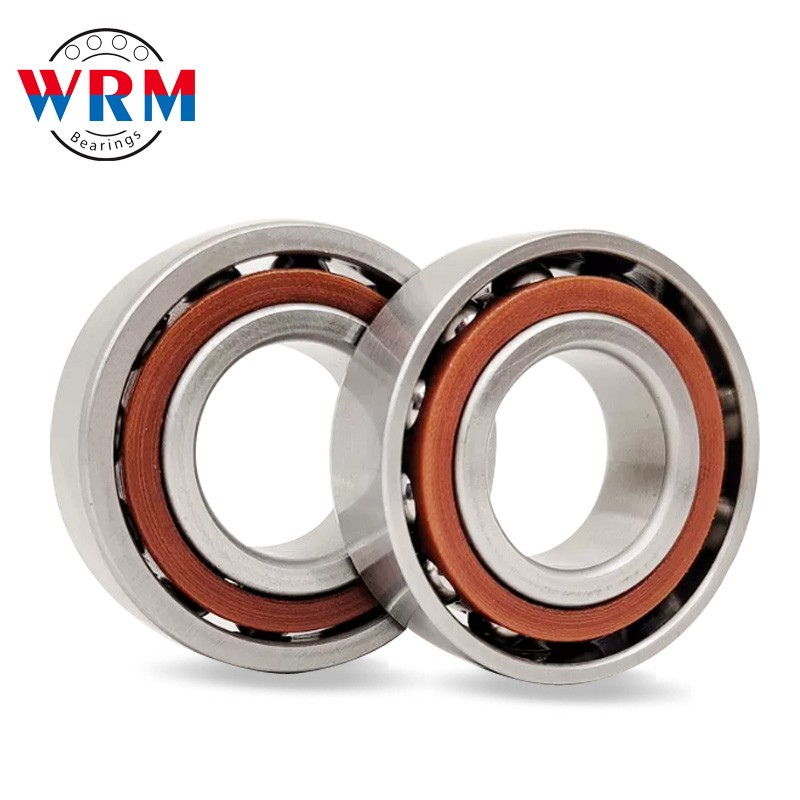

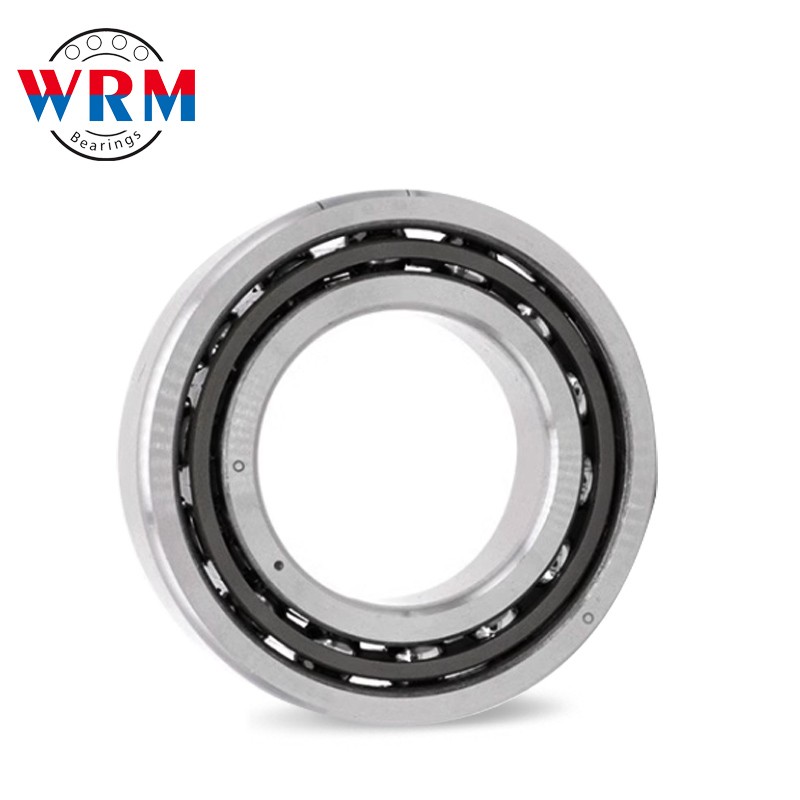

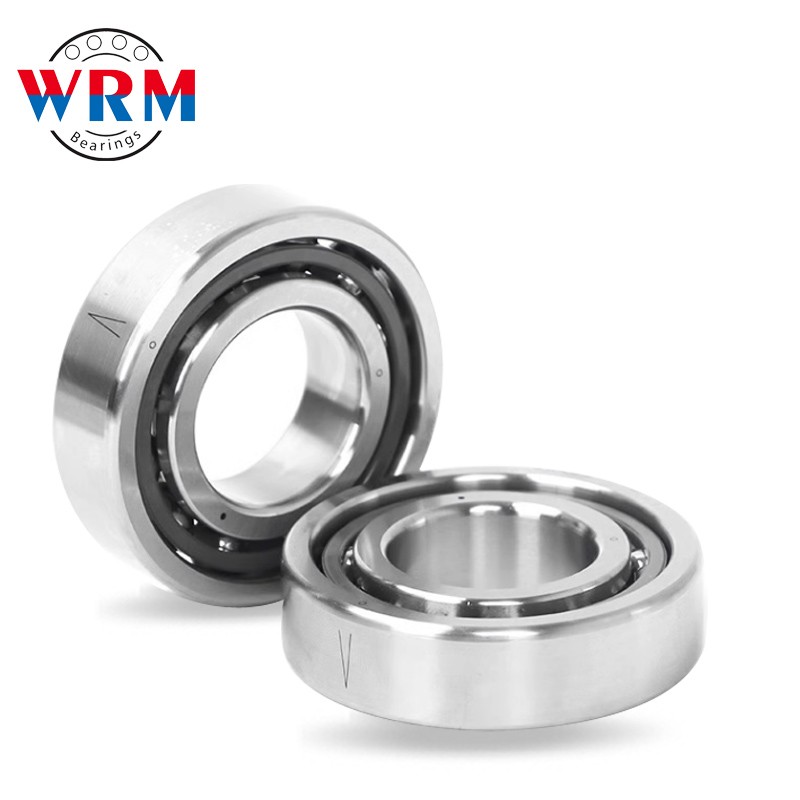

Angular Contact Ball Bearing 7300 series

Product name:Angular Contact Ball Bearing
cage:ACM AC B BM BGM BEP BEGAP BCBM TVP UA UO  AM  AW CTYNSUL
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Angular contact ball bearing3.jpg

Designation	Old model	Principal Diension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
7310	46310	50	110	27	71.9	48.5	5600	7500	1.08
7311	46311	55	120	29	83.4	58	5000	6700	1.42
7312	46312	60	130	31	95.2	67.2	4800	6300	1.71
7313	46313	65	140	33	98	33.6	4300	5600	2.23
7314	46314	70	150	35	118.8	88.2	4000	5300	2.67
7315	46315	75	160	37	134.4	99.8	3800	5000	3.1
7316	46316	80	170	39	149.5	107.7	3600	4800	3.6
7317	46317	85	180	41	154.3	122.3	3400	4500	4.38
7318	46318	90	190	43	177.6	153.5	3200	4300	5.6
7319	46319	95	200	45	193.3	172.6	3200	4200	6.6
7320	46320	100	215	47	213.5	198.6	3000	4000	7.58
7322	46322	110	240	50	253.2	252.4	2600	3600	10.5
7324	46324	120	260	55	286.1	305.6	2500	3400	12.6
7326	46326	130	280	58	305.2	356.4	2200	3200	15.4
7328	46328	140	300	62	320.2	405.5	2000	3000	18.8
7330	46330	150	320	65	332	390	2400	2800	26
7332	46332	160	340	68	358	440	2400	2600	30.3
7334	46334	170	360	72	390	490	2200	2600	36
7336	46336	180	380	75	410	540	2000	2400	42
7338	46338	190	400	78	442	600	2000	2200	48.5
7340	46340	200	420	80	462	655	1900	2200	53
7344	46344	220	460	88	494	720	1600	1600	70
7348	46348	240	500	95	527	800	1400	1400	89.4
