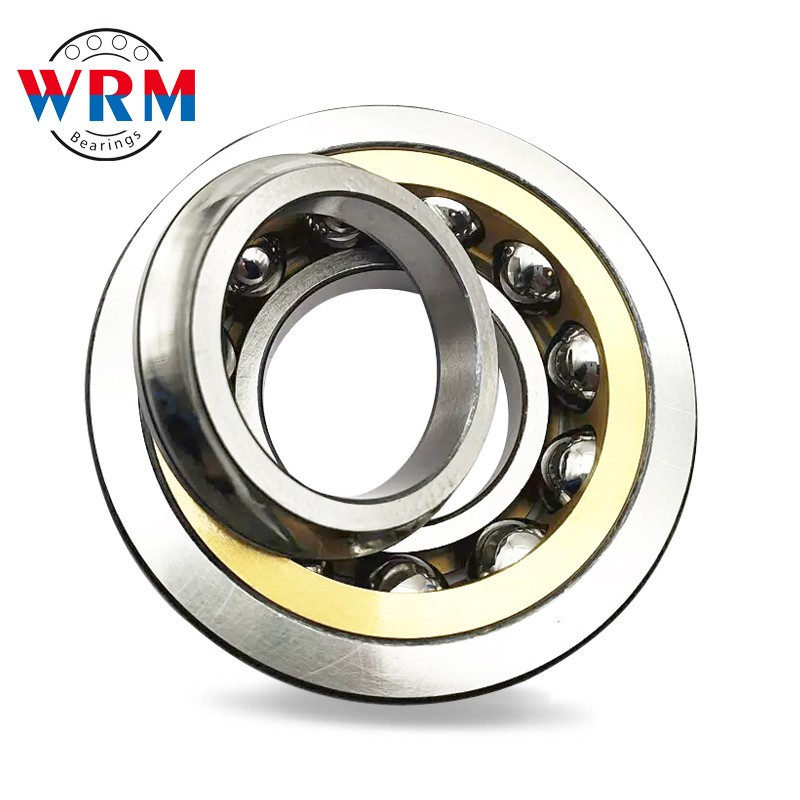

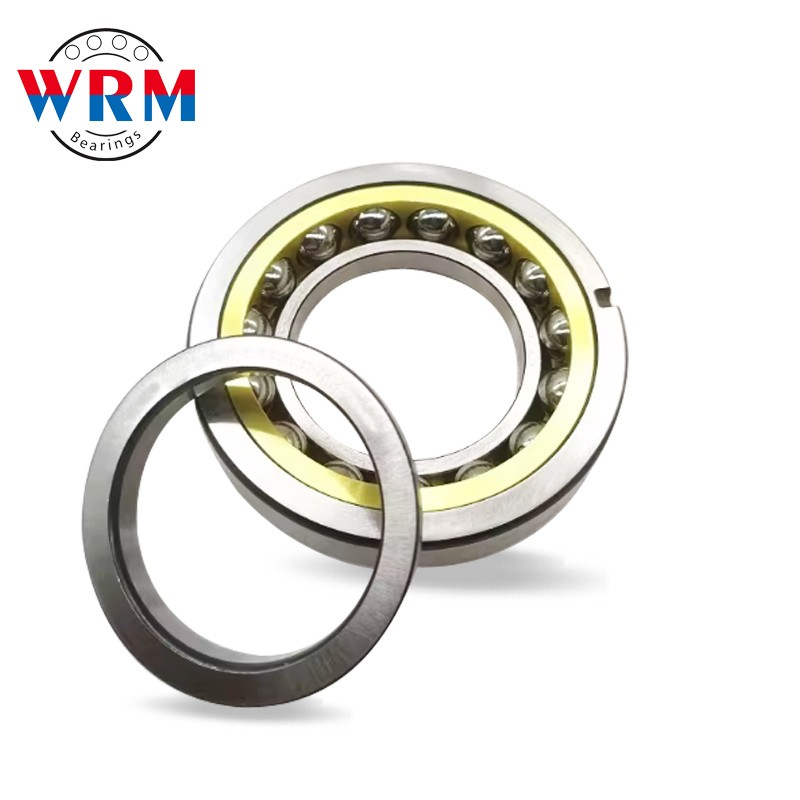

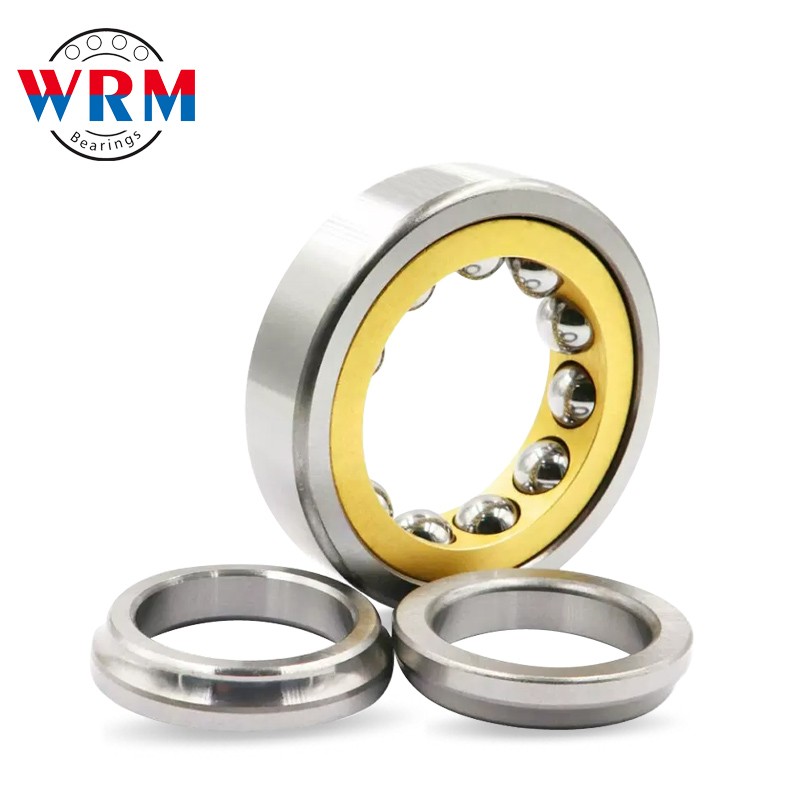

Four point angular contact ball bearing QJ310 series

Four point angular contact ball bearing QJ310 series

Four point angular contact ball bearing QJ310 series

Product name:Angular Contact Ball Bearing
cage:M MA XL-MPA
Angle：15 °30 °35°40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags


Bearings No.				Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
CHINA	FAG	SKF	NSK	d	D	B	Dynamic	Static	Grease	Oil	kg
QJ310M	QJ310-XL-MPA	QJ310MA	QJ310	50	110	27	105	105	13500	6800	1.317
QJ311M	QJ311-XL-MPA	QJ311MA	QJ311	55	120	29	135	130	12000	6300	1.685
QJ312M	QJ312-XL-MPA	QJ312MA	QJ312	60	130	31	180	186	10100	6000	2.11
QJ313M	QJ313-XL-MPA	QJ313MA	QJ313	65	140	33	230	230	9800	5800	2.59
QJ314M	QJ314-XL-MPA	QJ314MA	QJ314	70	150	35	260	256	9500	5500	3.136
QJ315M	QJ315-XL-MPA	QJ315MA	QJ315	75	160	37	285	285	9000	5000	3.8
QJ316M	QJ316-XL-MPA	QJ316MA	QJ316	80	170	39	336	336	8500	4500	4.65
QJ317M	QJ317-XL-MPA	QJ317MA	QJ317	85	180	41	385	356	8300	4300	5.362
QJ318M	QJ318-XL-MPA	QJ318MA	QJ318	90	190	43	450	380	8000	3800	6.18
QJ319M	QJ319-XL-MPA	QJ319MA	QJ319	95	200	45	480	456	7500	3600	7.229
QJ320M	QJ320-XL-MPA	QJ320MA	QJ320	100	215	47	506	486	7000	3300	8.7
QJ322M	QJ322-XL-MPA	QJ322MA	QJ322	110	240	50	570	530	6800	3000	11.79
QJ324M	QJ324-XL-MPA	QJ324MA	QJ324	120	260	55	660	630	6500	2500	15.3
QJ326M	QJ326-XL-MPA	QJ326MA	QJ326	130	280	58	763	680	6300	2400	19.2
QJ328M	QJ328-XL-MPA	QJ328MA	QJ328	140	300	62	753	730	5500	2250	23.2
QJ330M	QJ330-XL-MPA	QJ330MA	QJ330	150	320	65	826	780	5300	2000	28
QJ332M	QJ332-XL-MPA	QJ332MA	QJ332	160	240	68	883	850	4800	1800	34.5
QJ334M	QJ334-XL-MPA	QJ334MA	QJ334	170	360	72	950	900	4500	1600	41.5
QJ336M	QJ336-XL-MPA	QJ336MA	QJ336	180	380	75	1080	1000	4000	1500	43.8
QJ338M	QJ338-XL-MPA	QJ338MA	QJ338	190	400	78	1150	1050	3800	1300	49
QJ340M	QJ340-XL-MPA	QJ340MA	QJ340	200	420	80	1280	1100	3600	1250	55.2
QJ344M	QJ344-XL-MPA	QJ344MA	QJ344	220	460	88	1410	1200	3300	1100	85.4
QJ348M	QJ348-XL-MPA	QJ348MA	QJ348	240	500	95	1560	1300	3000	900	98.2
QJ352M	QJ352-XL-MPA	QJ352MA	QJ352	260	540	102	1700	1500	2500	950	123

Angular contact ball bearing5.jpg
