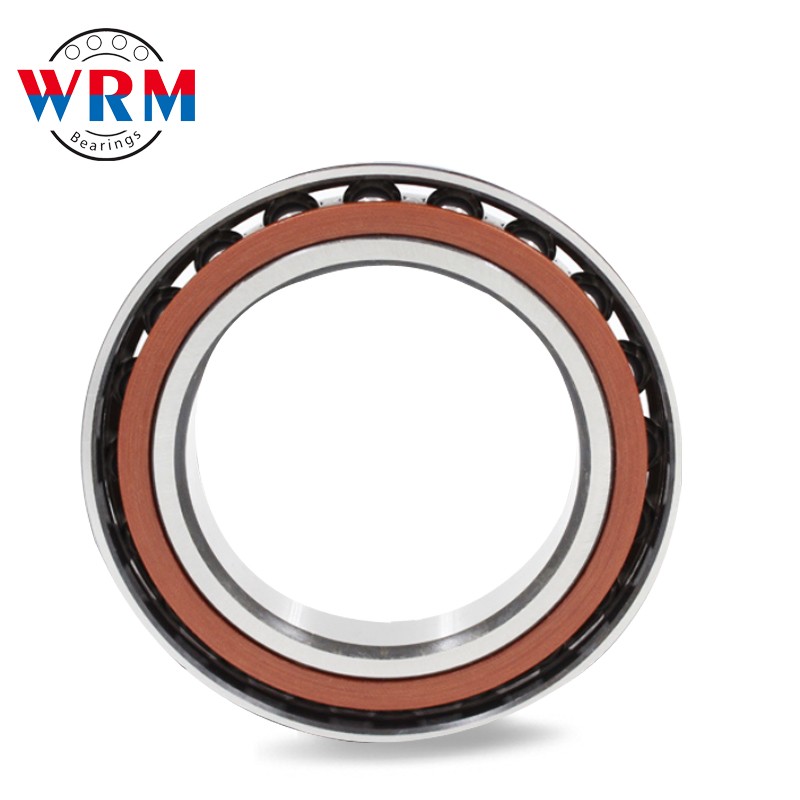

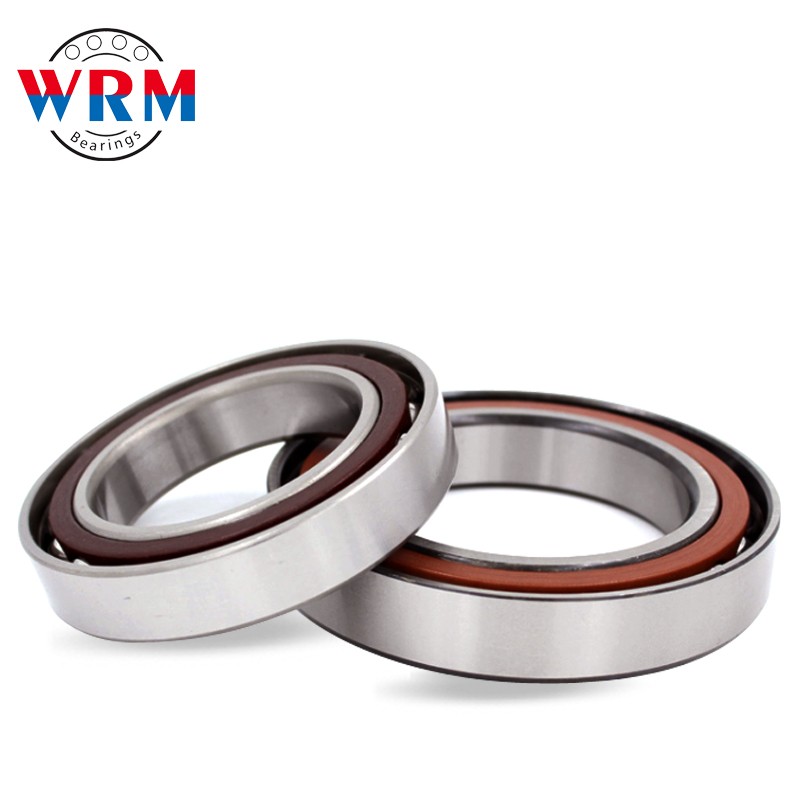

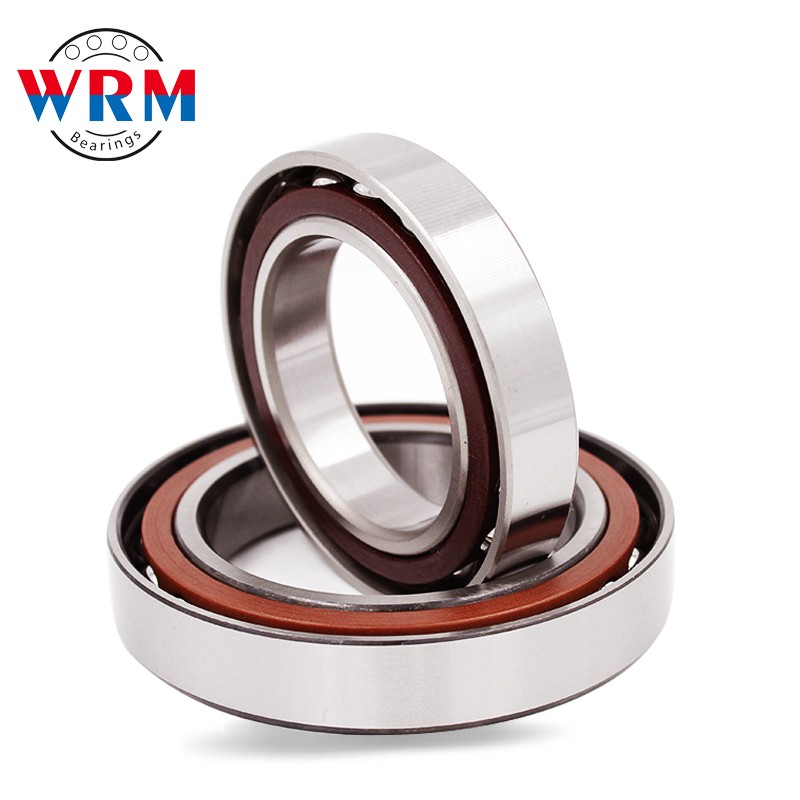

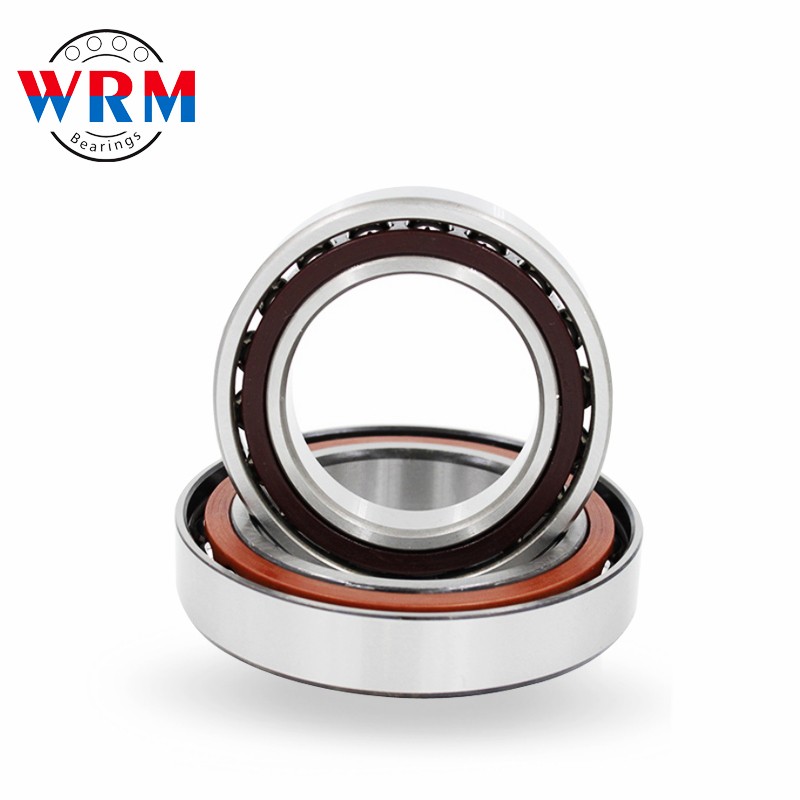

Four point angular contact ball bearing 71800 series

angular contact ball bearing 71800 series

angular contact ball bearing 71800 series

Product name:Angular Contact Ball Bearing
cage:CD ACD P4A DBA C B-TVP C AC
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Angular contact ball bearing1.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
71810	1036810	50	65	7	7.41	7.8	16000	24000	0.058
71811	1036811	55	72	9	10.1	10.8	14400	22400	0.081
71812	1036812	60	78	10	13.5	14.3	12800	19200	0.107
71813	1036813	65	85	10	13.5	14.6	12000	17600	0.125
71814	1036814	70	90	10	13.8	16	11200	17600	0.0134
71815	1036815	75	95	10	14.3	17	10400	16000	0.142
71816	1036816	80	100	10	14.6	18.3	9600	15200	0.152
71817	1036817	85	110	13	21.6	25.5	8800	13600	0.266
71818	1036818	90	115	13	21.6	26.5	8800	13600	0.279
71819	1036819	95	120	13	22.1	27.5	8000	12800	0.292
71820	1036820	100	125	13	22.5	29	7200	11200	0.31
71821	1036821	105	130	13	22.9	30	7200	11200	0.32
71822	1036822	110	140	16	31.9	40.5	6400	10400	0.505
71824	1036824	120	150	16	33.2	45	6000	9600	0.55
71826	1036826	130	165	18	39	53	5600	8800	0.77
71828	1036828	140	175	18	44.9	62	5000	8000	0.8
71830	1036830	150	190	20	52	72	4800	7200	1.1
71832	1036832	160	200	20	54	78	4400	6800	1.233
71834	1036834	170	215	22	65	90	4200	6500	1.61
71852	1036852	260	320	28	150	110	4000	6000	4.78
71856	1036856	280	350	33	230	135	3800	5500	6
71868	1036868	320	420	38	350	180	3600	5000	11.4
71872	1036872	360	440	38	450	280	3400	4500	12.5
71876	1036876	380	480	46	500	320	3200	4000	18.5
71892	1036892	460	580	56	600	350	3000	3800	36.4


Angular contact ball bearing4.jpg

PREVIOUS： angular contact ball bearing 71900 series

NEXT：Angular Contact Ball Bearing 3200 series

Tags: Bearing Ball bearing Four point angular contact ball bearing
