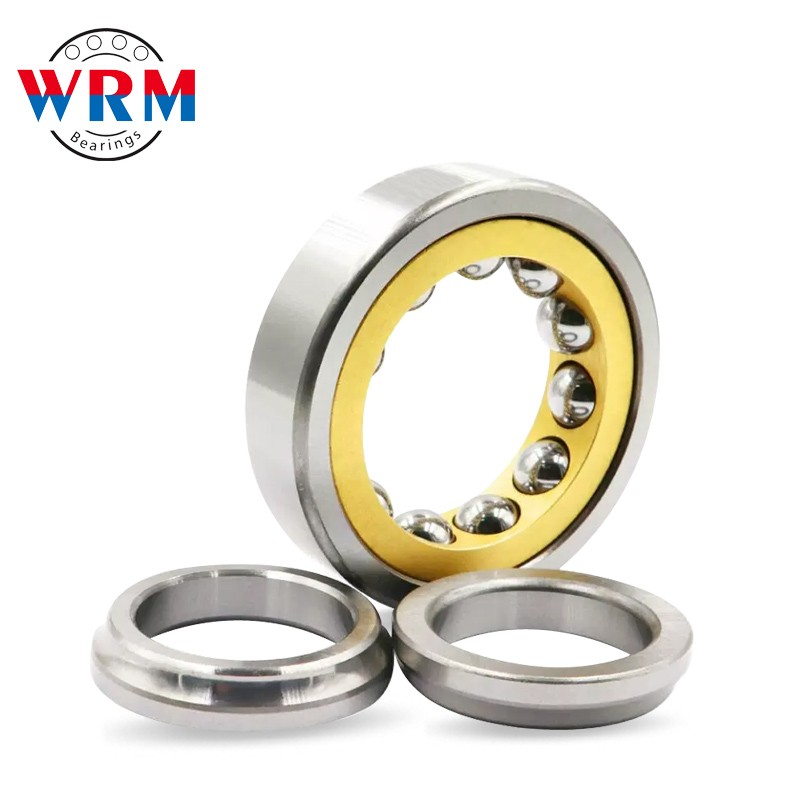

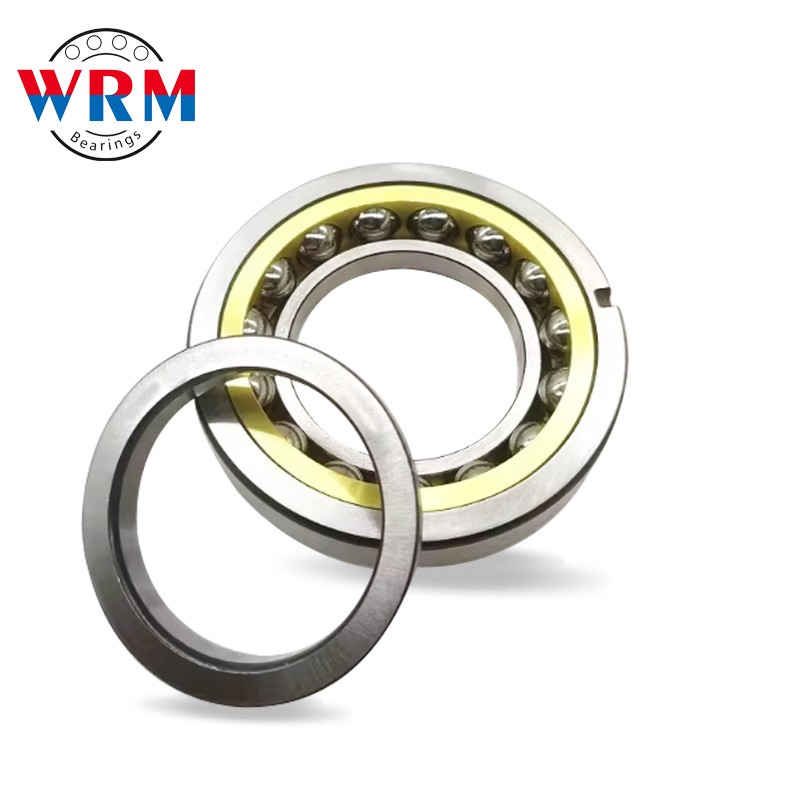

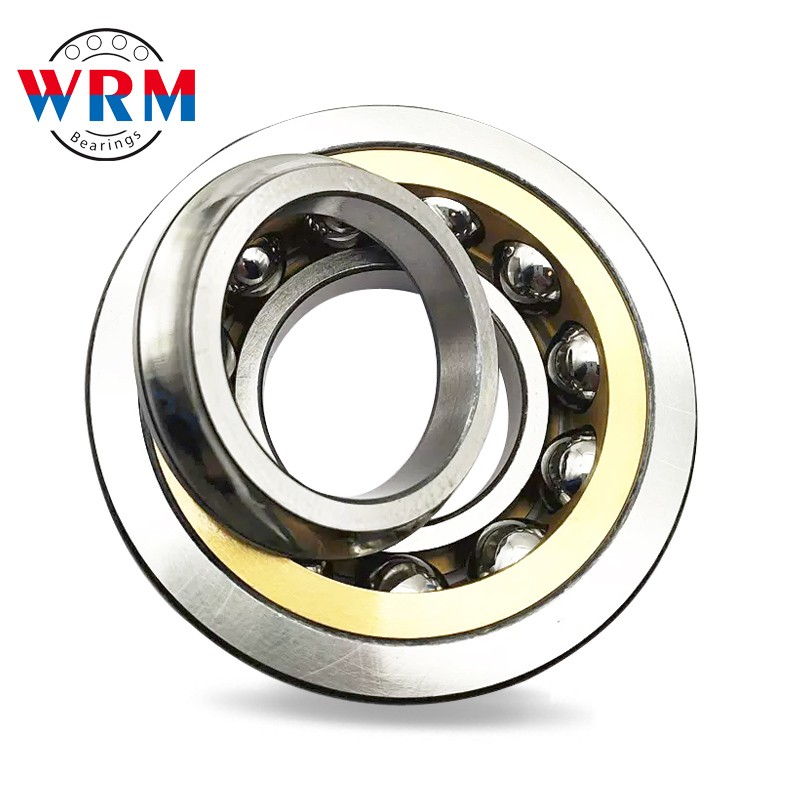

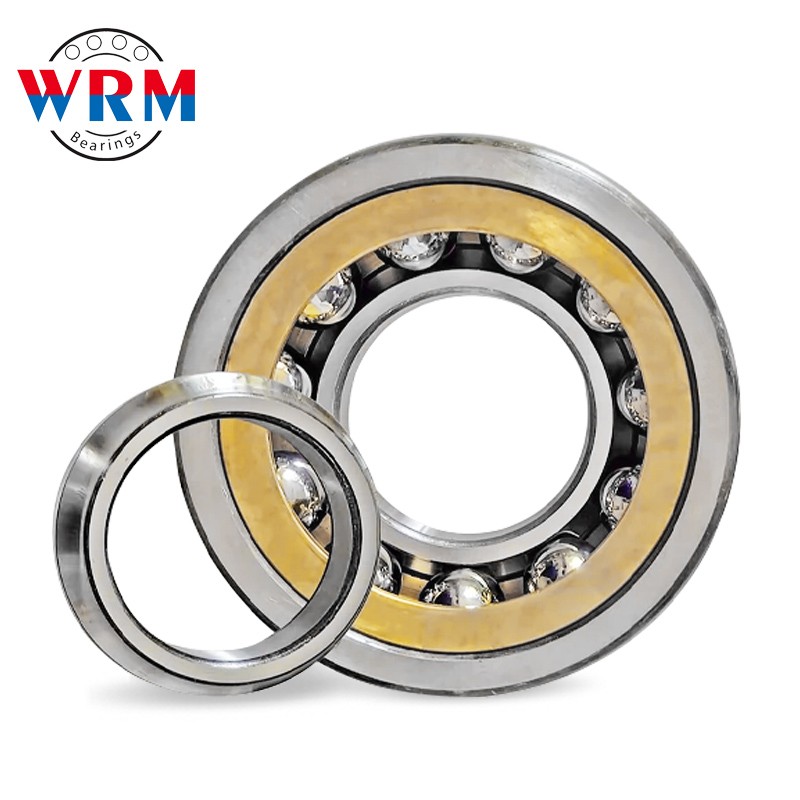

Four point angular contact ball bearing QJ210 series

Product name:Angular Contact Ball Bearing
cage:M MA XL-MPA
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

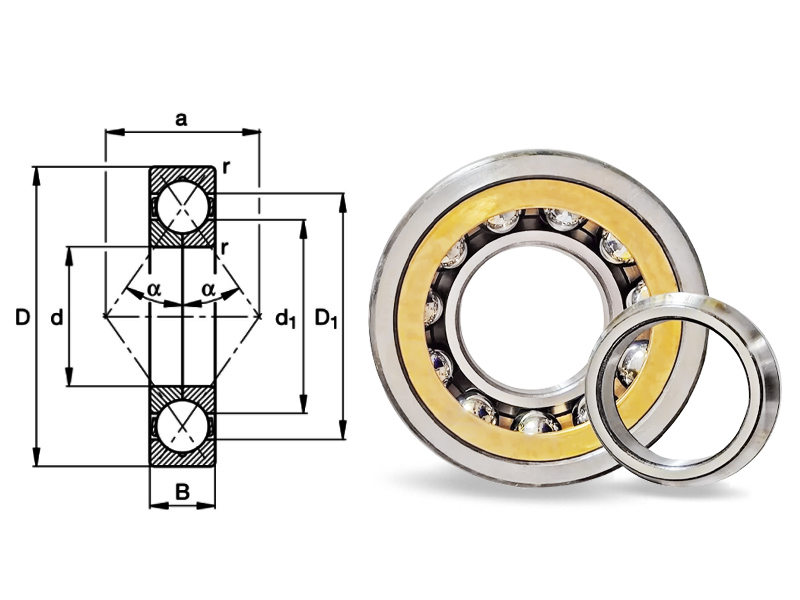

Bearings No.				Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
CHINA	FAG	SKF	NSK	d	D	B	Dynamic	Static	Grease	Oil	kg
QJ210M	QJ210-XL-MPA	QJ210MA	QJ210	50	90	20	20667	18667	5067	2233	0.57
QJ211M	QJ211-XL-MPA	QJ211MA	QJ211	55	100	21	25667	23667	4533	1967	0.75
QJ212M	QJ212-XL-MPA	QJ212MA	QJ212	60	110	22	31333	29000	4100	1800	0.945
QJ213M	QJ213-XL-MPA	QJ213MA	QJ213	65	120	23	35333	34667	3767	1633	1.223
QJ214M	QJ214-XL-MPA	QJ214MA	QJ214	70	125	24	39333	38000	3567	1567	1.31
QJ215M	QJ215-XL-MPA	QJ215MA	QJ215	75	130	25	41000	40667	3400	1517	1.457
QJ216M	QJ216-XL-MPA	QJ216MA	QJ216	80	140	26	45333	45667	3133	1417	1.735
QJ217M	QJ217-XL-MPA	QJ217MA	QJ217	85	150	28	52667	5333	2933	1350	2.714
QJ218M	QJ218-XL-MPA	QJ218MA	QJ218	90	160	30	60333	61667	2733	1283	2.726
QJ219M	QJ219-XL-MPA	QJ219MA	QJ219	95	170	32	63333	70667	2333	1233	0.292
QJ220M	QJ220-XL-MPA	QJ220MA	QJ220	100	180	34	68000	70000	2000	1183	3.89
QJ222M	QJ222-XL-MPA	QJ222MA	QJ222	110	200	38	72000	75000	1900	1100	5.6
QJ224M	QJ224-XL-MPA	QJ224MA	QJ224	120	215	40	75000	78000	1800	1050	6.95
QJ226M	QJ226-XL-MPA	QJ226MA	QJ226	130	230	40	78000	82000	1700	1000	7.75
QJ228M	QJ228-XL-MPA	QJ228MA	QJ228	140	250	42	82000	85000	1600	950	9.85
QJ230M	QJ230-XL-MPA	QJ230MA	QJ230	150	270	45	85000	88000	1550	900	12.5
QJ232M	QJ232-XL-MPA	QJ232MA	QJ232	160	290	48	88000	90000	1400	850	15.5
QJ234M	QJ234-XL-MPA	QJ234MA	QJ234	170	310	52	90000	93000	1350	800	19.5
QJ236M	QJ236-XL-MPA	QJ236MA	QJ236	180	320	52	93000	98000	1300	730	20.5
QJ238M	QJ238-XL-MPA	QJ238MA	QJ238	190	340	55	98000	102000	1200	700	23.3
QJ240M	QJ240-XL-MPA	QJ240MA	QJ240	200	360	58	102000	105000	1000	650	28.5
QJ244M	QJ244-XL-MPA	QJ244MA	QJ244	220	400	65	103500	108000	980	620	39.2
QJ248M	QJ248-XL-MPA	QJ248MA	QJ248	240	440	72	105000	110000	950	600	53.2
QJ252M	QJ252-XL-MPA	QJ252MA	QJ252	260	480	80	108000	112000	900	550	72.8
QJ260M	QJ260-XL-MPA	QJ260MA	QJ260	300	540	85	110000	115000	850	500	96.74
