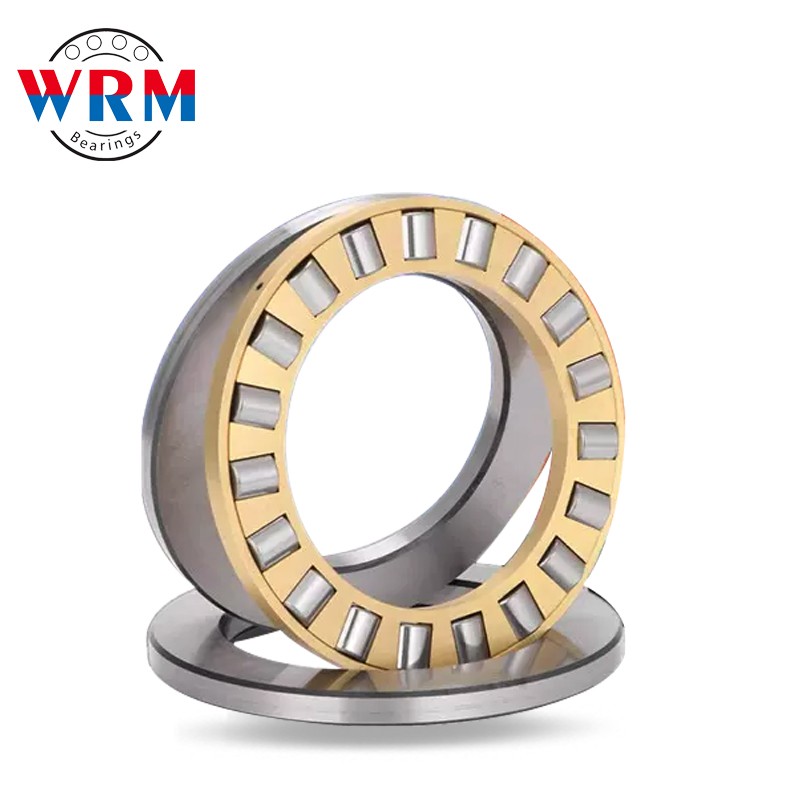

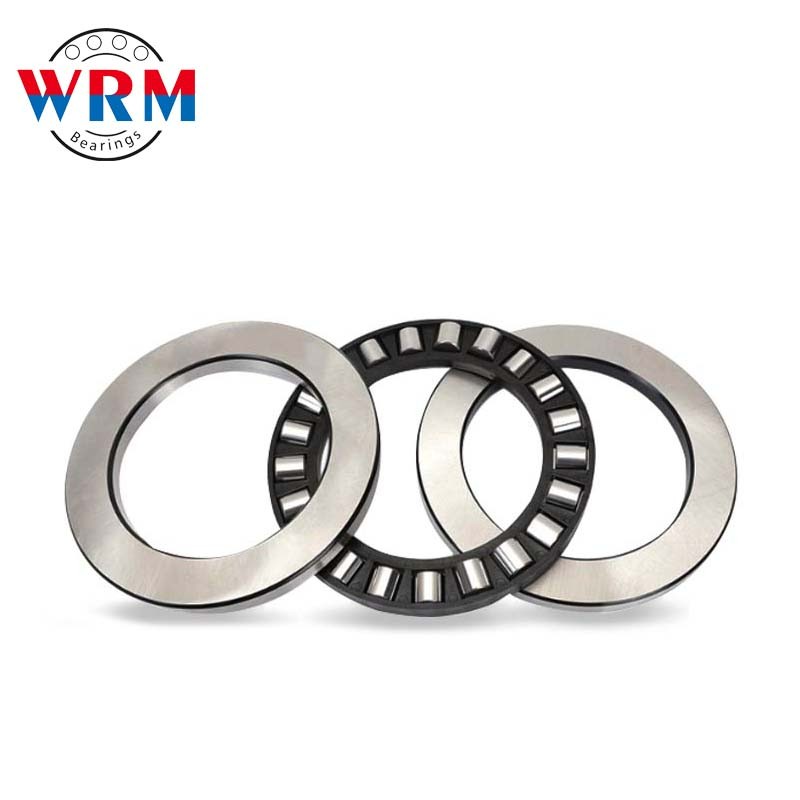

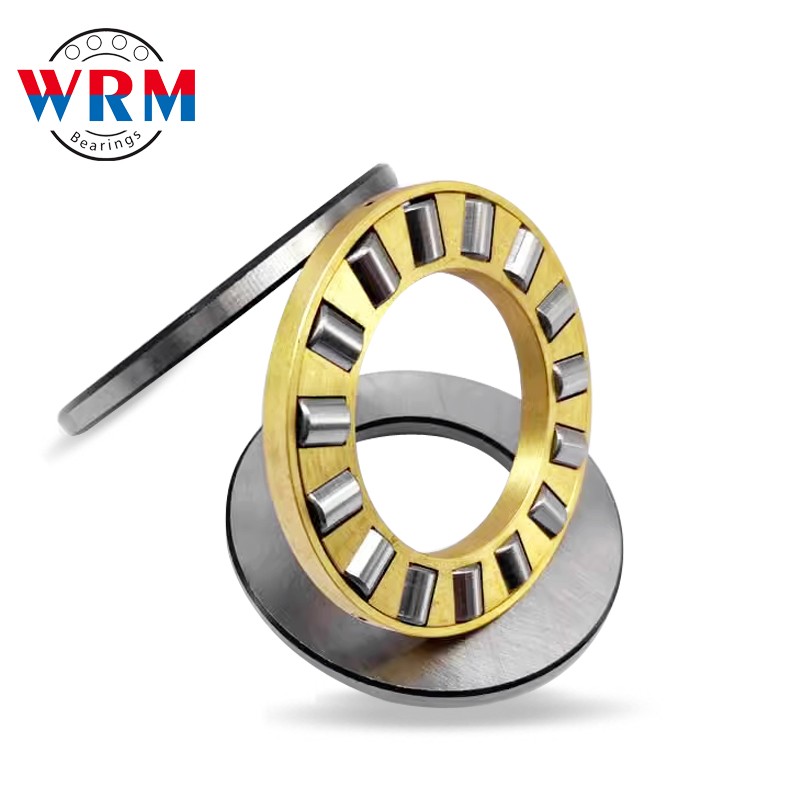

Thrust Roller Bearing 81210 series

Thrust Roller Bearing 81210 series

Thrust Roller Bearing 81210 series

Product name：Thrust Roller Bearing
cage: TN M
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Thrust roller bearingcage.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN)		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	Weight (kg)
81210	9210	50	78	22	117	315	4500	1550	0.356
81211	9211	55	90	25	154	405	3950	1510	0.568
81212	9212	60	95	26	172	480	3700	1300	0.642
81213	9213	65	100	27	177	500	3550	1250	0.87
81214	9214	70	105	27	187	550	3250	1120	0.77
81215	9215	75	110	27	172	500	3100	1210	0.8
81216	9216	80	115	28	201	630	2900	980	0.9
81217	9217	85	125	31	217	660	2750	1060	1.26
81218	9218	90	135	35	290	890	2550	910	1.77
81220	9220	100	150	38	340	1080	2300	840	2.58
81222	9222	110	160	38	325	1030	2130	860	2.445
81224	9224	120	170	39	340	1120	1990	790	2.69
81226	9226	130	190	45	480	1520	1800	710	4.204
81228	9228	140	200	46	455	1450	1690	730	4.567
81230	9230	150	215	50	590	1940	1580	610	5.886
81232	9232	160	22	51	630	2100	1500	570	6.2
81234	9234	170	240	55	680	2340	1400	540	7.69
81236	9236	180	250	56	700	2440	1340	520	8.24
81238	9238	190	270	62	880	3000	1250	480	10.4
81240	9240	200	280	62	900	3150	1200	450	13.7
81244	9244	220	300	63	950	3450	1110	410	12.85
81248	9248	240	340	78	1380	5000	990	340	21.95
81252	9252	260	360	79	1450	5400	930	310	23.9
81256	9256	280	380	80	1470	5600	870	295	25.9
81260	9260	300	420	95	1940	7300	800	265	40.55
81264	9264	320	440	95	1980	7600	760	250	42.6
81268	9268	340	460	96	2060	8300	710	224	52.9
81272	9272	360	500	110	2700	10700	670	202	65

Thrust roller bearing4.jpg
