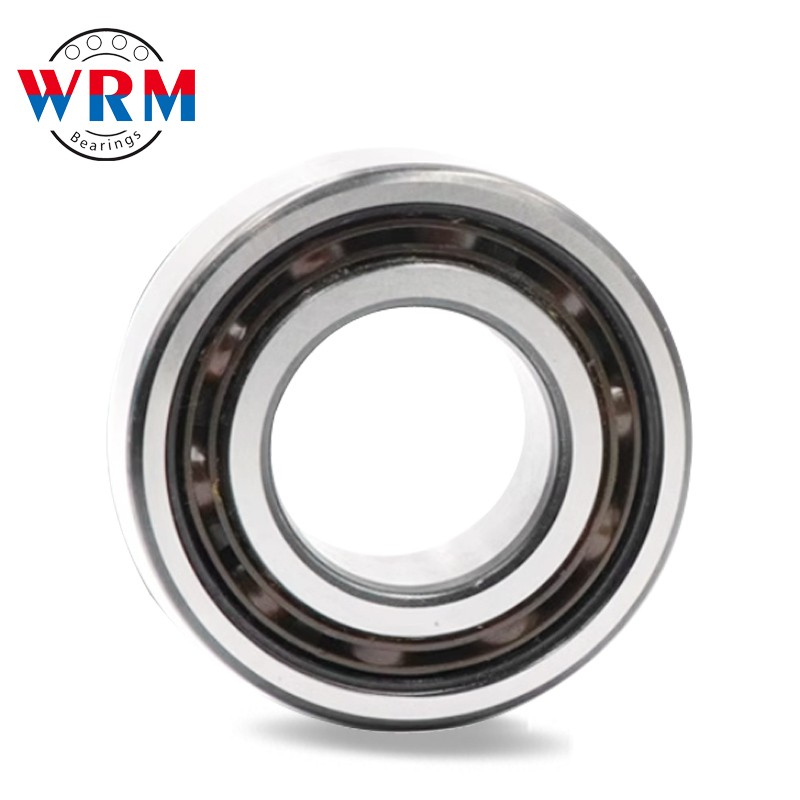

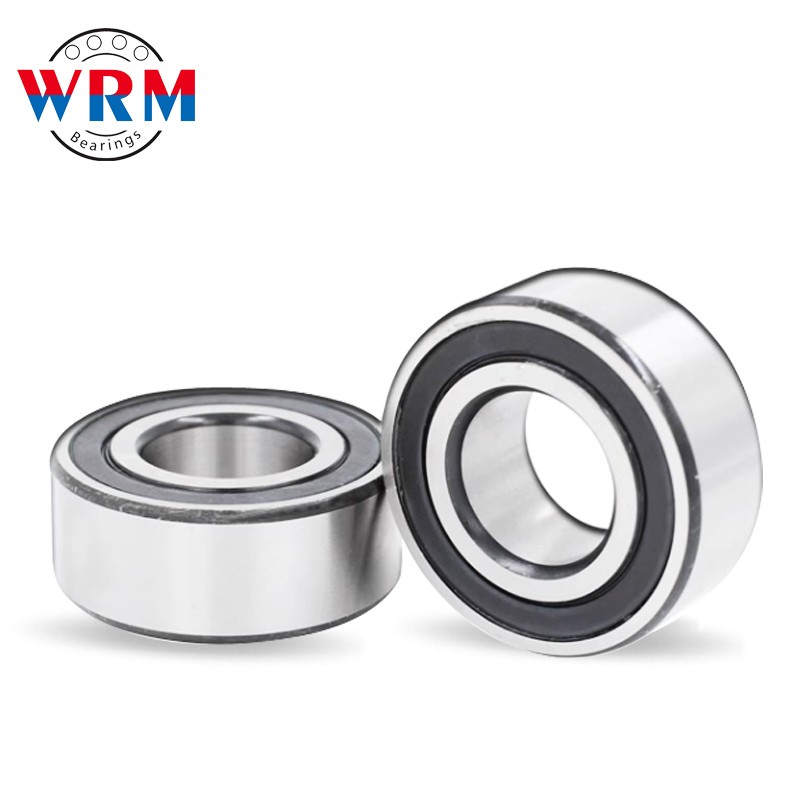

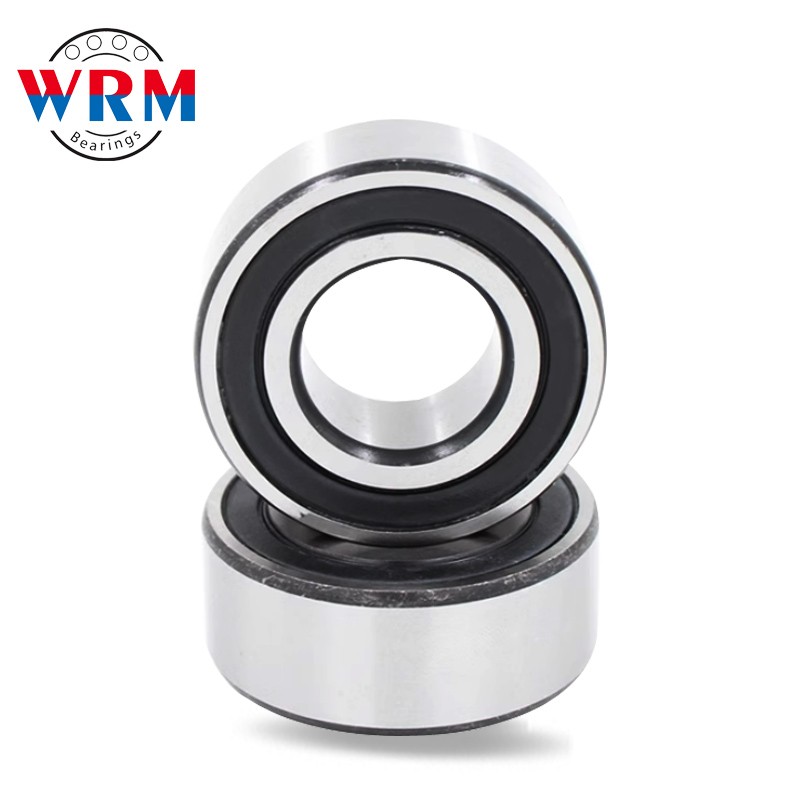

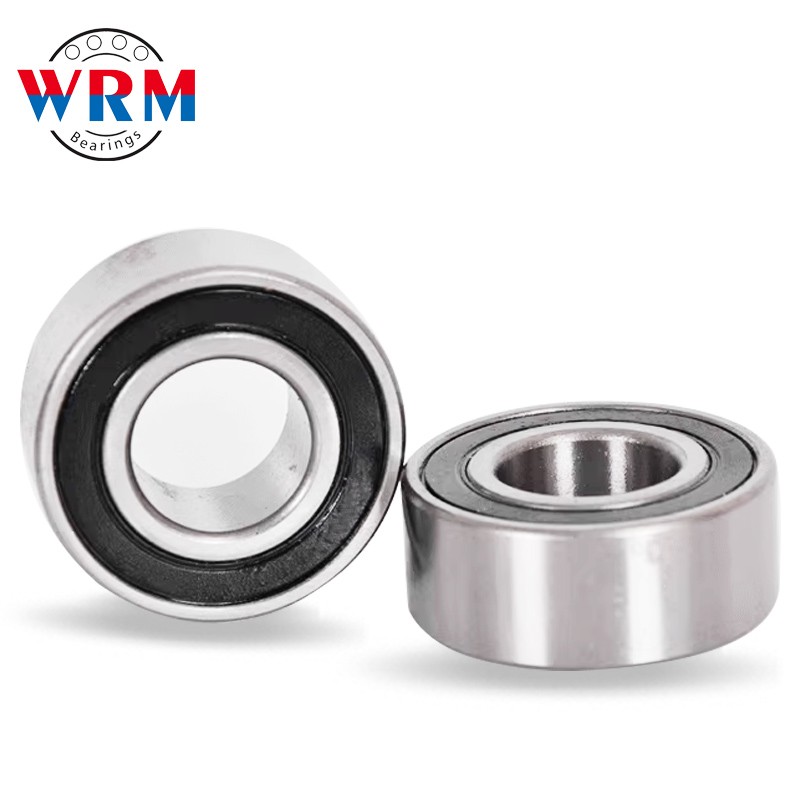

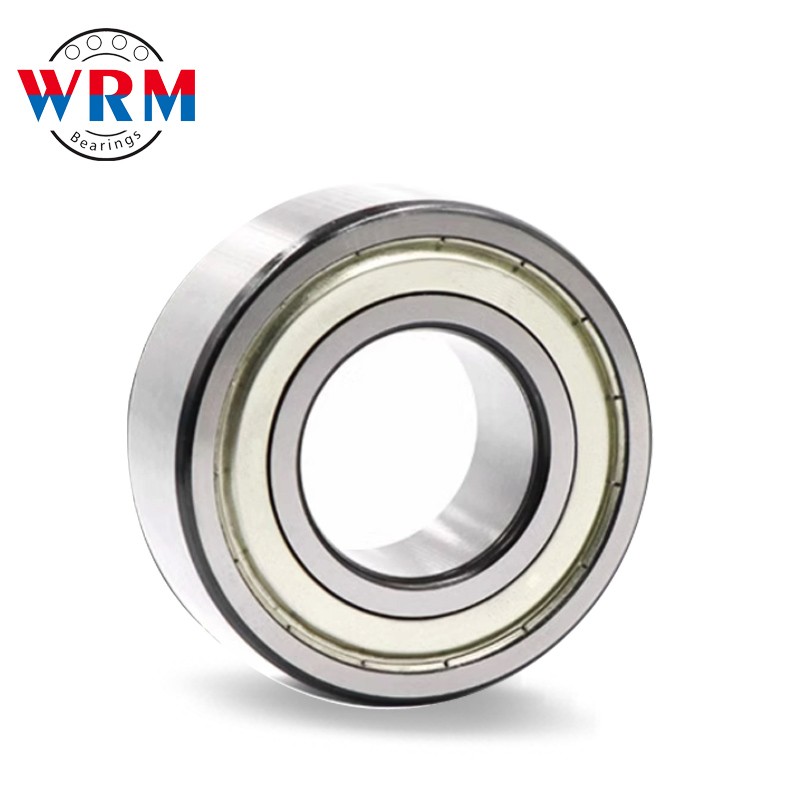

Double row Angular Contact Ball Bearing

Angular Contact Ball Bearing 3200 series

Product name:Angular Contact Ball Bearing
cage:A A-2Z A-2RS1 BD-XL BD-XL-2HRS BD-XL-2Z BTNG 2RSRTNG 2ZTNG
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
3200	3056200	10	30	14.3	7.35	5.35	15000	28000	0.052
3201	3056201	12	32	15.9	9.7	7.15	14000	18000	0.063
3202	3056202	15	35	15.9	9.7	7.45	12000	16000	0.072
3203	3056203	17	40	17.5	13.8	10.8	11000	14000	0.1
3204	3056204	20	47	20.6	17.2	15	9000	12000	0.17
3205	3056205	25	52	20.6	18.9	18.2	7800	10000	0.19
3206	3056206	30	62	23.8	27.3	27	6500	8700	0.32
3207	3056207	35	72	27	36.8	37.5	5600	7500	0.48
3208	3056208	40	80	30.2	42	43.9	5000	6700	0.65
3209	3056209	45	85	30.2	45.4	51.4	4600	6100	0.71
3210	3056210	50	90	30.2	45.1	52.1	4300	6100	0.76
3211	3056211	55	100	33.3	50.9	60.2	3900	5700	1.05
3212	3056212	60	110	36.5	64	76.8	3500	5100	1.4
3213	3056213	65	120	38.1	76.4	97.4	3200	4700	1.75
3214	3056214	70	126	39.7	77.9	96.4	3100	4300	1.92
3215	3056215	75	130	41.3	82	115	3200	4100	2.09
3216	3056216	80	140	44.4	97.5	121	2700	4300	2.64
3217	3056217	85	150	49.2	114	143	2500	3600	3.39
3218	3056218	90	160	52.4	132	167	2400	3400	4.14
3219	3056219	95	170	55.6	156	146	2600	3200	4.67
3220	3056220	100	180	60.3	178	166	2800	3000	5.54
3222	3056222	110	200	69.8	212	212	3000	2800	7.99
3224	3056224	120	215	76	235	238	3200	2600	11.6
3226	3056226	130	230	80	256	252	3300	2500	14.5
