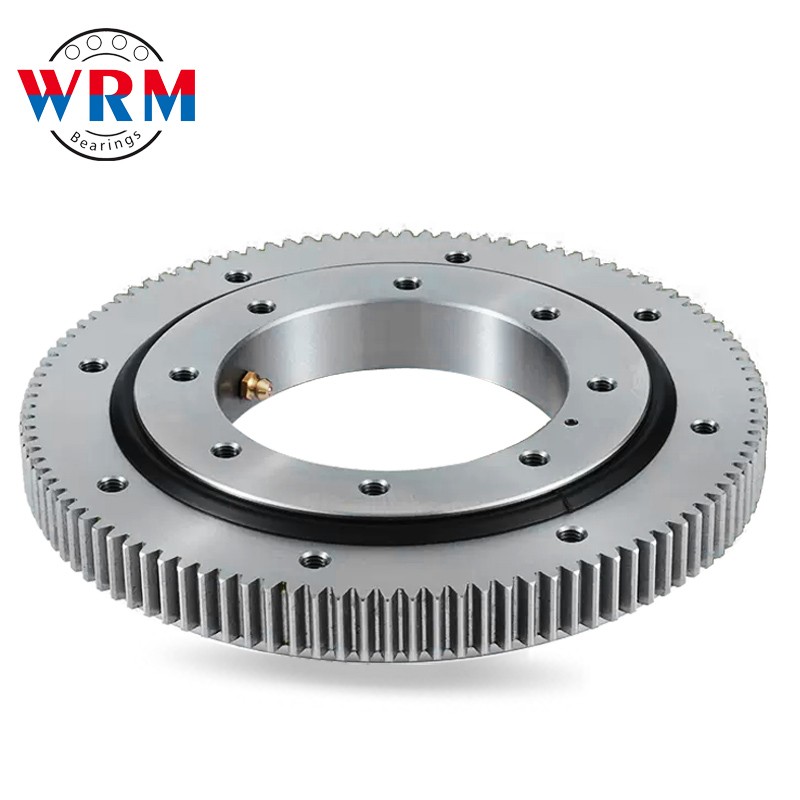

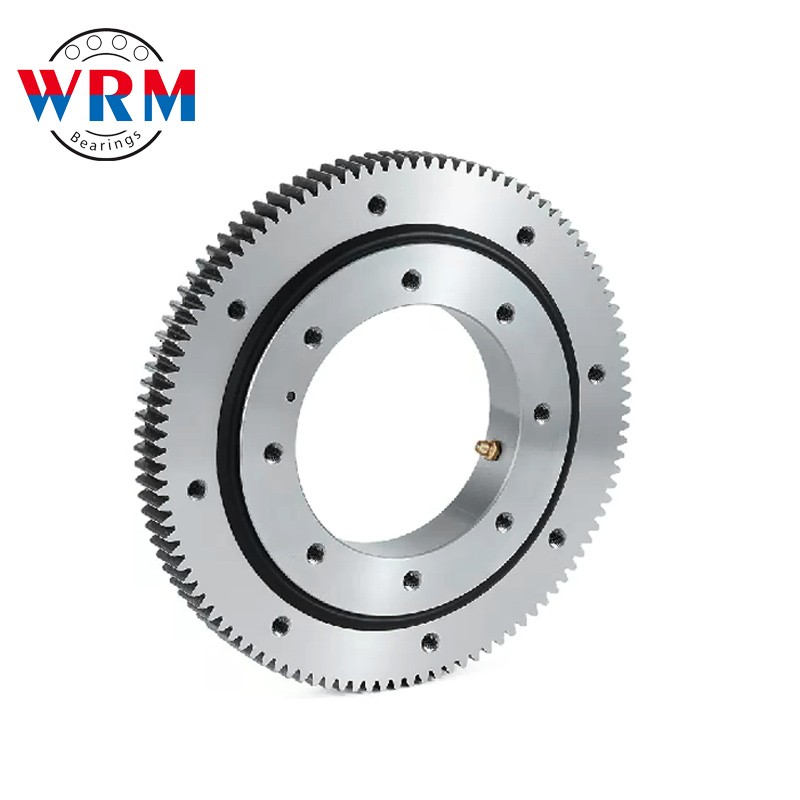

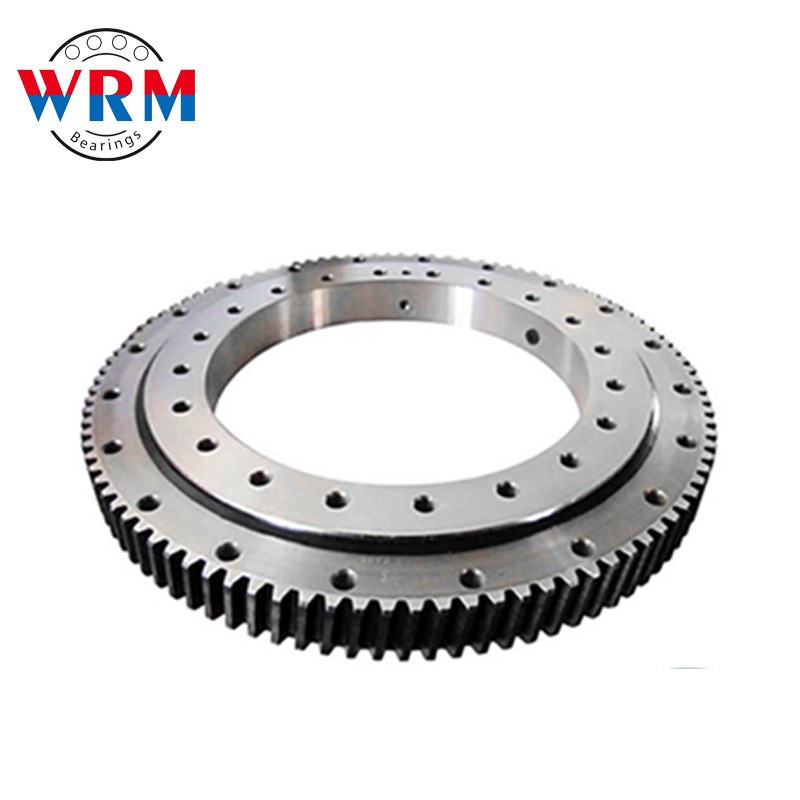

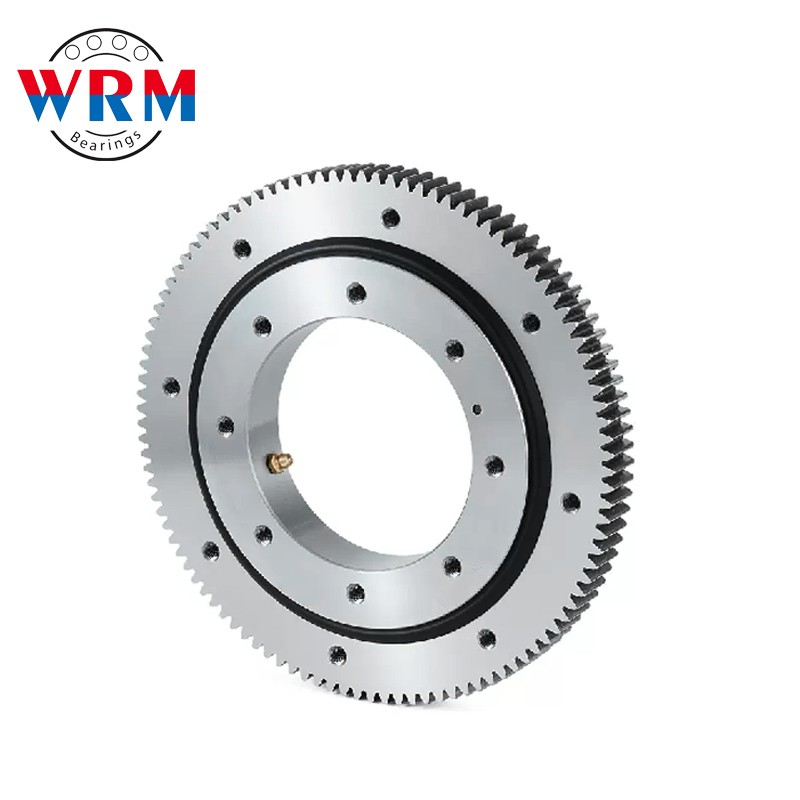

Slewing Bearing XA series

Slewing Bearing XA series

Slewing Bearing XA series

Product name：Slewing Bearing
clearance：0.4-0.2
Material:50Mn 42CrMo

INQUIRY

Product Details

Product Tags

slewing bearing5.jpg slewing bearingXA.jpg

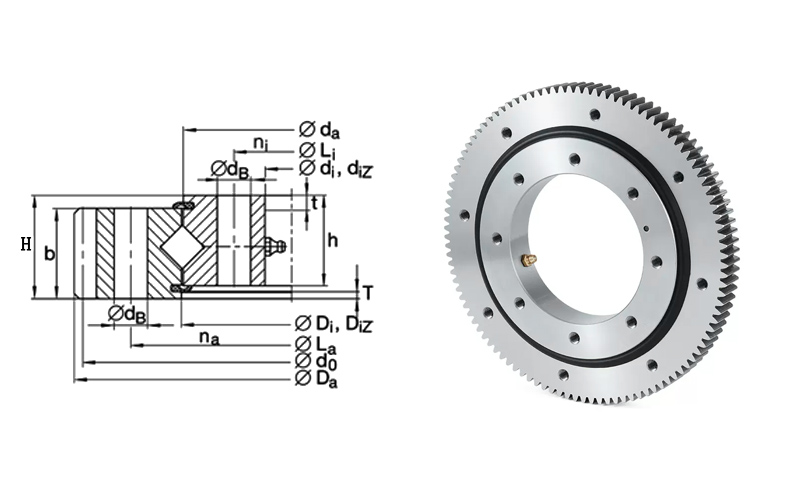

Designation	Dimensions (mm)								Gear teeth				Weight
Designation	Dimensions (mm)								Gear teeth				Weight
INA	Da	di	La	na	dB	Li	H	h	do	m	z	b	kg
INA	Da	di	La	na	dB	Li	H	h	do	m	z	b	kg
XA120235N	318.4	171	275	12	13	195	40	35	35	312	4	78	13
XA180309N	408.4	235	359	24	13	259	60	52.5	52.5	400	5	80	30
XA160407N	503.3	335	455	30	13	359	50	15	45	495	5	99	33
XA260475N	598.2	382	540	36	16	410	65	60	60	588	6	98	64
XA140540N	640.3	471	585	40	13	495	48	11	41	630	6	105	39
XA260560N	708	456	624	28	18	496	68	51	61	690	10	69	90
XA240574N	695	480	640	18	18	508	77	42	42	685	5	137	84
XA160596N	712.3	510	650	24	18	542	55	48	48	702	6	117	63
XA140640N	742.3	571	685	44	13	595	50	43	43	732	6	122	50
XA240685N	830.1	577	753	24	22	617	68	31	61	816	8	102	115
XA200720N	844.3	630	780	30	18	662	59	52	52	834	6	139	87
XA140753N	862.3	674	800	28	18	706	50	43	43	852	6	142	65
XA200810N	964	30	870	24	18	762	90	73	73	944	8	118	158
XA200818N	940.1	728	875	36	18	760	60	53	53	930	6	155	100
XA280845N	1008	30	920	40	22	770	87	80	80	990	10	99	200
XA220895N	1038.1	790	960	32	22	830	68	61	61	1024	8	128	145
XA280995N	1158	82	1068	40	22	922	83	73	73	1140	10	114	212

slewing bearing 5.jpg

PREVIOUS：Radial spherical plain bearing GEEW10ES

NEXT：Slewing Bearing VSI series

Tags: Slewing Bearing，XA series
