Slewing Bearing VSI series

Slewing Bearing VSI series

Slewing Bearing VSI series

Product name：Slewing Bearing
clearance：0.4-0.2
Material:50Mn 42CrMo

INQUIRY

Product Details

Product Tags

slewing bearing5.jpg slewing bearingVSI.jpg

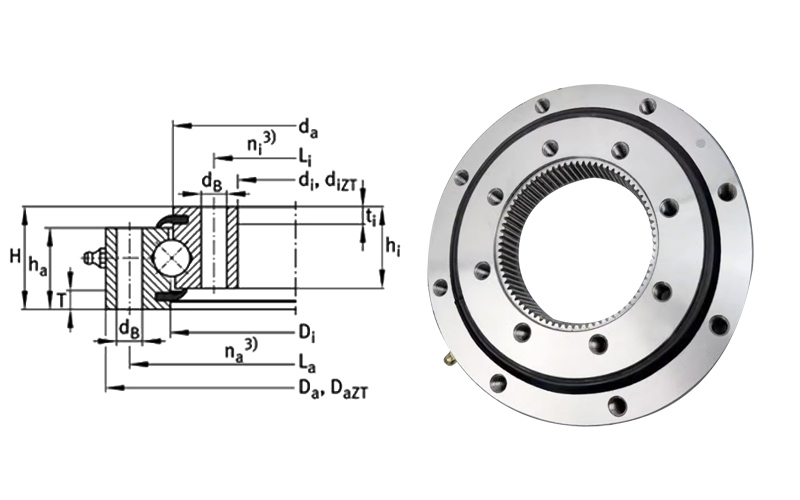

Designation						Dimensions (mm)			Gear teeth			Weight
INA	SKF	IMO	Mijnsbergen	Rothe Erde	Rollix	Da	di	Li	d	m	z	kg
INA	SKF	IMO	Mijnsbergen	Rothe Erde	Rollix	Da	di	Li	d	m	z	kg
VSI200414	RKS.062.20.0411	12-200412	I.486.20.00.B	062.20.0114	32-0411-01	486	325	375	335	5	67	31
VSI200544	RKS.062.20.0544	12-200541	I.616.20.00.B	062.20.0544	32-0541-01	616	444	505	456	6	76	42
VSI200644	RKS.062.20.0644	12-200641	I.716.20.00.B	062.20.0644	32-0641-01	716	546	605	558	6	93	50
VSI200744	RKS.062.20.0744	12-200741	I.816.20.00.B	062.20.0744	32-0741-01	816	648	705	660	6	110	58
VSI200844	RKS.062.20.0844	12-200841	I.916.20.00.B	062.20.0844	32-0841-01	916	736	805	752	8	94	59
VSI200944	RKS.062.20.0944	12-200941	I.1016.20.00.B	062.20.0944	32-0941-01	1016	840	905	856	8	107	76
VSI201094	RKS.062.20.1094	12-201012	I.1166.20.00.B	062.20.1094	32-1091-01	1116	984	1055	1000	8	125	91

slewing bearing 5.jpg
