Thrust ball bearing 53200 series

Thrust ball bearing 53200 series

Thrust ball bearing 53200 series

Product name：Thrust ball bearing
cage:M MP
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

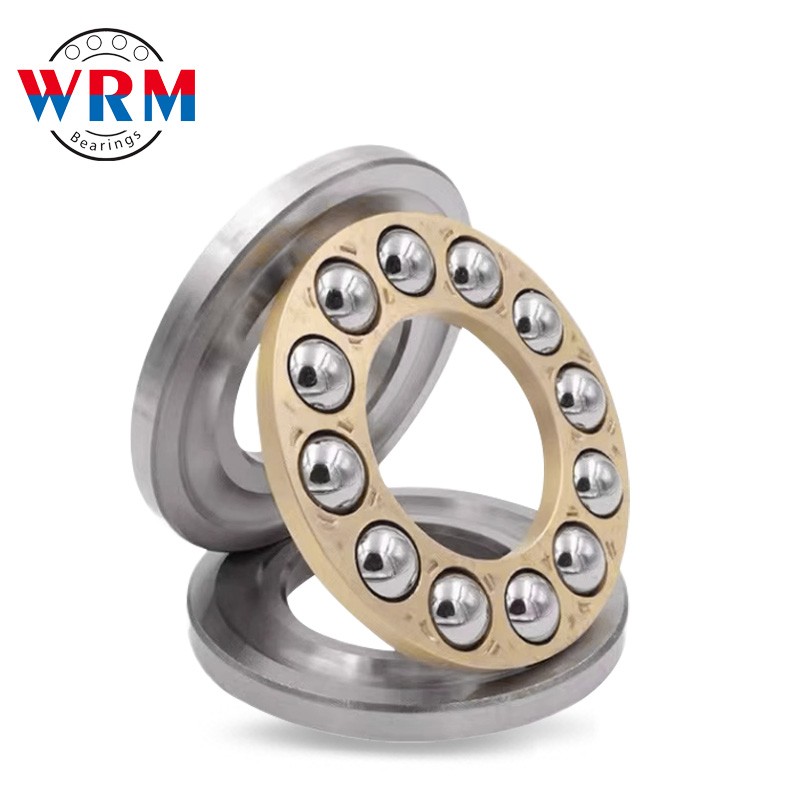

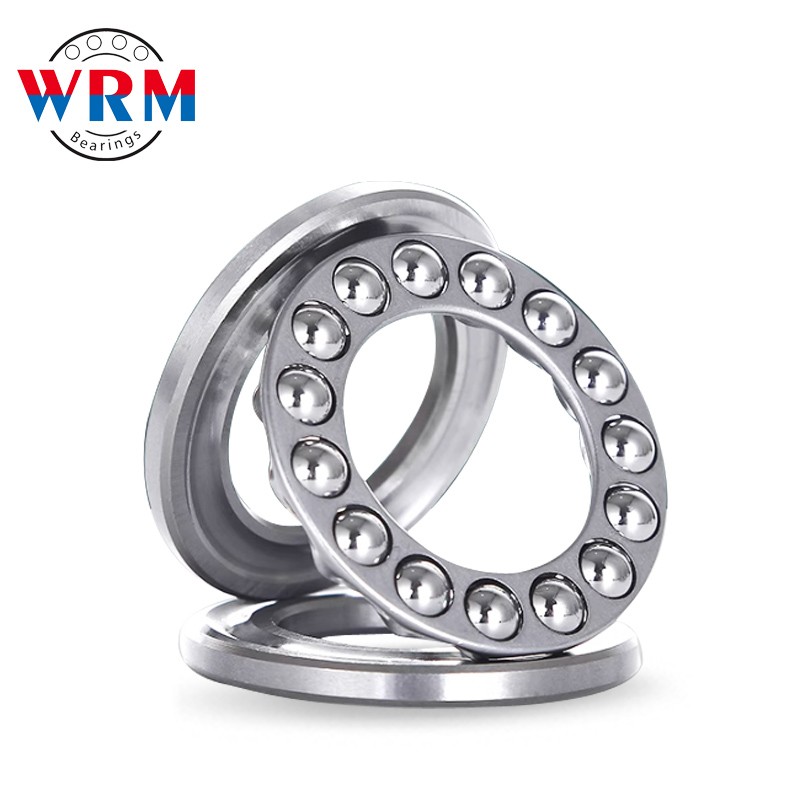

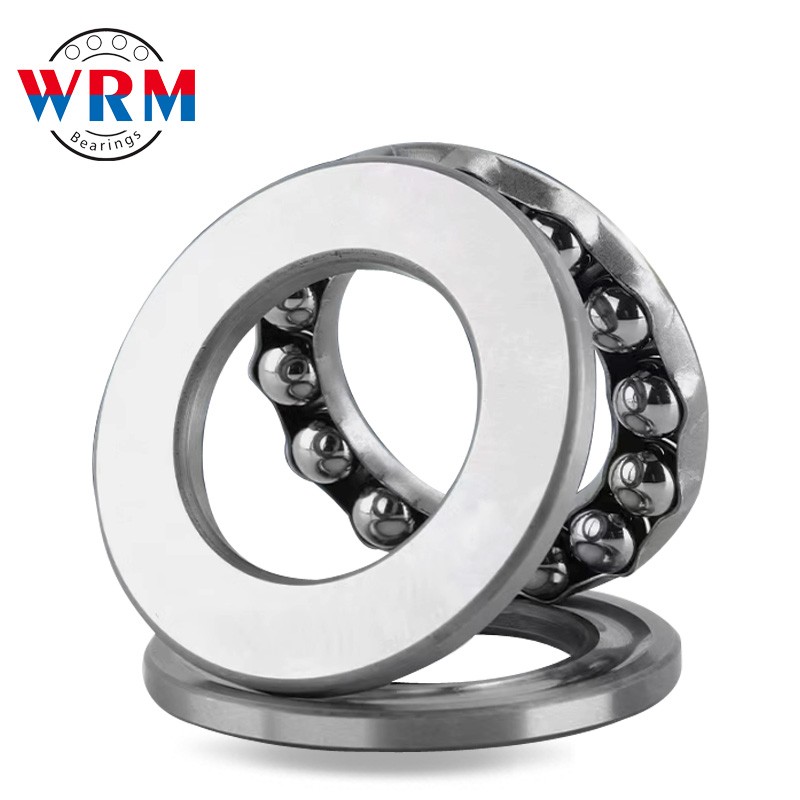

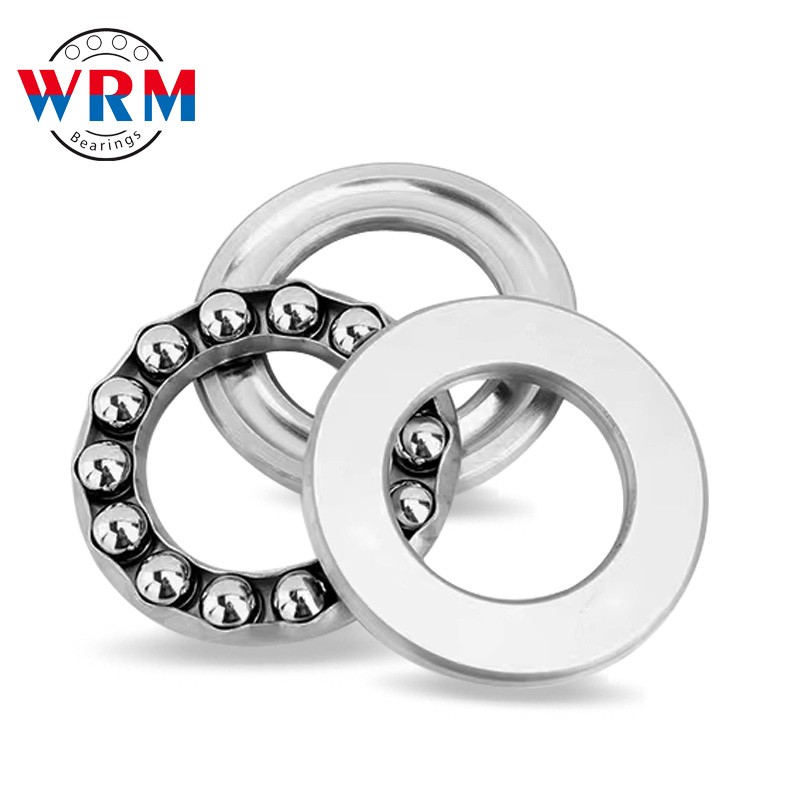

Thrust ball bearing4.jpg Thrust ball bearing1.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
53210U	18210	50	78	26	48.5	111	2300	3600	0.48
53211U	18211	55	90	30	69.4	159	2100	3200	0.77
53212U	18212	60	95	31	73.6	179	1900	3000	0.85
53213U	18213	65	100	32	74.8	189	1900	2900	0.93
53214U	18214	70	105	32	73.6	189	1800	2800	0.99
53215U	18215	75	110	32	77.4	209	1800	2700	1.06
53216U	18216	80	115	33	78.5	218	1700	2600	1.15
53217U	18217	85	125	37	92.3	251	1500	2300	1.57
53218U	18218	90	135	42	117	326	1400	2100	2.19
53220U	18220	100	150	45	147	410	1200	1900	2.84
53222U	18222	110	160	45	148	431	1200	1800	3.06
53224U	18224	120	170	46	154	472	1100	1700	3.46
53226U	18226	130	190	53	203	622	970	1500	4.88
53228U	18228	140	200	55	215	669	940	1450	5.89
53230U	18230	150	215	60	244	768	840	1300	7.14
53232U	18232	160	225	61	247	803	810	1250	7.9
53234U	18234	170	240	65	269	874	750	1150	9.83
53238U	18238	190	270	73	298	1010	650	1000	13.9
53244U	18244	220	300	75	350	1200	630	950	20.9
53248U	18248	240	340	92	400	1500	600	900	25.6
53252U	18252	260	360	93	450	1600	550	850	28.5
53256U	18256	280	380	94	550	1800	520	800	32
53260U	18260	300	420	100.5	750	1950	500	750	39.5
53264U	18264	320	440	112	1000	2100	450	700	52
53268U	18268	340	460	113	1200	2300	400	650	55
53272U	18272	360	500	130	1500	2500	380	600	82

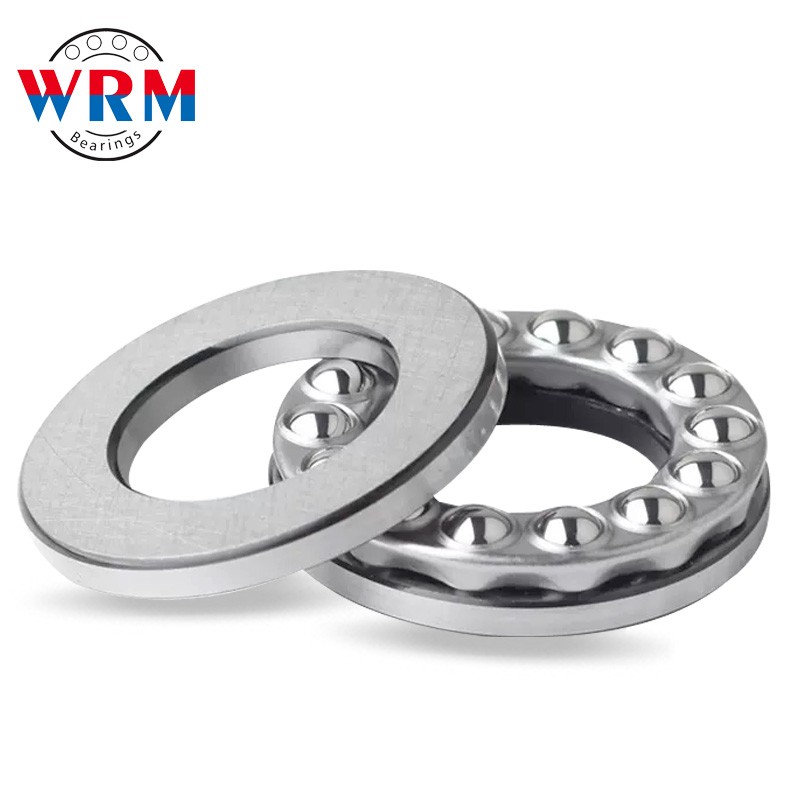

Thrust ball bearing5.jpg

PREVIOUS：Thrust ball bearing 53300U series

NEXT：Thrust ball bearing 52400 series

Tags: Thrust ball bearing
