Thrust ball bearing 51100 series

Thrust ball bearing 51100 series

Thrust ball bearing 51100 series

Product name：Thrust ball bearing
cage:M MP
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

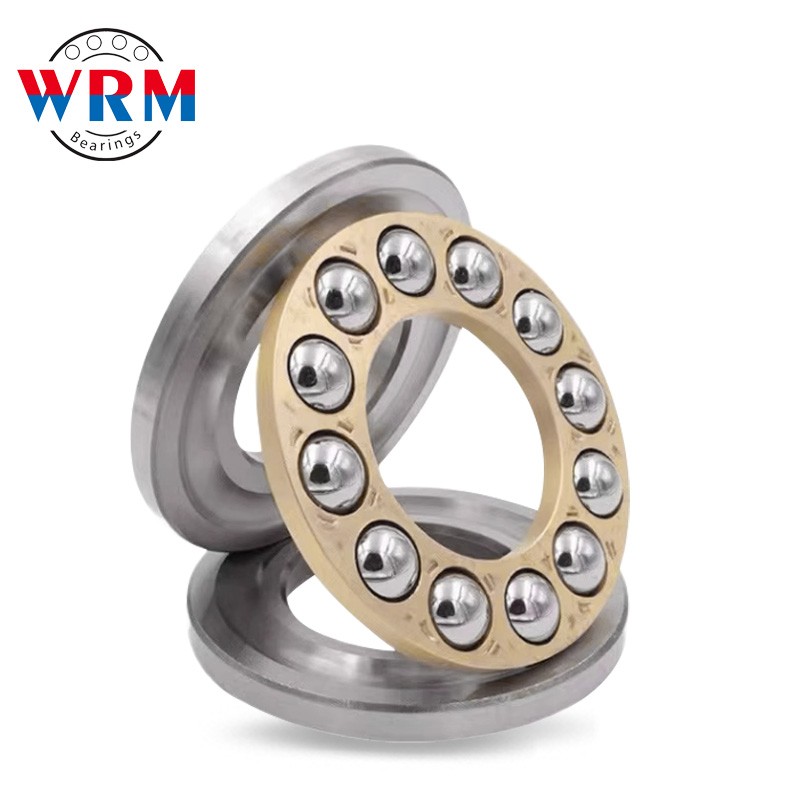

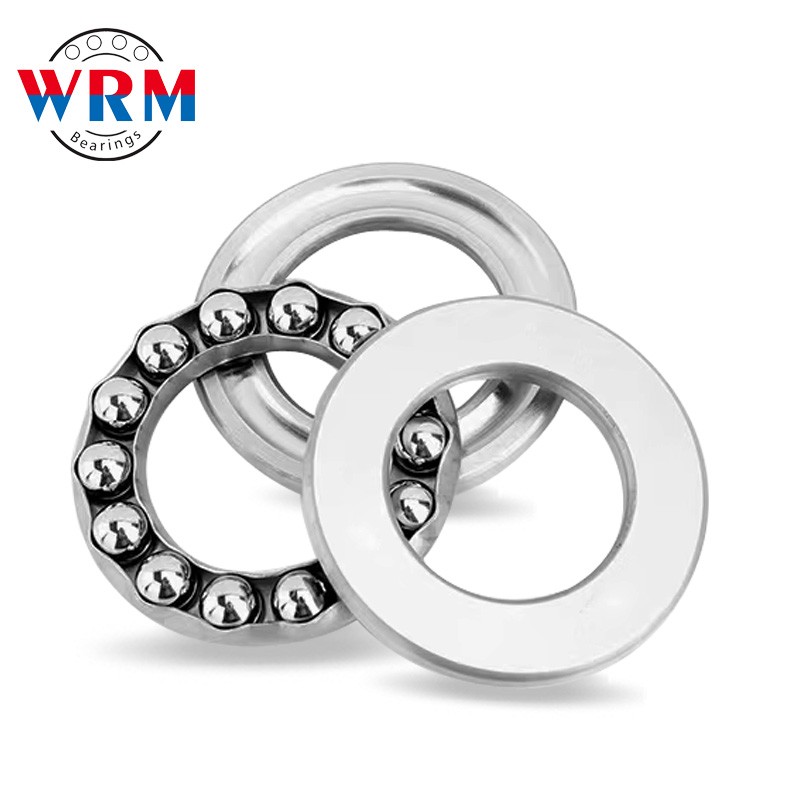

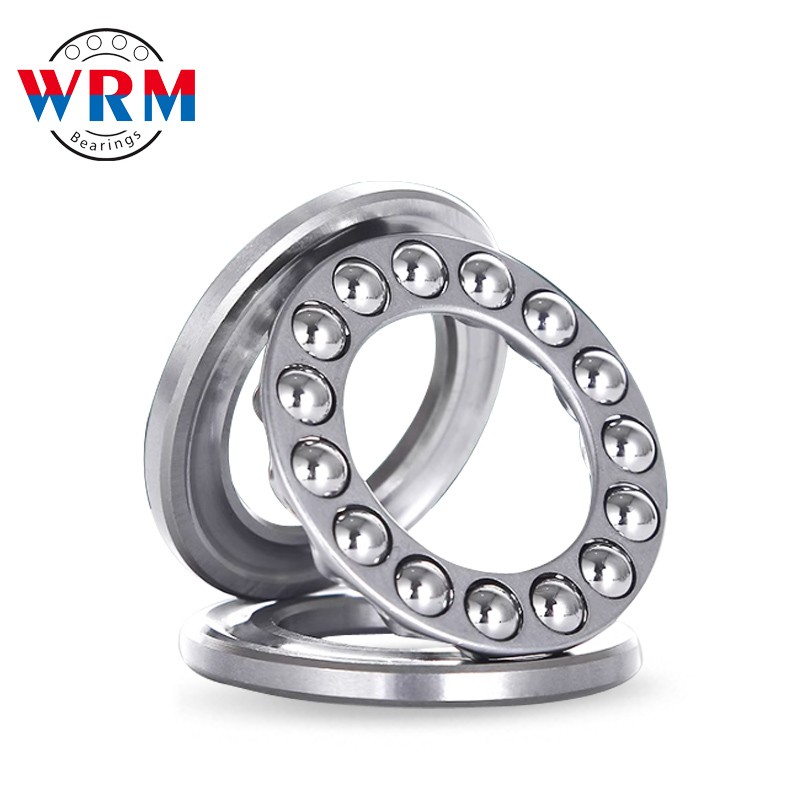

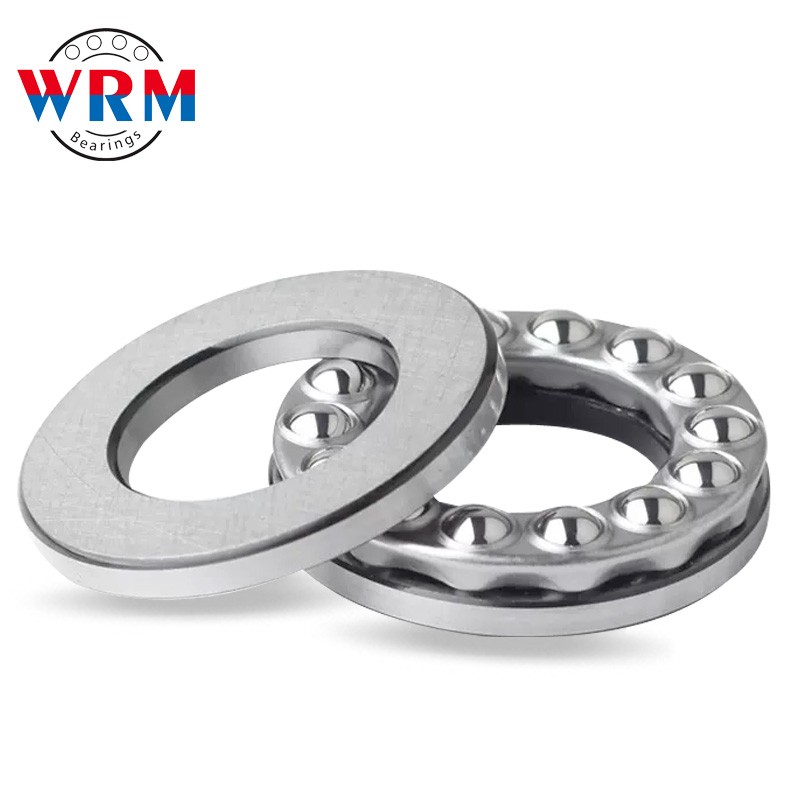

Thrust ball bearing4.jpg Thrust ball bearing1.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
51110	8110	50	70	14	28.8	75.4	3100	4800	0.16
51111	8111	55	78	16	30.5	75	3400	6100	0.24
51112	8112	60	85	17	41.4	113	2600	4000	0.29
51113	8113	65	90	17	41.7	117	2400	3700	0.34
51114	8114	70	95	18	43	127	2300	3600	0.36
51115	8115	75	100	19	42.3	127	2200	3400	0.42
51116	8116	80	105	19	44.6	141	2100	3300	0.43
51117	8117	85	110	19	45.9	150	2100	3200	0.46
51118	8118	90	120	22	59.7	190	1900	2900	0.68
51120	8120	100	135	25	85	268	1600	2500	0.99
51122	8122	110	145	25	87.1	288	1600	2400	1.08
51124	8124	120	155	25	89	308	1500	2300	1.16
51126	8126	130	170	30	104	352	1300	2000	1.87
51128	8128	140	180	31	107	377	1200	1900	2.2
51130	8130	150	190	31	109	402	1200	1900	2.15
51132	8132	160	200	31	112	427	1200	1800	2.28
51134	8134	170	215	34	134	512	1100	1700	3.25
51136	8136	180	225	34	135	528	1000	1600	3.39
51138	8138	190	240	37	170	657	970	1500	3.95
51140	8140	200	250	37	172	677	940	1450	4.13
51144	8144	220	270	37	177	739	880	1350	4.5
51148	8148	240	300	45	241	1020	750	1150	7.38
51152	8152	260	320	45	231	990	710	1100	7.93
51156	8156	280	350	53	329	1430	640	900	12
51160	8160	300	380	62	363	1610	540	810	17.5
51164	8164	320	400	63	360	1750	1200	1090	23.2
51168	8168	340	420	64	380	1810	1160	1020	19.6
51172	8172	360	440	65	405	2020	1110	930	21
51176	8176	380	460	65	430	2230	1070	860	21.84
51180	8180	400	480	65	435	2340	1040	810	23.1
51184	8184	420	500	65	440	2440	1000	760	25
51188	8188	440	540	80	530	3000	900	740	40
51192	8192	460	560	80	530	3100	880	700	41
51196	8196	480	580	80	540	3250	850	660	43.1

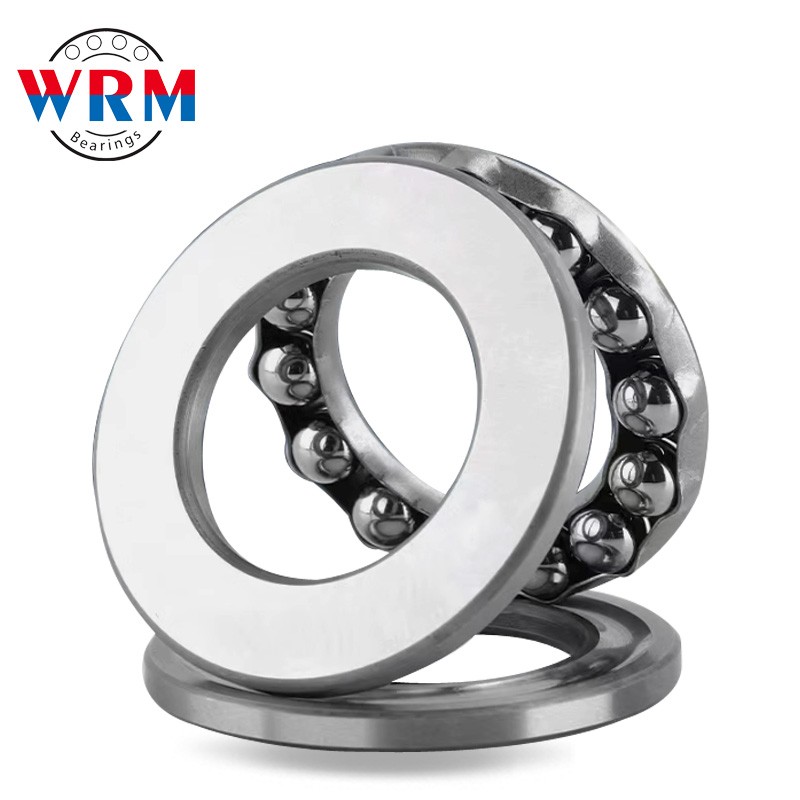

Thrust ball bearing5.jpg
