Product name：Slewing Bearing
clearance：0.4-0.2
Material:50Mn 42CrMo

INQUIRY

Product Details

Product Tags

slewing bearing5.jpg slewing bearing3.jpg

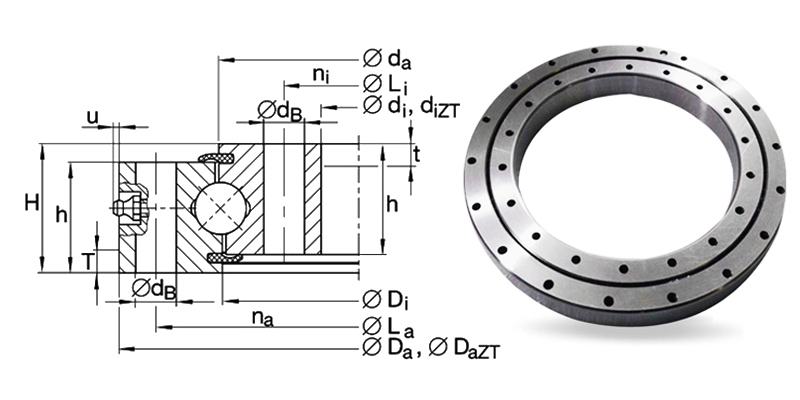

Designation	Principal Dimension										Weight
Designation	Da	di	La	Db	na	Li	H	h	Di	da	kg
VU140179	234	124.5	214	11	12	144.5	35	30	178	180	7
VU200220	302	138	270	18	10	170	46	41	219	221	16
VU200260	329	191	305	14	20	215	46	41	250	261	15
VU250380	485	275	453	18	16	307	55	50	379	381	45
VU200405	474	336	450	14	30	360	46	41	404	406	25
VU250412	501	324	469	18	18	356	55	50	411	413	40
VU250433	522	344	490	18	20	376	55	50	432	434	42
VU300460	568	356	524	22	18	396	64	59	458	462	64
VU250475	562	388	530	26	20	420	55	50	474	476	46
VU400515	646	384	598	18	18	432	86	79	513	517	115
VU360545	655	435	615	22	24	475	79	72	643	547	94
VU300574	680	468	640	22	20	508	68	61	572	576	82
VU400586	704	468	664	22	36	508	86	79	584	588	115
VU360680	795	565	755	22	30	605	79	72	678	682	120
VU400785	900	670	860	22	36	710	86	79	783	787	155
VU360823	933	713	893	22	36	753	79	72	821	825	140
VU200897	976	818	944	18	36	850	50	43	896	898	67
VU360980	1090	870	1050	22	44	910	79	72	978	982	165
VU451117	1238	995	1198	22	60	1035	101	91	1115	1119	265
VU201125	1194	1056	1170	14	80	1080	56	46	1124	1126	71
VU401213	1330	1095	1290	22	56	1135	92	82	1211	1215	255
VU201220	1290	1150	1266	14	84	1176	56	46	1219	1221	85
VU201244	1342	1146	1302	22	30	1186	56	46	1243	1245	125
VU601250	1398	1102	1350	26	60	1150	128	118	1248	1252	470
VU361350	1462	1238	1422	22	56	1278	85	75	1348	1352	235
VU601390	1554	1226	1500	30	48	1280	128	118	1388	1392	590
VU501472	1600	1340	1560	22	52	1384	110	100	1470	1474	420
VU451578	1752	1431	1671	30	44	1485	101	91	1576	1580	460
VU251820	1926	1714	1886	22	40	1754	65	55	1819	1921	240
VU251932	2032	1832	1992	22	52	1872	65	55	1931	1933	235
VU402000	2116	1884	2076	22	92	1924	100	86	1998	2002	430
VU252300	2400	2200	2360	22	60	2240	73	59	2299	2301	300
VU302900	3005	2795	2965	22	100	2835	82	68	2898	2902	460

slewing bearing 5.jpg
