Product name：Ceramic bearing 6400 series
clearance：C0 C3 C4
Material:Ceramic

INQUIRY

Product Details

Product Tags

deep groove ball bearing3.jpg

Ceramic Bearing1.jpg

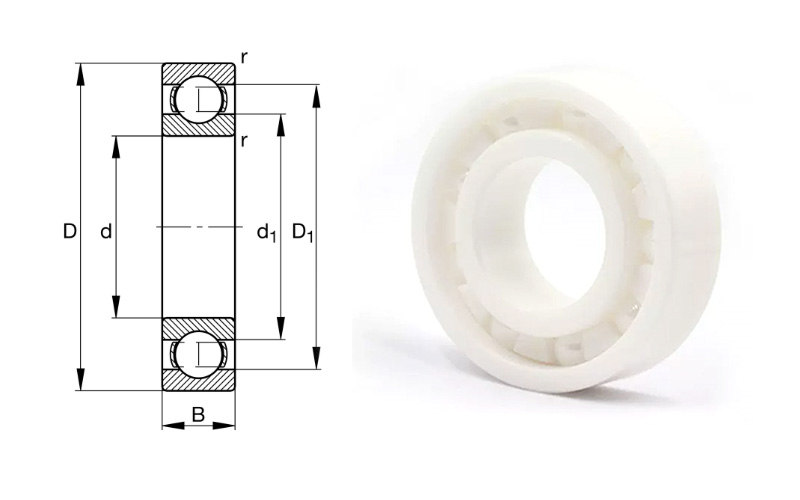

Designation	Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
6410	50	130	31	92	55.2	5300	6300	1.855
6411	55	140	33	100	62.5	4800	6000	2.316
6412	60	150	35	109	70	4500	5600	2.811
6413	65	160	37	118	78.5	4300	5300	3.342
6414	70	180	42	140	99.5	3800	4500	4.896
6415	75	190	45	154	115	3600	4300	5.739
6416	80	200	48	163	125	3400	4000	6.752
6417	85	210	52	175	138	3200	3800	7.933
6418	90	225	54	192	158	2800	3600	9.56
6419	95	240	55	204	171	2600	3400	13.4
6420	100	250	58	223	195	2400	3200	15.4
6422	110	280	65	256	225	2200	3000	18.34
6424	120	310	72	289	253	2000	2800	29
6426	130	340	78	306	284	1900	2600	38

Ceramic Bearing2.jpg
