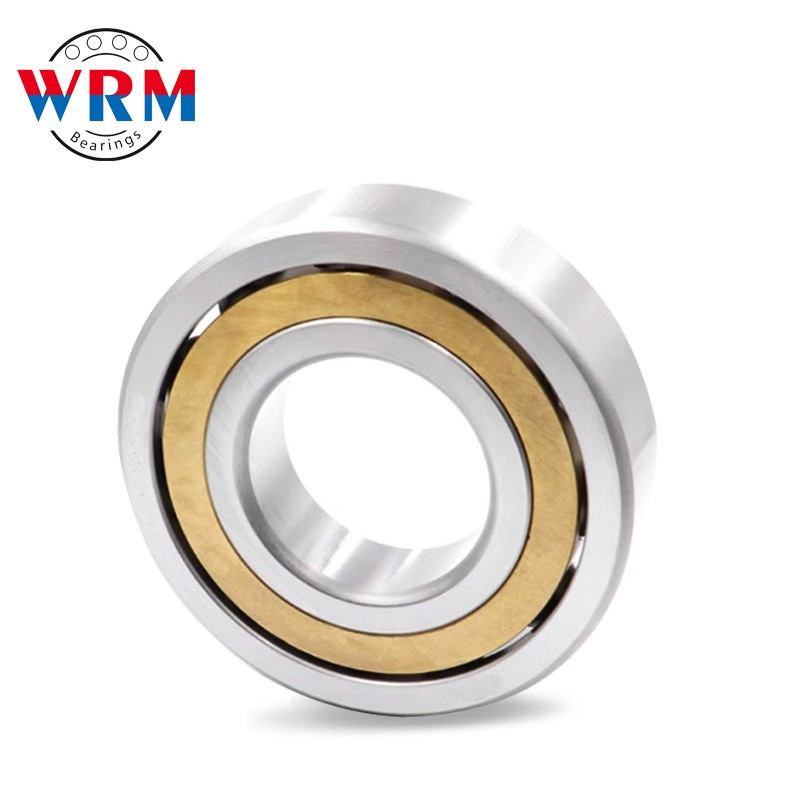

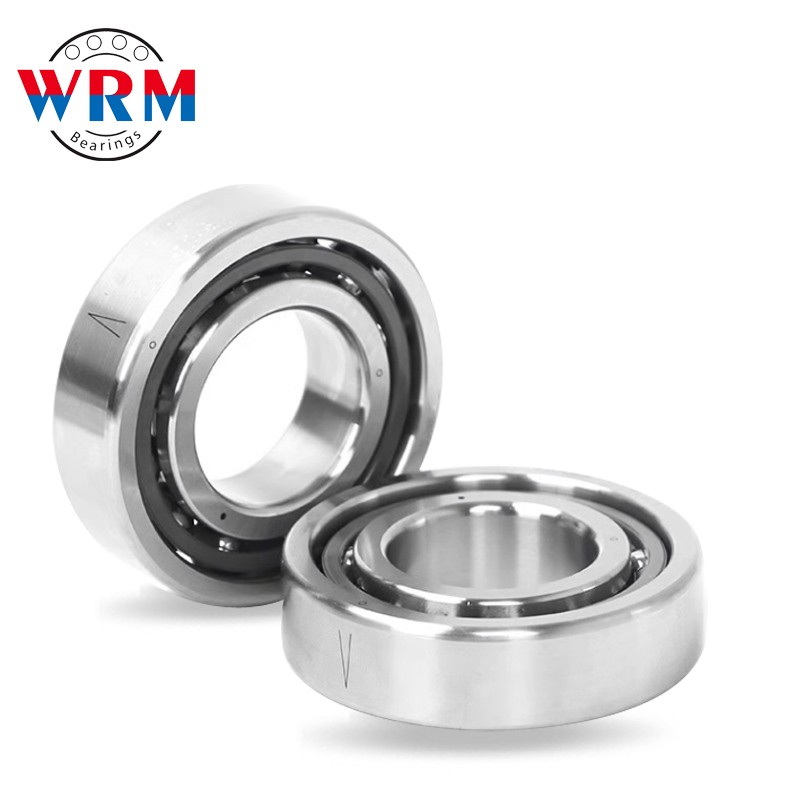

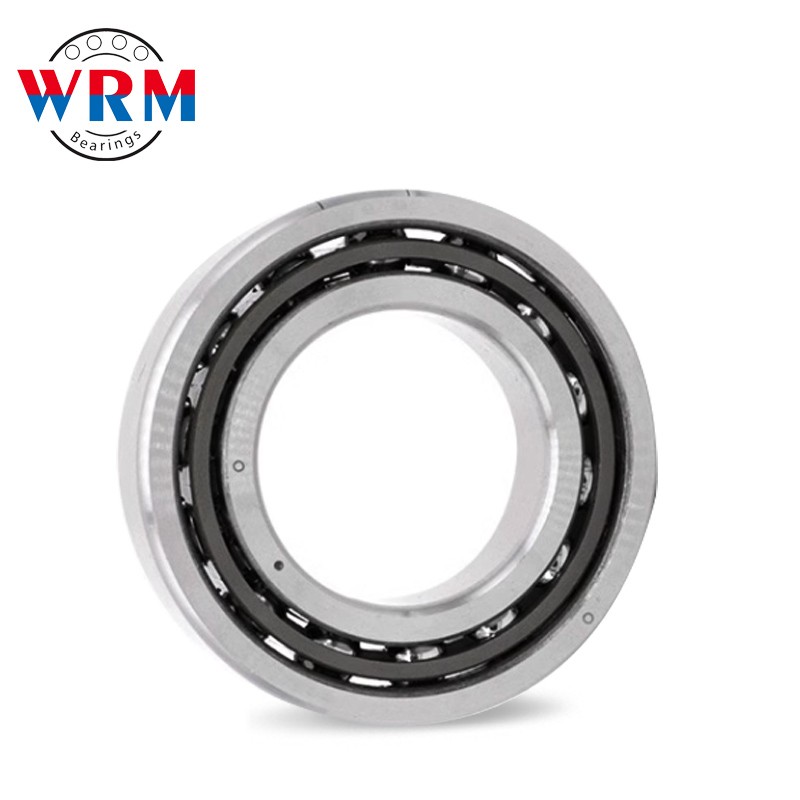

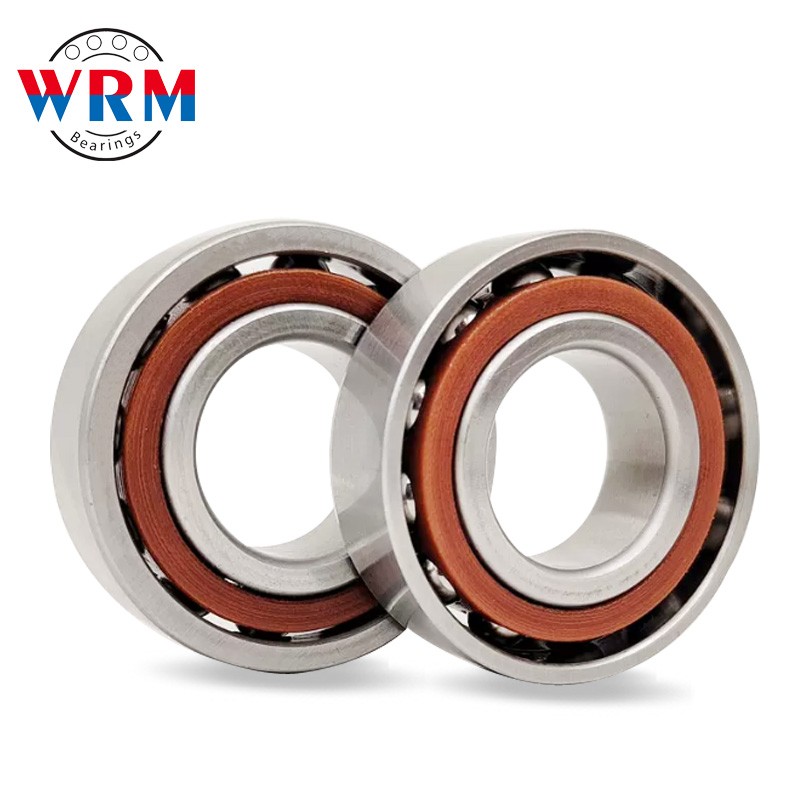

Angular Contact Ball Bearing 7400 series

Product name:Angular Contact Ball Bearing
cage:ACM AC B BM BGM BEP BEGAP BCBM TVP UA UO  AM  AW CTYNSUL
Angle：15 °30 °40 °
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Angular contact ball bearing3.jpg

Designation	Old model	Principal Diension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
7410	46410	50	130	31	96	69	6000	8000	2.105
7411	46411	55	140	33	110	82	6500	7000	2.642
7412	46412	60	150	35	126	93	6000	6500	3.14
7413	46413	65	160	37	130	96.6	5000	6000	4
7414	46414	70	180	42	167	138	4500	5500	5.495
7415	46415	75	190	45	168	140	4300	5300	6.85
7416	46416	80	200	48	200	169	4000	5000	7.758
7417	46417	85	210	52	190	166	3800	4500	9.6
7418	46418	90	225	54	232	206	3500	4000	11.1
7419	46419	95	250	55	242	236	3200	3800	13.5
7420	46420	100	250	58	250	215	3000	3500	15.6
7422	46422	110	280	65	258	225	2800	3200	17.9
7432	46432	160	400	88	2260	235	2600	3000	59.7
