Product name：High temperature bearing 6200 series
clearance：C0 C3 C4
Material:High temperature Chrome Steel

INQUIRY

Product Details

Product Tags

deep groove ball bearing3.jpg

High temperature bearing.jpg

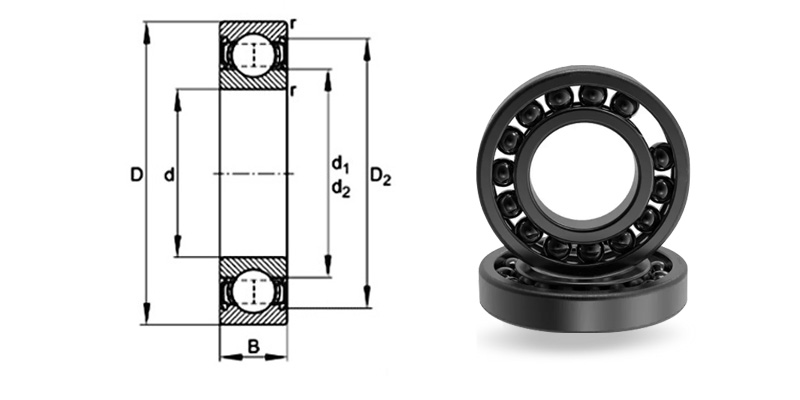

Designation	Principal Dimension（mm）			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
6210	50	90	20	35	23.2	7100	8300	0.46
6211	55	100	21	43.5	29.2	6400	7600	0.61
6212	60	110	22	52.5	36	6000	7000	0.78
6213	65	120	23	57.5	40	5500	6500	0.99
6214	70	125	24	62	44	5100	6000	1.05
6215	75	130	25	66	49.5	4800	5600	1.2
6216	80	140	26	72.5	53	4500	5300	1.4
6217	85	150	28	83.5	64	4200	5000	1.8
6218	90	160	30	96	71.5	4000	4700	2.15
6219	95	170	32	109	82	3700	4400	2.6
6220	100	180	34	122	93	3500	4200	3.15
6221	105	190	36	133	105	3200	4000	3.78
6222	110	200	38	144	117	3000	3800	4.42
6224	120	215	40	155	131	2600	3400	5.3
6226	130	230	40	165	148	2400	3200	6.12
6228	140	250	42	179	167	2000	2800	7.77
6230	150	270	45	203	199	1900	2600	9.78
6232	160	290	48	215	218	1800	2400	12.22
6234	170	310	52	245	260	1700	2200	15.241
6236	180	320	52	262	285	1600	2000	15.518
6238	190	340	55	285	322	1500	1900	18.691
6240	200	360	58	288	332	1400	1800	22.577
6244	220	400	65	355	365	1200	1600	36.5
6248	240	440	72	358	467	1000	1400	53.9

High temperature bearing1.jpg

PREVIOUS：High temperature bearing 6400 series

NEXT：High temperature bearing 6000 series

Tags: Bearing Ball bearing High temperature bearing Ceramic bearing 6200 series
