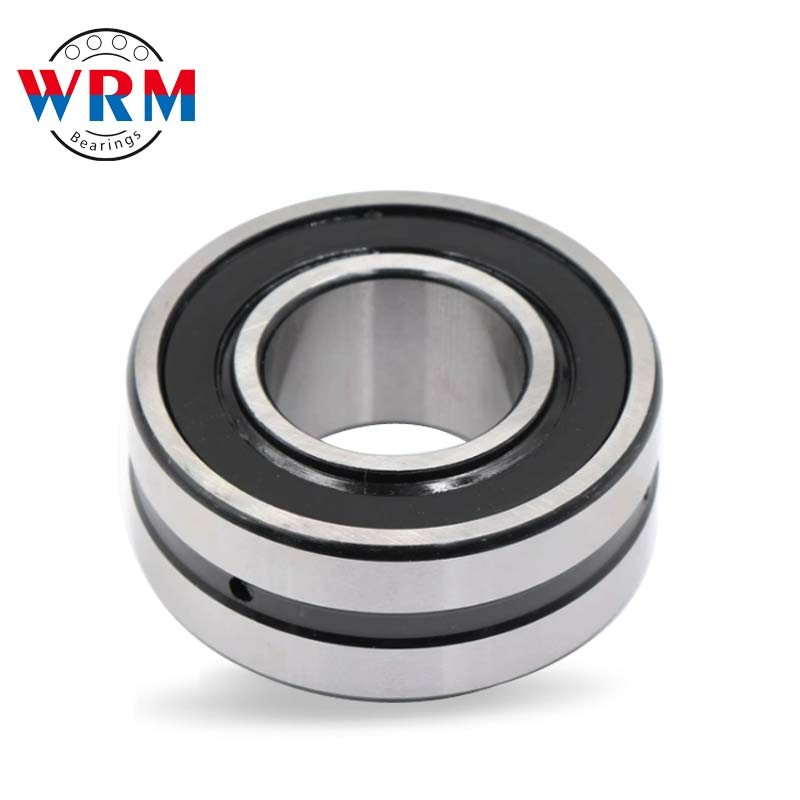

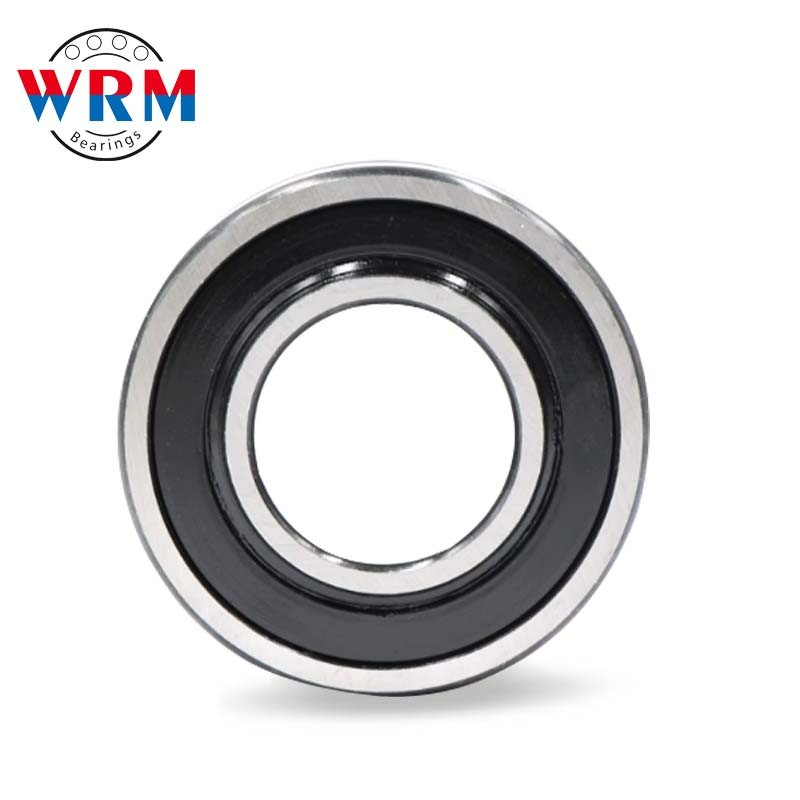

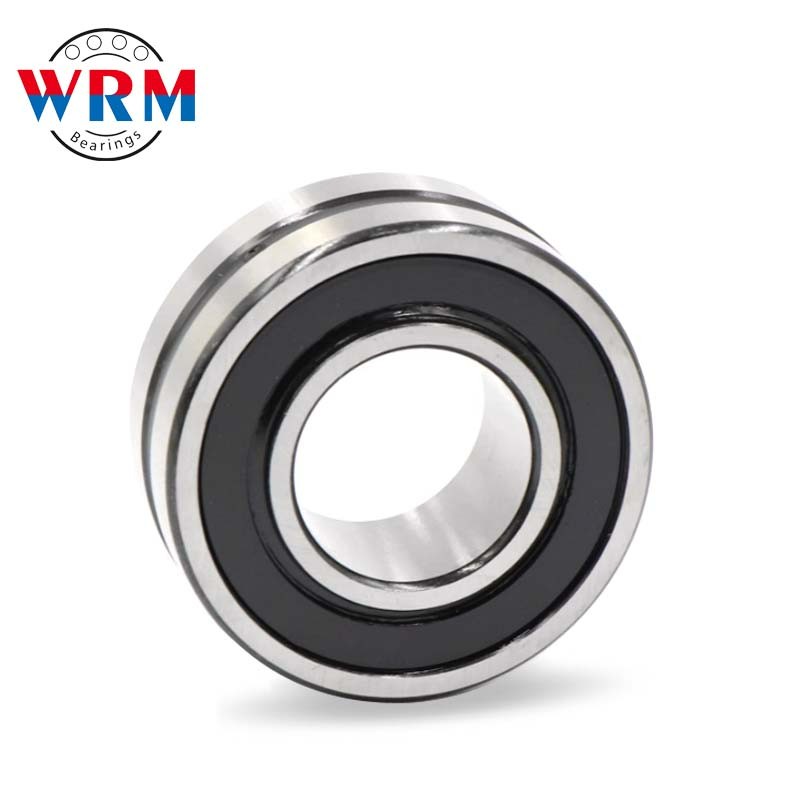

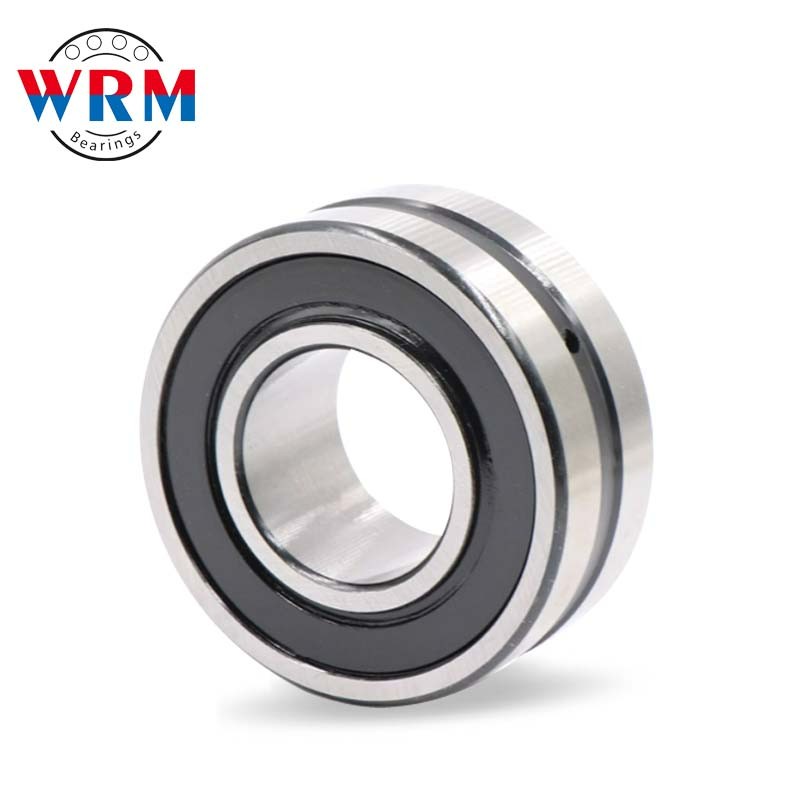

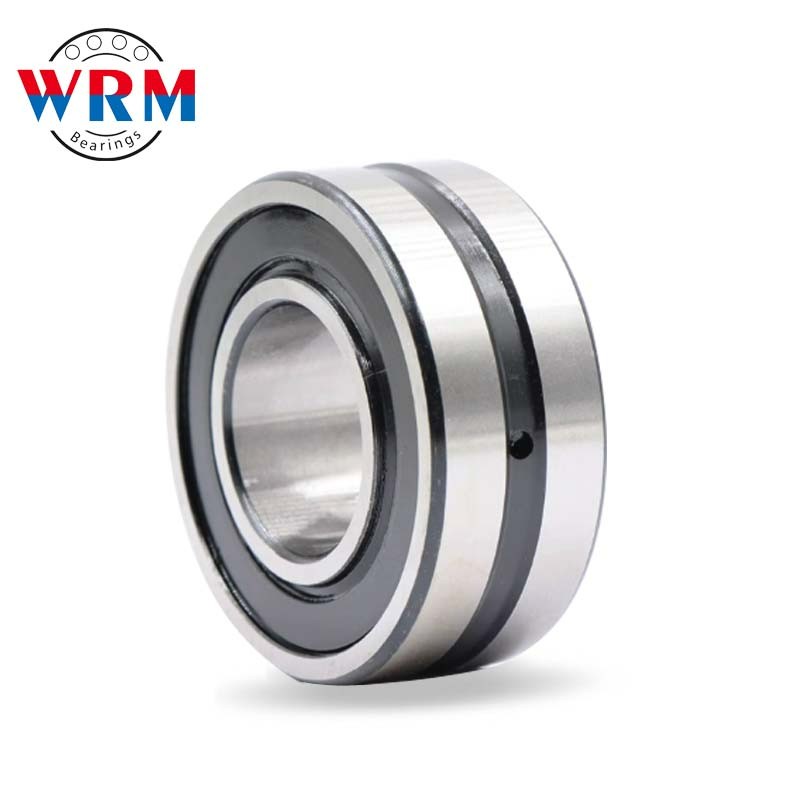

Sealed Spherical roller bearing 23022 series

Sealed Spherical roller bearing 23022 series

Sealed Spherical roller bearing 23022 series

Product name：Spherical roller bearing
cage:  2CS 2RS
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Spherical roller bearingcage.jpg 图纸.jpg

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
23022	110	170	45	400	530	4200	3000	3.5
23024	120	180	46	430	580	3950	2800	4.3
23026	130	200	52	540	730	3600	2600	6.7
23028	140	210	53	570	800	3450	2390	7.04
23030	150	225	56	630	880	3250	2210	8
23032	160	240	60	720	1010	3050	2060	10.2
23034	170	260	67	880	1230	2800	1890	14.2
23036	180	280	74	1040	1450	2600	1760	17.7
23038	190	290	75	1080	1550	2490	1660	19
23040	200	310	82	1270	1800	2330	1550	22.6
23044	220	340	90	1260	1900	2230	1450	31.7
23048	240	360	92	1350	2120	2080	1310	34.2
23052	260	400	104	1000	2450	500	630	51.5
23056	280	420	106	1080	2680	450	560	62
23060	300	460	118	1260	3070	430	530	75.2

Spherical roller bearing1.jpg
