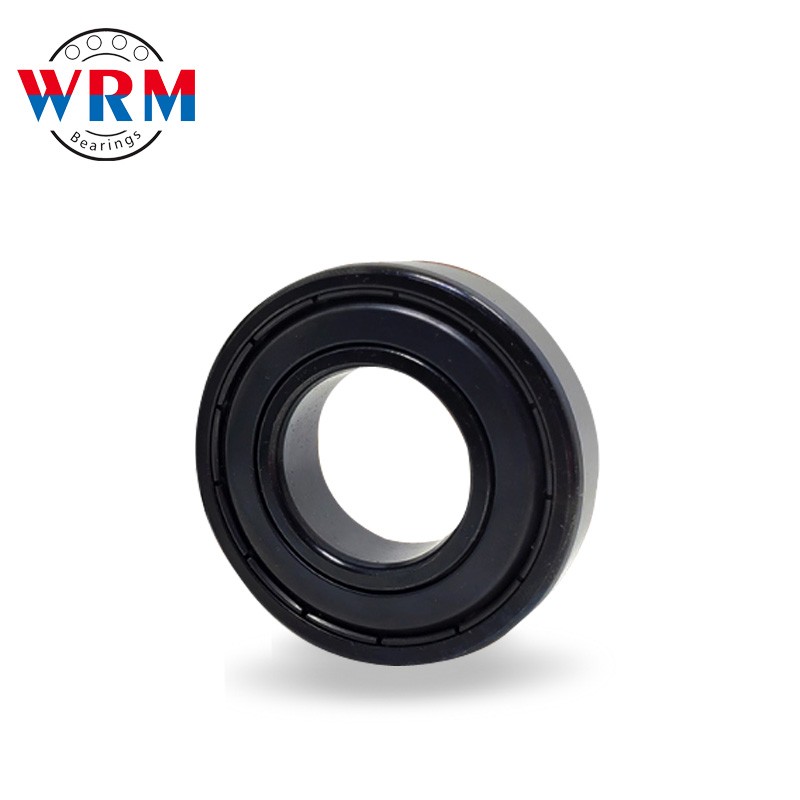

Product name：High temperature bearing 6300 series
clearance：C0 C3 C4
Material:High temperature Chrome Steel

INQUIRY

Product Details

Product Tags

deep groove ball bearing3.jpg

High temperature bearing.jpg

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
6310	50	110	27	62	38.3	6400	7500	1.07
6311	55	120	29	71.6	45	5800	6800	1.37
6312	60	130	31	81.9	52.2	5400	6300	1.7
6313	65	140	33	92.7	59.9	4900	5800	2..08
6314	70	150	35	104	68.2	4600	5400	2.52
6315	75	160	37	113	77.2	4300	5000	3.02
6316	80	170	39	123	86.7	4000	4700	3.59
6317	85	180	41	133	96.8	3800	4500	4.23
6318	90	190	43	143	107	3600	4200	4.91
6319	95	200	45	153	119	3300	3900	5.67
6320	100	215	47	173	141	3200	3700	7
6321	105	225	49	184	153	3000	3600	8.05
6322	110	240	50	205	180	2900	3400	9.54
6324	120	260	55	207	185	2600	3100	12.4
6326	130	280	58	229	214	2400	2800	15.3
6328	140	300	62	253	246	2200	2600	18.5
6330	150	320	65	274	284	2100	2400	22
6332	160	340	68	278	286	1900	2300	26
6334	170	360	72	325	355	1800	2100	30.7
6336	180	380	75	351	405	1700	2000	36.6
6338	190	400	78	371	430	1600	1900	47.5
6340	200	420	80	385	460	1500	1800	56.6
6344	240	500	95	470	620	1400	1700	73
6348	240	500	95	470	620	1300	1600	96.4
6352	260	540	102	520	720	1200	1500	115
6356	280	580	108	570	840	1100	1400	144
6360	300	620	109	593	886	1000	1300	-
6364	320	670	112	634	1010	950	1200	-
6368	340	710	118	704	1160	900	1100	-

High temperature bearing1.jpg
