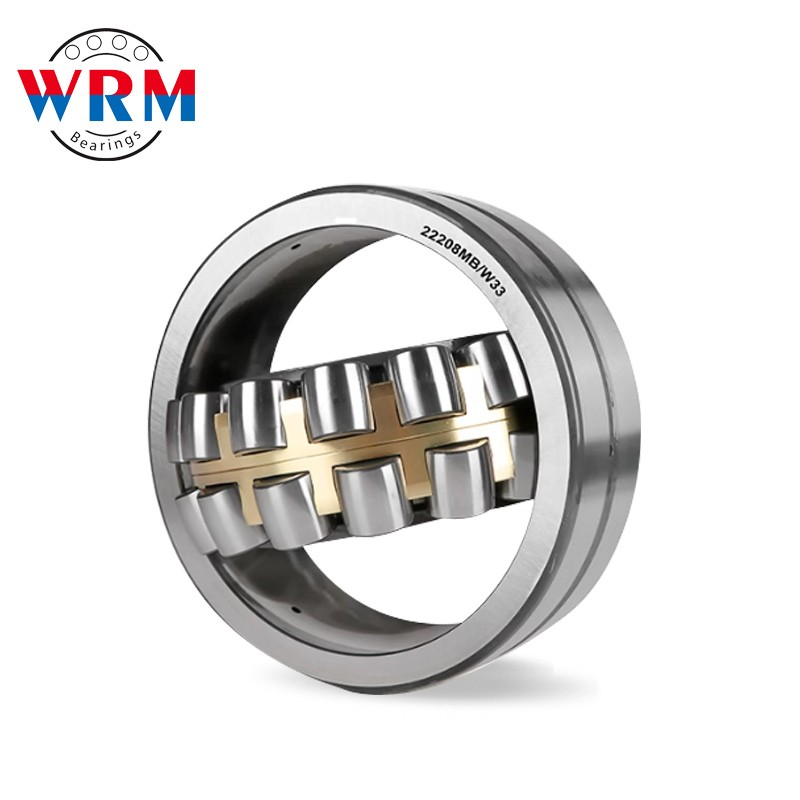

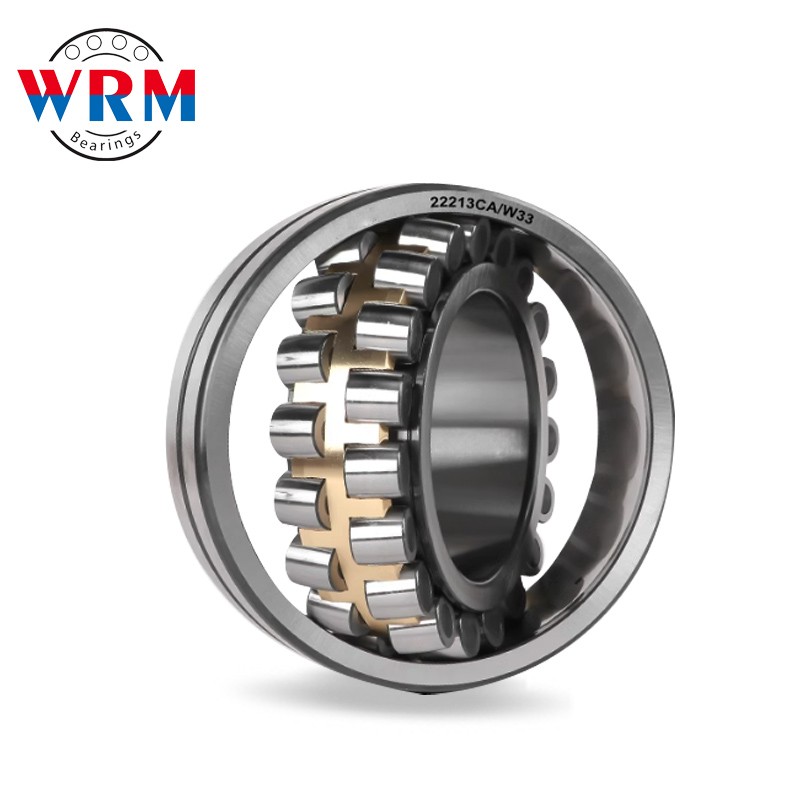

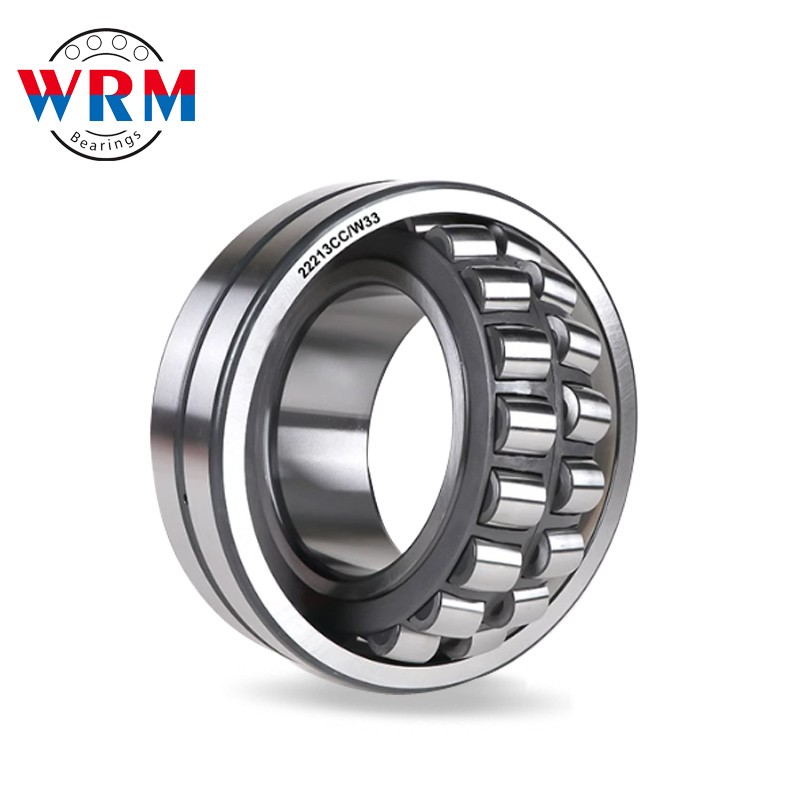

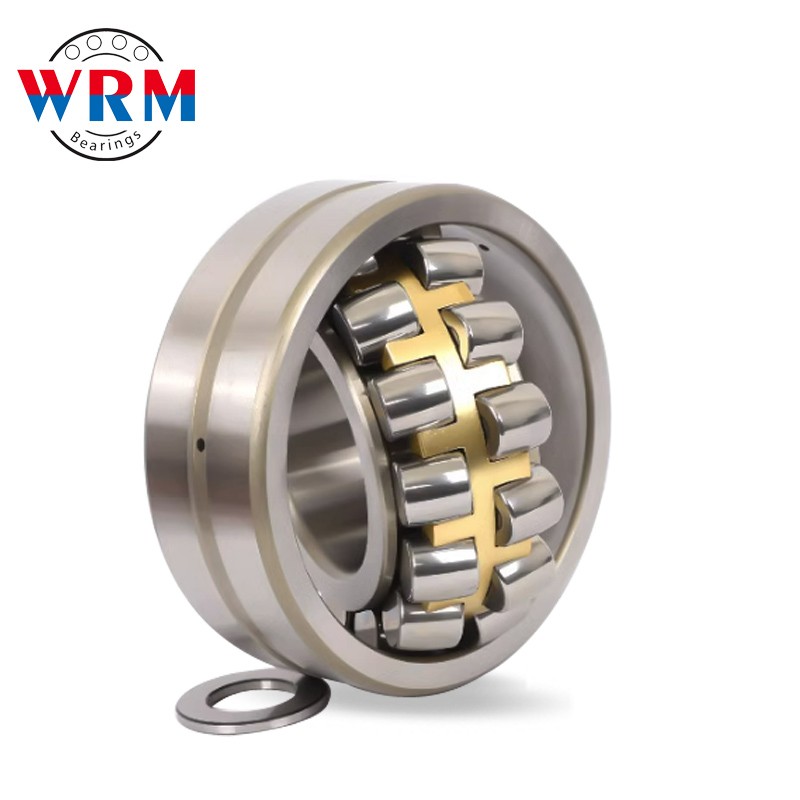

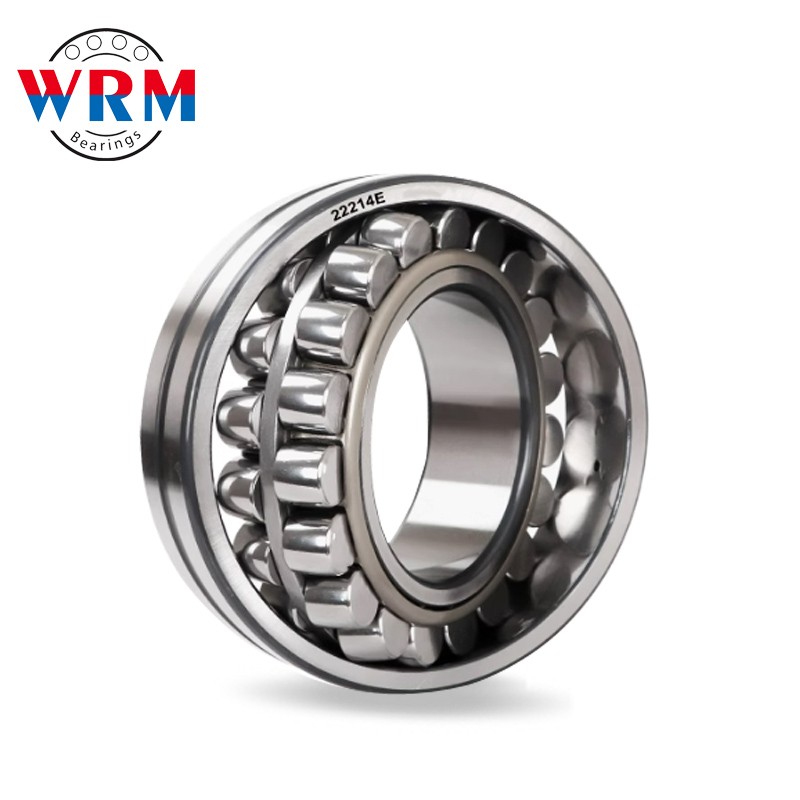

Spherical roller bearing 24010 series

Product name：Spherical roller bearing
cage:  CA CC E MA MB 2RS CCK E1 E1A-XLM CAM K CDE4
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Spherical roller bearingcage.jpg Spherical roller bearing3.jpg

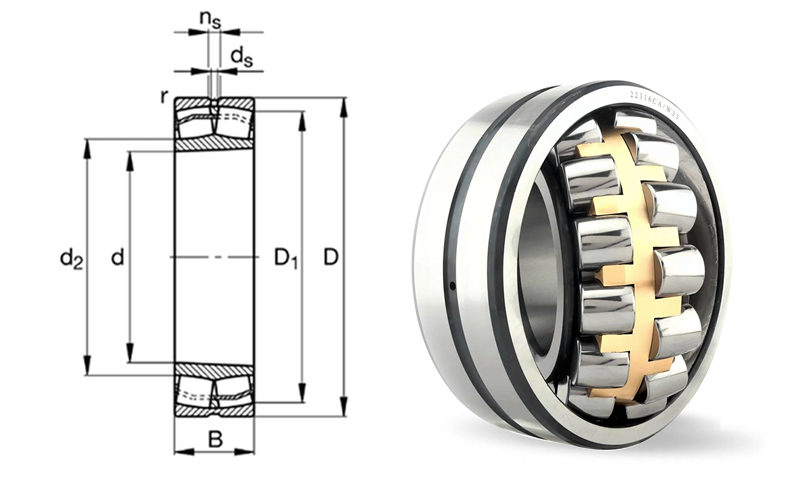

Designation	old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	old model	d	D	B	Dynamic	Static	Grease	Oil	kg
24013	4053113	65	100	35	750	900	4200	3200	0.95
24015	4053115	75	115	40	600	750	4000	3000	1.48
24018	4053118	90	140	50	500	600	3900	2900	2.76
24020	4053120	100	150	50	400	550	3750	2700	3.02
24022	4053122	110	170	60	420	630	3500	2500	5.1
24024	4053124	120	180	60	450	690	3450	2360	5.83
24026	4053126	130	200	69	570	860	3100	2130	8.05
24028	4053128	140	210	69	590	930	2950	1950	8.55
24030	4053130	150	225	75	680	1090	2750	1790	9.39
24032	4053132	160	240	80	770	1240	2550	1660	13.2
24034	4053134	170	260	90	940	1480	2380	1540	17.8
24036	4053136	180	280	100	1130	1770	2200	1420	26.6
24038	4053138	190	290	100	1160	1860	2140	1330	22.9
24040	4053140	200	310	109	1350	2150	2010	1240	31.3
24044	4053144	220	340	118	1620	2600	1830	1090	39.1
24048	4053148	240	360	118	1670	2850	1710	980	41.61
24052	4053152	260	400	140	1800	3000	1600	950	65.2
24056	4053156	280	420	140	2000	3200	1500	900	69
24060	4053160	300	460	160	2200	3500	1300	850	98
24064	4053164	320	480	160	2500	3750	1200	800	106
24068	4053168	340	520	180	2700	3900	1000	750	137
24072	4053172	360	540	180	2900	4000	900	730	148.77
24076	4053176	380	560	180	3000	4250	850	700	153
24080	4053180	400	600	200	3200	4500	800	650	202
24084	4053184	420	620	200	3500	4700	750	630	201
24088	4053188	440	650	212	3750	4800	700	600	245
24092	4053192	460	680	218	4000	5000	650	550	280
24120	4053720	100	165	65	450	750	3350	3350	5.70
24122	4053722	110	180	69	530	750	1600	2000	6.71
24124	4053724	120	200	80	680	950	1400	1800	9.86
24126	4053726	130	210	80	710	1050	1300	1700	10.58
24128	4053728	140	225	85	800	1190	1200	1600	12.80
24130	4053730	150	250	100	1050	1520	1100	1400	19.22
24132	4053732	160	270	109	1220	1800	1000	1300	25.01
24134	4053734	170	280	109	1260	1900	1000	1300	26.22
24136	4053736	180	300	118	1460	2170	900	1200	32.745
24138	4053738	190	320	128	1680	2550	850	1100	41
24140	4053740	200	340	140	1880	2800	800	1000	49.9
24144	4053744	220	370	150	2000	3000	750	950	67
24148	4053748	240	400	160	2200	3200	700	900	82.2
24152	4053752	260	440	180	2500	3500	680	850	114
24156	4053756	280	460	180	2750	3700	630	800	120
24160	4053760	300	500	200	3000	4000	600	750	161
24164	4053764	320	540	218	3200	4500	550	700	247
24168	4053768	340	580	243	3500	4700	500	680	256
24172	4053772	360	600	192	3750	4950	480	630	215
24176	4053776	380	620	243	4000	5000	450	600	295
