Deep groove ball bearing 16000 series

Deep groove ball bearing 16000 series

Deep groove ball bearing 16000 series

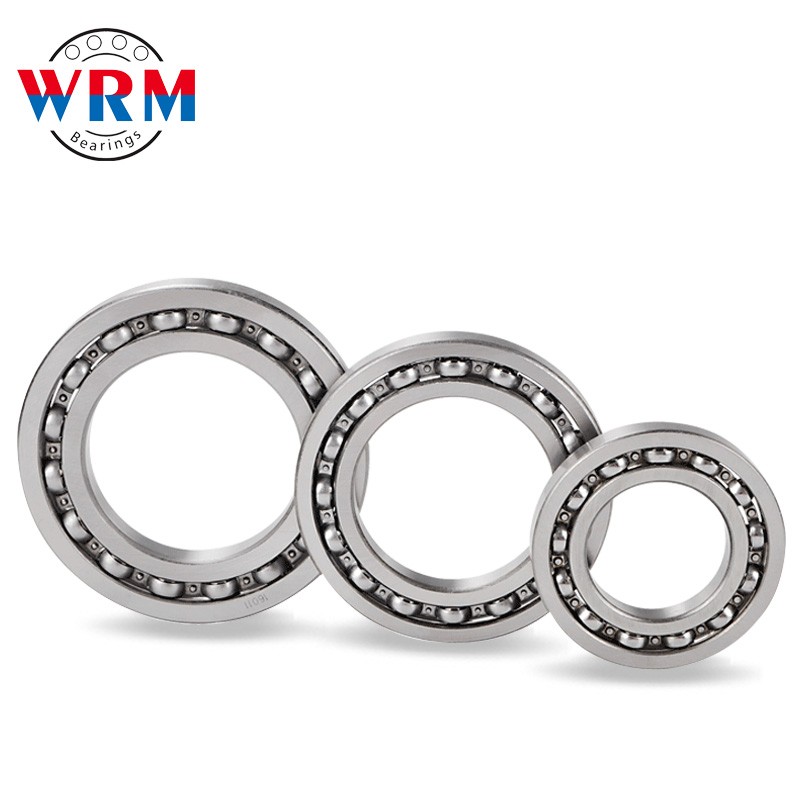

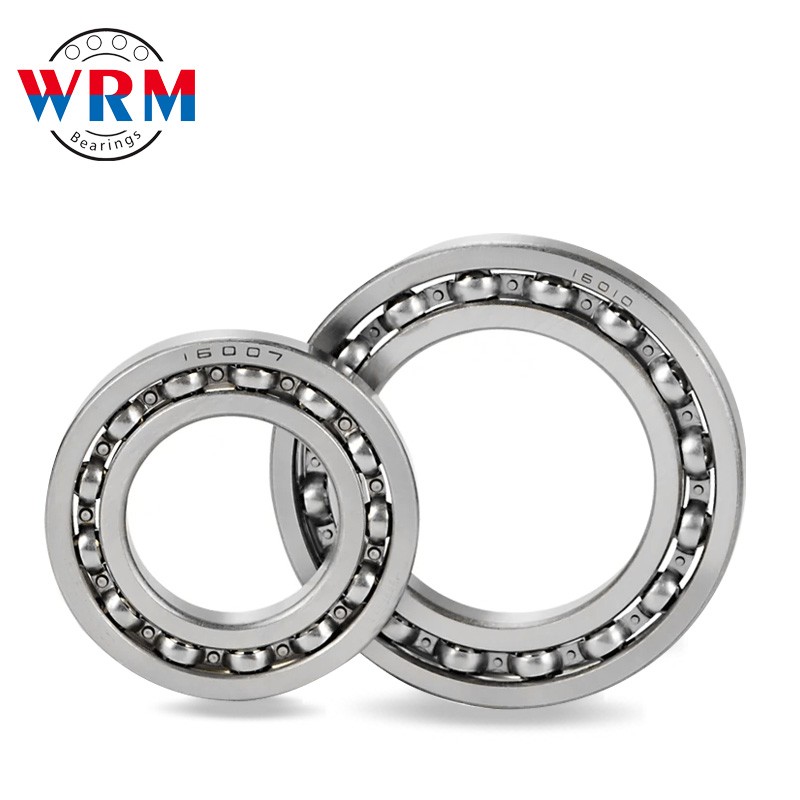

Product name：Deep groove ball bearing
cage:open 2RS ZZ RS1 M 2RS1 2Z Z 2RSR  RSR  DDU
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

deep groove ball bearing3.jpg

Designation	Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
16001	12	28	7	5.1	2.4	20000	26000	0.024
16002	15	32	8	5.6	2.8	19000	24000	0.025
16003	17	35	8	6	3.3	18000	22000	0.032
16004	20	42	8	7.9	4.5	16000	19000	0.05
16005	25	47	8	8.85	5.6	15000	18000	0.06
16006	30	55	9	11.2	7.35	13000	15000	0.085
16007	35	62	9	12.2	8.85	11000	13000	0.11
16008	40	68	9	12.6	9.6	9000	11000	0.125
16009	45	75	10	15.6	12.2	8000	10000	0.155
16010	50	80	10	16.1	13.1	8000	9500	0.166
16011	55	90	11	19.4	16.2	7000	8500	0.207
16012	60	95	11	19.9	17.5	6300	7500	0.224
16013	65	100	11	20.5	18.6	6000	7000	0.241
16014	70	110	13	27.9	25	5600	6700	0.386
16015	75	115	13	28.7	26.8	5300	6300	0.411
16016	80	125	14	33.1	31.4	5000	6000	0.539
16017	85	130	14	34	33.3	4500	5600	0.968
16018	90	140	16	41.5	39.3	4300	5300	0.671
16019	95	145	16	42.7	41.9	4000	5000	0.71
16020	100	150	16	43.8	44.3	3800	4800	0.74
16021	105	160	18	51.8	50.6	3600	4500	1
16022	110	170	19	57.4	56.7	3400	4300	1.27
16024	120	180	19	60.2	62.1	3300	4000	1.374
16026	130	200	22	63.5	66.5	3200	3800	1.868
16028	140	210	22	86.5	75.6	3000	3600	2.53
16030	150	225	24	92.2	98	2800	3400	3.14
16032	160	240	25	99.5	108	2600	3300	3.66
16034	170	260	28	119	129	2500	3200	5.02
16036	180	280	31	138	146	2400	3000	6.51
16038	190	290	31	148	166	2300	2900	6.89
16040	200	310	34	168	190	2200	2750	8.78
16044	220	340	37	174	204	2000	2600	11.5
16048	240	360	37	203	255	1900	2500	14
16052	260	400	44	238	310	1800	2400	22.4
16056	280	420	44	242	335	1700	2300	23.6
16060	300	460	50	286	405	1600	2200	32
16064	320	480	50	281	405	1500	2000	34
16068	340	520	57	345	520	1300	1800	48
16072	360	540	57	351	550	1200	1600	49
16076	380	560	57	377	620	1000	1500	51
16080	400	600	63	389	650	950	1300
16084	420	620	63	420	689	850	1200
16088	440	650	67	450	720	750	1000
16092	460	680	71	480	780	700	900
16096	480	700	71	522	810	650	800

deep groove ball bearing4.jpg

PREVIOUS：Ceramic bearing 6200 series

NEXT：Deep groove ball bearing 6900 series

Tags: Bearing Ball bearing Deep groove ball bearing
