Product name：Tapered roller bearing
clearance：C0 C3 C4
Material:Chrome Steel

INQUIRY

Product Details

Product Tags

Tapered roller bearing.jpg

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight

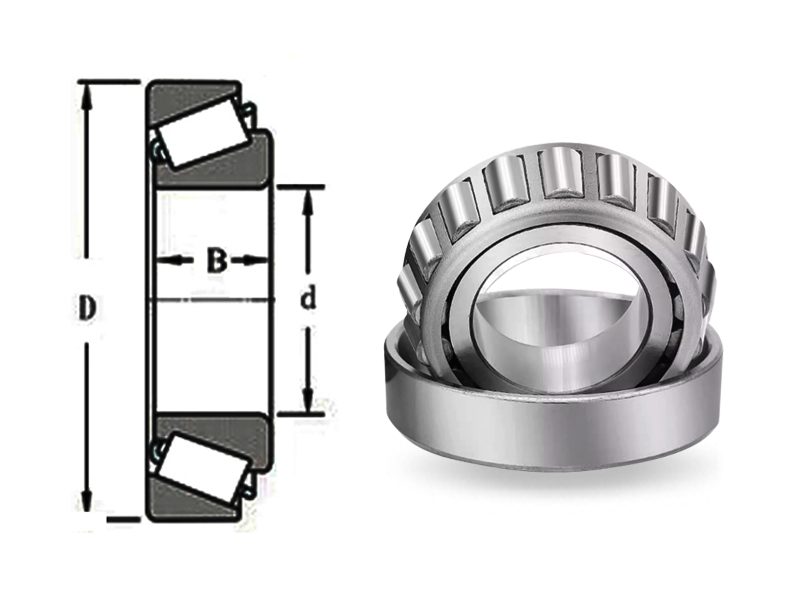

Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
33010	3007110E	50	80	24	76.8	110	4500	5600	0.433
33011	3007111E	55	90	27	94.8	145	4000	5000	0.651
33012	3007112E	60	95	27	96.8	150	3800	4800	0.691
33013	3007113E	65	100	27	98	158	3600	4500	0.732
33014	3007114E	70	110	31	135	220	3400	4300	1.07
33015	3007115E	75	115	31	132	220	3200	4000	1.12
33016	3007116E	80	125	36	182	305	3000	3800	1.63
33017	3007117E	85	130	36	180	305	2800	3600	1.69
33018	3007118E	90	140	39	232	388	2600	3400	2.2
33019	3007119E	95	145	39	230	390	2400	3200	2.26
33020	3007120E	100	150	39	230	390	2200	3000	2.33
33021	3007121E	105	160	43	258	438	2000	2800	2.97
33022	3007122E	110	170	47	288	502	1900	2600	3.74
33024	3007124E	120	180	48	298	535	1700	2200	4.07
33026	3007126E	130	200	55	310	600	1500	2000	6.14
33028	3007128E	140	210	56	370	650	1300	1800	6.57
33030	3007130E	150	225	59	410	700	1200	1600	7.98
